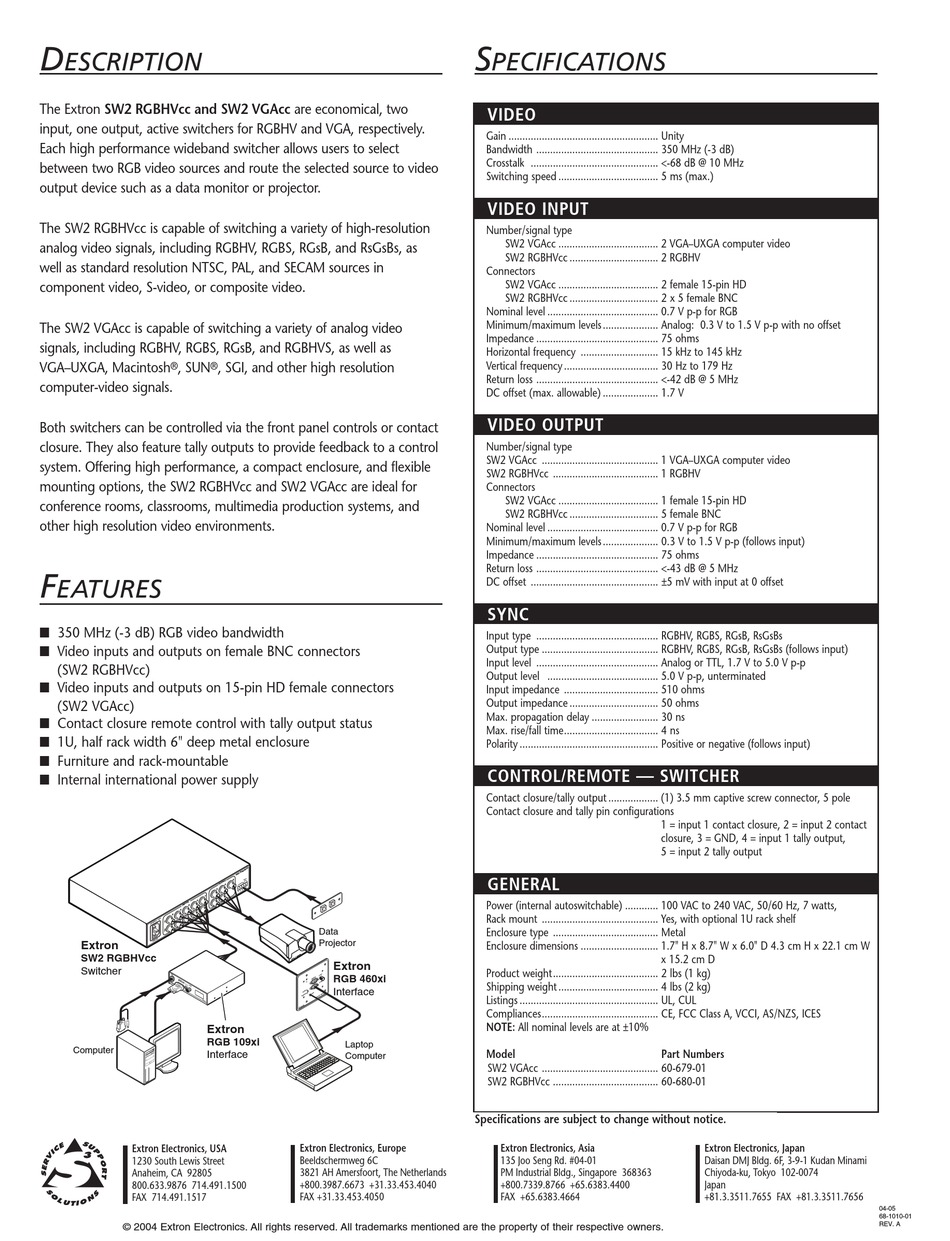

Video Input; Video Output - Extron electronics SW2 RGBHVcc Brochure & Specs

D
ESCRIPTION
The Extron SW2 RGBHVcc and SW2 VGAcc are economical, two
input, one output, active switchers for RGBHV and VGA, respectively.
Each high performance wideband switcher allows users to select
between two RGB video sources and route the selected source to video
output device such as a data monitor or projector.
The SW2 RGBHVcc is capable of switching a variety of high-resolution
analog video signals, including RGBHV, RGBS, RGsB, and RsGsBs, as
well as standard resolution NTSC, PAL, and SECAM sources in
component video, S-video, or composite video.
The SW2 VGAcc is capable of switching a variety of analog video
signals, including RGBHV, RGBS, RGsB, and RGBHVS, as well as
VGA–UXGA, Macintosh ® , SUN ® , SGI, and other high resolution
computer-video signals.
Both switchers can be controlled via the front panel controls or contact
closure. They also feature tally outputs to provide feedback to a control
system. Offering high performance, a compact enclosure, and flexible
mounting options, the SW2 RGBHVcc and SW2 VGAcc are ideal for
conference rooms, classrooms, multimedia production systems, and
other high resolution video environments.
F
EATURES
350 MHz (-3 dB) RGB video bandwidth
Video inputs and outputs on female BNC connectors
(SW2 RGBHVcc)
Video inputs and outputs on 15-pin HD female connectors
(SW2 VGAcc)
Contact closure remote control with tally output status
1U, half rack width 6" deep metal enclosure
SW2 RGBHVcc dia.eps
Furniture and rack-mountable
Internal international power supply
R
V
H
H
U T S
V
IN P
B
H
G
B
R
G
0. 2A
0V 1
0- 24 R
10
2
H z
/6 0
Extron 50
SW2 RGBHVcc
Switcher
INP
UT
BU
MO FFE
NIT RE D LO
OR OU CA
TP UT L
H.
SH IFT
RG
B 109
xi
Extron
RGB 109xi
Computer
Interface
Extron Electronics, USA
1230 South Lewis Street
Anaheim, CA 92805
800.633.9876 714.491.1500
FAX 714.491.1517
© 2004 Extron Electronics. All rights reserved. All trademarks mentioned are the property of their respective owners.
c c
H V
G B
2 R
S W
LL Y
B TA
U T T
OU
T P T
O U NT AC
G CO
2
1
2
1
V
Data
Projector
Extron
SH IFT RGB 460xi
H.
R
TO
MO NI
X
/MA
MIN
T
IN PU
Interface
OR
MO NIT TM
DIO SP
OR AU TH AD
MO NIT WI
NO 46 0
B
RG
Laptop
Computer
Extron Electronics, Europe
Beeldschermweg 6C
3821 AH Amersfoort, The Netherlands
+800.3987.6673 +31.33.453.4040
FAX +31.33.453.4050
S
PECIFICATIONS
VIDEO
Gain ...................................................... Unity
Bandwidth ............................................ 350 MHz (-3 dB)
Crosstalk .............................................. <-68 dB @ 10 MHz
Switching speed .................................... 5 ms (max.)

VIDEO INPUT

Number/signal type
SW2 VGAcc .................................... 2 VGA–UXGA computer video
SW2 RGBHVcc ................................ 2 RGBHV
Connectors
SW2 VGAcc .................................... 2 female 15-pin HD
SW2 RGBHVcc ................................ 2 x 5 female BNC
Nominal level ........................................ 0.7 V p-p for RGB
Minimum/maximum levels .................... Analog: 0.3 V to 1.5 V p-p with no offset
Impedance ............................................ 75 ohms
Horizontal frequency ............................ 15 kHz to 145 kHz
Vertical frequency .................................. 30 Hz to 179 Hz
Return loss ............................................ <-42 dB @ 5 MHz
DC offset (max. allowable) .................... 1.7 V

VIDEO OUTPUT

Number/signal type
SW2 VGAcc .......................................... 1 VGA–UXGA computer video
SW2 RGBHVcc ...................................... 1 RGBHV
Connectors
SW2 VGAcc .................................... 1 female 15-pin HD
SW2 RGBHVcc ................................ 5 female BNC
Nominal level ........................................ 0.7 V p-p for RGB
Minimum/maximum levels .................... 0.3 V to 1.5 V p-p (follows input)
Impedance ............................................ 75 ohms
Return loss ............................................ <-43 dB @ 5 MHz
DC offset .............................................. ±5 mV with input at 0 offset
SYNC
Input type ............................................ RGBHV, RGBS, RGsB, RsGsBs
Output type .......................................... RGBHV, RGBS, RGsB, RsGsBs (follows input)
Input level ............................................ Analog or TTL, 1.7 V to 5.0 V p-p
Output level ........................................ 5.0 V p-p, unterminated
Input impedance .................................. 510 ohms
Output impedance ................................ 50 ohms
Max. propagation delay ........................ 30 ns
Max. rise/fall time.................................. 4 ns
Polarity .................................................. Positive or negative (follows input)
CONTROL/REMOTE — SWITCHER
Contact closure/tally output .................. (1) 3.5 mm captive screw connector, 5 pole
Contact closure and tally pin configurations
GENERAL
Power (internal autoswitchable) ............ 100 VAC to 240 VAC, 50/60 Hz, 7 watts,
Rack mount .......................................... Yes, with optional 1U rack shelf
Enclosure type ...................................... Metal
Enclosure dimensions ............................ 1.7" H x 8.7" W x 6.0" D 4.3 cm H x 22.1 cm W
Product weight...................................... 2 lbs (1 kg)
Shipping weight .................................... 4 lbs (2 kg)
Listings .................................................. UL, CUL
Compliances.......................................... CE, FCC Class A, VCCI, AS/NZS, ICES
NOTE: All nominal levels are at ±10%
Model
SW2 VGAcc .......................................... 60-679-01
SW2 RGBHVcc ...................................... 60-680-01
Specifications are subject to change without notice.
Extron Electronics, Asia
135 Joo Seng Rd. #04-01
PM Industrial Bldg., Singapore 368363
+800.7339.8766 +65.6383.4400
FAX +65.6383.4664
1 = input 1 contact closure, 2 = input 2 contact
closure, 3 = GND, 4 = input 1 tally output,
5 = input 2 tally output
x 15.2 cm D
Part Numbers
Extron Electronics, Japan
Daisan DMJ Bldg. 6F, 3-9-1 Kudan Minami
Chiyoda-ku, Tokyo 102-0074
Japan
+81.3.3511.7655 FAX +81.3.3511.7656
04-05
68-1010-01
REV. A
