Extron electronics RG59-3MHR-3 Specifications

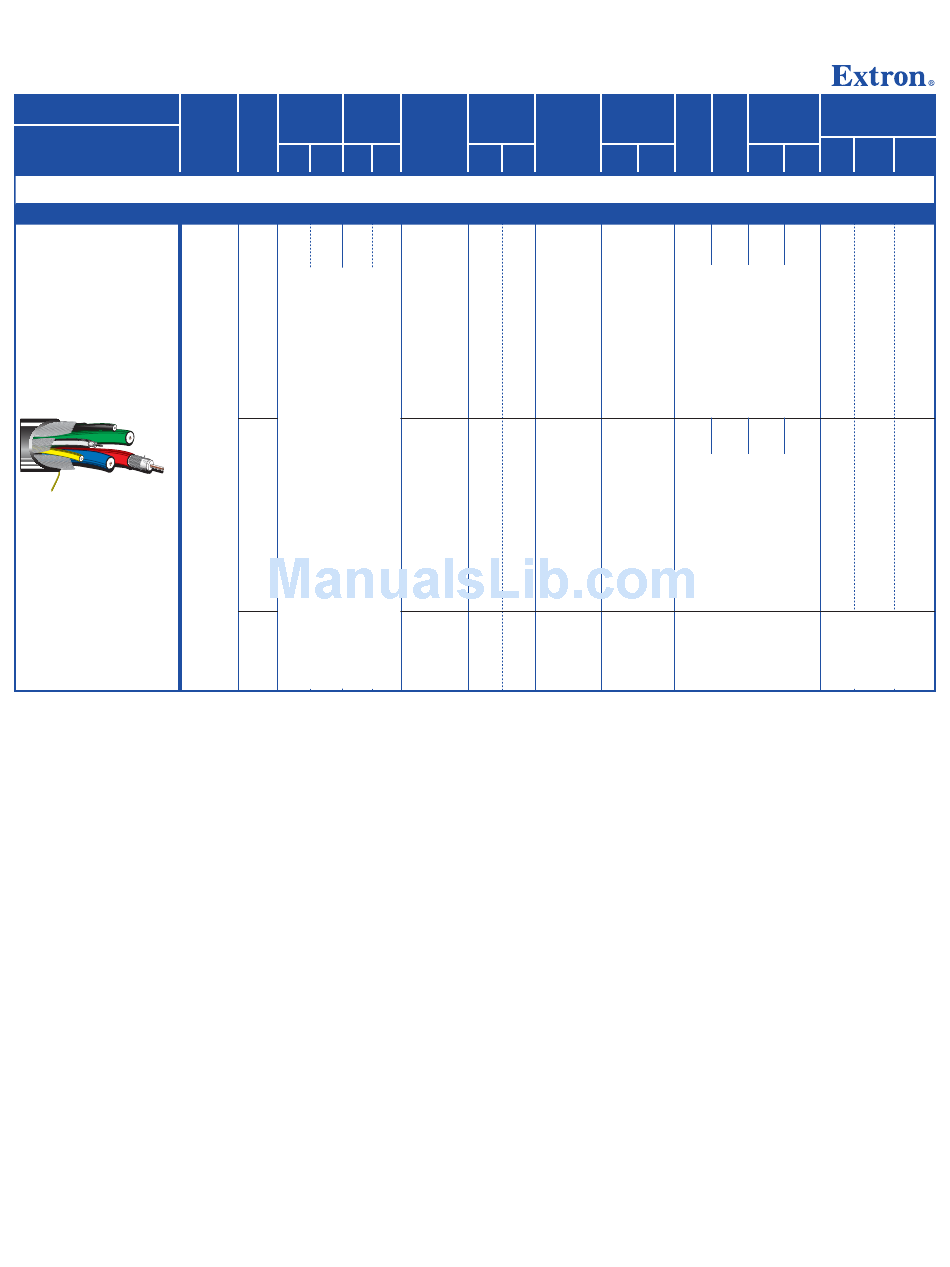

Specifications — RG59-3MHR-3 Cable Specifications — RG59-3MHR-3 Cable
Description
UL NEC/
C(UL) CEC
Part No. (length)
UL AWM
Model
(3) 20 AWG Coax + (3) 26 AWG Miniature Coax • Aluminum Foil (100%) + Tinned Copper Braid Shield
Nonplenum Cable • Gas-injected Foamed Polyolefin Insulation • PVC Inner Jackets • Gray PVC Outer Jacket
22-124-02 (500')
RG59-3MHR-3
NEC CM
UL 1581
CSA FT4
Min. bend radius: 6.5"
Standard Shipping
No.
Lengths Weights
of
Cond.
Ft. m Lbs. kg
Temp.
3 500 152.4 112 50.8
coax
3
coax
75 °C
Conductor Nominal Shielding
Core OD
Materials
(stranding)
(% coverage)
Diameter
Nom. DCR
Inch mm
Nom. DCR
20 AWG 0.147 3.73 Alum. Foil
(solid) (100%)
0.032"
Tinned Cu
0.81 mm,
Braid (95%)
Solid Cu
3 ohms/
10.3 ohms/ 1k ft,
1k ft, 9.8 ohms/
34 ohms 1 km
1 km
26 AWG
0.076 1.93 Alum. Foil
(7/34)
(100%)
0.019"
Tinned Cu
0.48 mm,
Braid (95%)
Tinned Cu
12.2 ohms/
41 ohms/
1k ft,
1k ft,
40.0 ohms/
135 ohms
1 km
1 km
Nominal Nominal
Nom.
Nom.
OD Capacitance
Vel.
Imp.
of
(ohms)
Prop.
Inch mm pF/ft pF/m
Single: 75 83% 17.3
0.236 5.99
red, green, blue
Sweep tested 5 MHz to 1 GHz.
Single: 75 83% 18
0.107 2.72
black, yellow, white
Sweep tested 5 MHz to 1 GHz.
Overall:
0.625 15.9
gray
Nominal
Attenuation
dB/ dB/
MHz
100 ft 100 m
56.8 1 -0.3 -1.0
5 -0.6 -2.0
10 -1.0 -3.3
20 -1.2 -3.9
50 -1.3 -4.2
71 -2.2 -7.2
100 -2.5 -8.3
135 -3.2 -10.5
180 -3.3 -10.8
200 -3.5 -11.4
270 -4.5 -14.8
400 -5.4 -17.5
750 -7.3 -23.9
1000 -9.4 -30.8
3000 -19.4 -56.9
59 1 -0.5 -1.7
5 -1.2 -3.9
10 -1.7 -5.5
20 -2.4 -7.8
50 -3.8 -12.3
71 -4.5 -14.8
100 -5.4 -17.6
135 -6.3 -20.6
180 -7.3 -23.9
200 -7.7 -25.4
270 -9.1 -29.9
400 -11.5 -37.3
750 -16.4 -53.8
1000 -19.5 -64.0
3000 -43.6 -143.0
