CVEQ 100 D
SVEQ 100 D
video and audio line drivers with
gain and equalization - decora
CVEQ 100 D

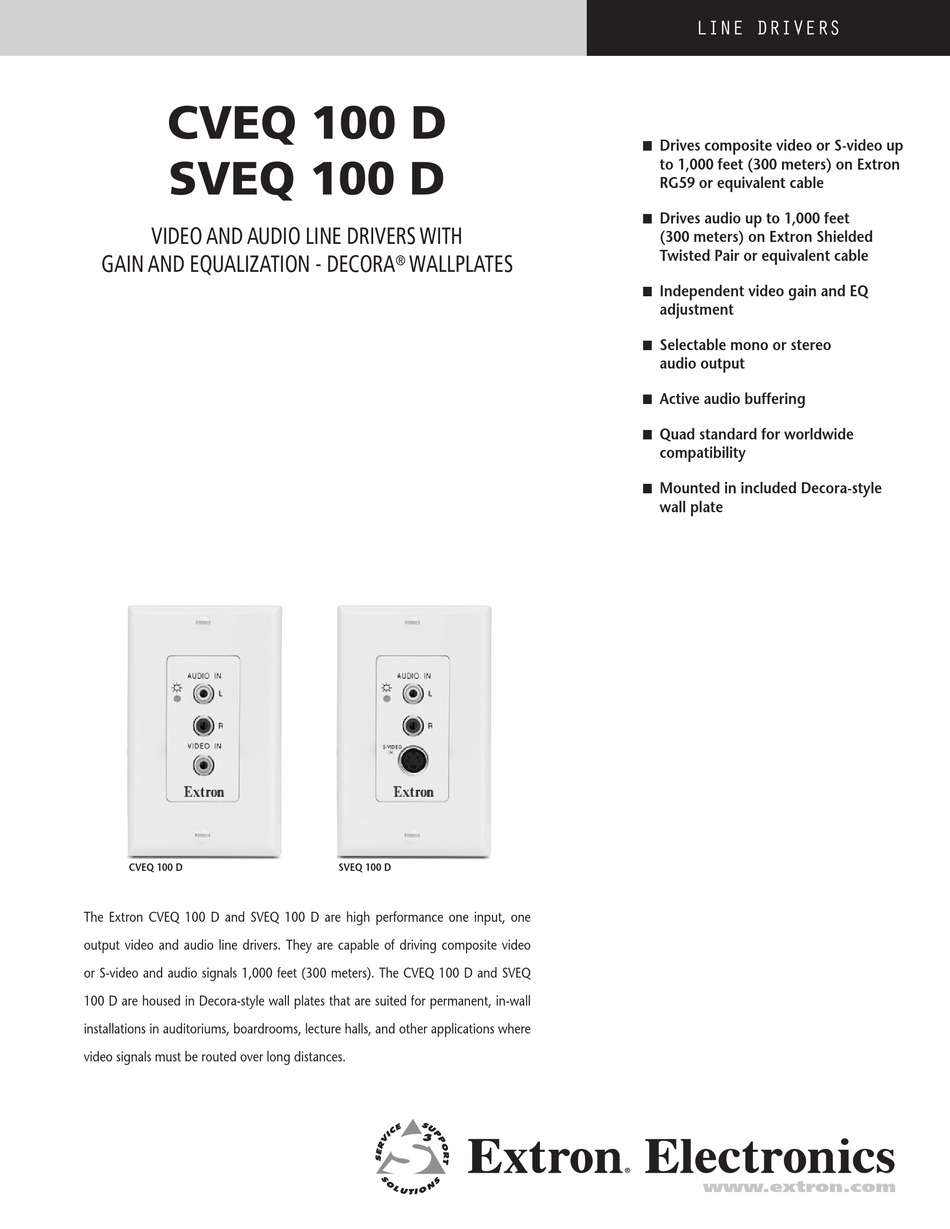

The Extron CVEQ 100 D and SVEQ 100 D are high performance one input, one
output video and audio line drivers. They are capable of driving composite video
or S-video and audio signals 1,000 feet (300 meters). The CVEQ 100 D and SVEQ
100 D are housed in Decora-style wall plates that are suited for permanent, in-wall
installations in auditoriums, boardrooms, lecture halls, and other applications where
video signals must be routed over long distances.
wallplates
®
SVEQ 100 D
Line Drivers
Drives composite video or S-video up
n
to 1,000 feet (300 meters) on Extron
RG59 or equivalent cable
Drives audio up to 1,000 feet
n
(300 meters) on Extron Shielded
Twisted Pair or equivalent cable
Independent video gain and EQ
n
adjustment
Selectable mono or stereo
n
audio output
Active audio buffering
n
Quad standard for worldwide
n
compatibility
Mounted in included Decora-style
n
wall plate
www.extron.com
Advertisement
Related Manuals for Extron electronics Video and Audio Line Drivers with Gain and EquaLization CVEQ 100 D
Summary of Contents for Extron electronics Video and Audio Line Drivers with Gain and EquaLization CVEQ 100 D
- Page 1 CVEQ 100 D SVEQ 100 D video and audio line drivers with gain and equalization - decora CVEQ 100 D The Extron CVEQ 100 D and SVEQ 100 D are high performance one input, one output video and audio line drivers. They are capable of driving composite video or S-video and audio signals 1,000 feet (300 meters).
-
Page 2: Application Diagrams
DesCrIPtION The CVEQ 100 D and SVEQ 100 D are one input, one output, high-performance line drivers for composite video and S-video, respectively, and stereo audio. They are ideal for permanent, in-wall installations in auditoriums, boardrooms, lecture halls, and other applications where video signals must be routed over long distances. -
Page 3: Specifications
sPeCIFICatIONs Video Gain ... Composite video and Y of S-video: -1 dB to +3 dB (x0.9 to x1.4), adjustable C of S-video: 0dB to +10 dB (x1 to x3), adjustable Equalization ... 0 dB to +7 dB (x1 to x2) at 5 MHz, adjustable Bandwidth (Y of S-video) ... - Page 4 PaNel DrawINgs CVEQ 100 D - Front SVEQ 100 D - Front Extron Electronics, USA 1230 South Lewis Street Anaheim, CA 92805 800.633.9876 714.491.1500 FAX 714.491.1517 © 2007 Extron Electronics. All rights reserved. All trademarks mentioned are the property of their respective owners. AUDIO IN VIDEO IN CVEQ 100 D - Back...
