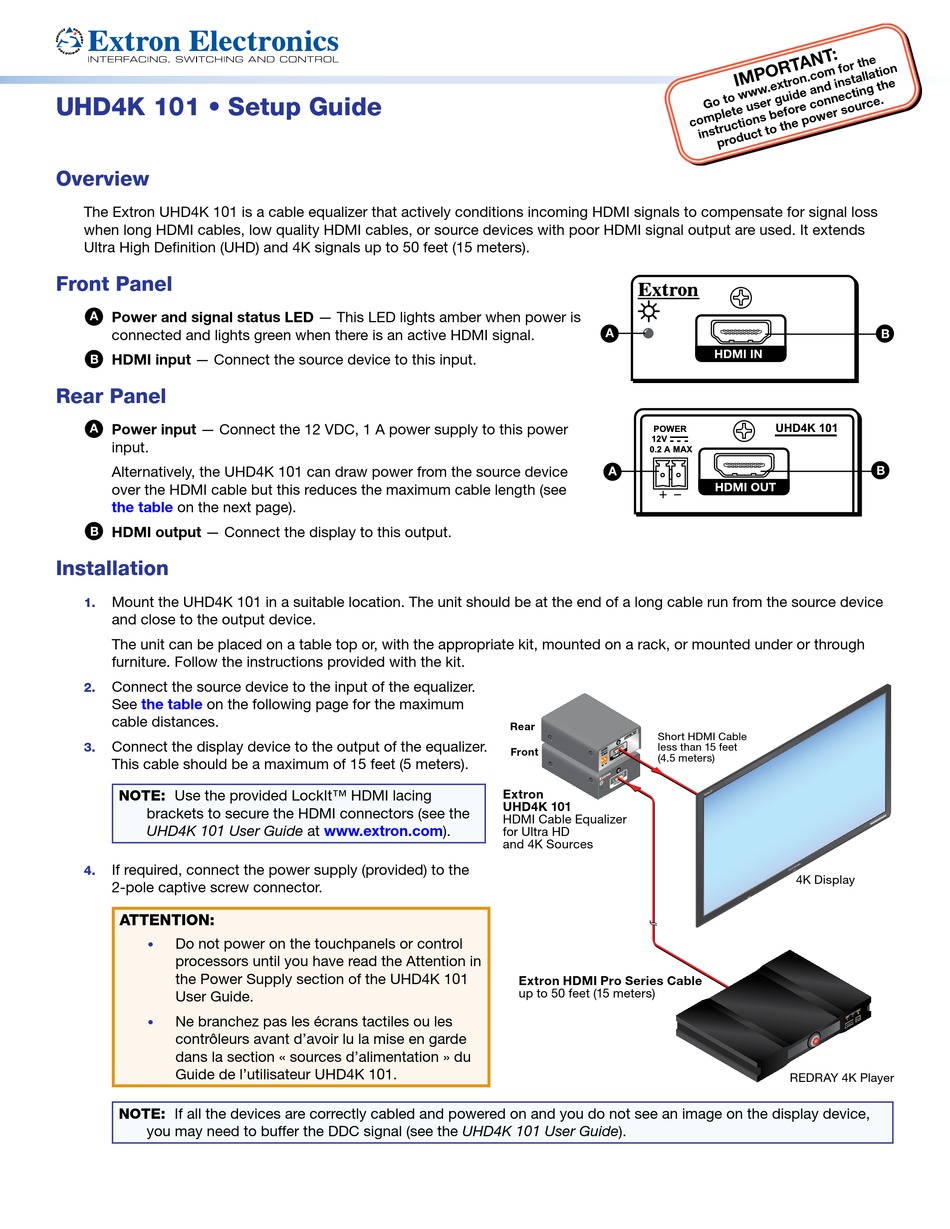

UHD4K 101 • Setup Guide
Overview
The Extron UHD4K 101 is a cable equalizer that actively conditions incoming HDMI signals to compensate for signal loss
when long HDMI cables, low quality HDMI cables, or source devices with poor HDMI signal output are used. It extends
Ultra High Definition (UHD) and 4K signals up to 50 feet (15 meters).
Front Panel
A
Power and signal status LED — This LED lights amber when power is
connected and lights green when there is an active HDMI signal.
B
HDMI input — Connect the source device to this input.
Rear Panel
A
Power input — Connect the 12 VDC, 1 A power supply to this power
input.
Alternatively, the UHD4K 101 can draw power from the source device
over the HDMI cable but this reduces the maximum cable length (see
the table
on the next page).
B
HDMI output — Connect the display to this output.
Installation
Mount the UHD4K 101 in a suitable location. The unit should be at the end of a long cable run from the source device
1.
and close to the output device.
The unit can be placed on a table top or, with the appropriate kit, mounted on a rack, or mounted under or through
furniture. Follow the instructions provided with the kit.
Connect the source device to the input of the equalizer.
2.
See
the table
on the following page for the maximum
cable distances.
Connect the display device to the output of the equalizer.
3.
This cable should be a maximum of 15 feet (5 meters).
NOTE: Use the provided LockIt™ HDMI lacing
brackets to secure the HDMI connectors (see the
UHD4K 101 User Guide at www.extron.com).
If required, connect the power supply (provided) to the
4.
2-pole captive screw connector.
ATTENTION:
Do not power on the touchpanels or control
•
processors until you have read the Attention in
the Power Supply section of the UHD4K 101
User Guide.
Ne branchez pas les écrans tactiles ou les
•
contrôleurs avant d'avoir lu la mise en garde
dans la section « sources d'alimentation » du
Guide de l'utilisateur UHD4K 101.
NOTE: If all the devices are correctly cabled and powered on and you do not see an image on the display device,
you may need to buffer the DDC signal (see the UHD4K 101 User Guide).
A A
POWER
12V
0.2 A MAX
A A
Rear
Short HDMI Cable
1
1 0
D 4
K
U H
less than 15 feet
Front
W E
R
P O
T
O U
(4.5 meters)
V
X
1 2
M A
M I
-- A
H D
IN
M I
H D
Extron
UHD4K 101
HDMI Cable Equalizer
for Ultra HD
and 4K Sources
Extron HDMI Pro Series Cable
up to 50 feet (15 meters)
B B
HDMI IN
UHD4K 101
B B
HDMI OUT
L 80
D E
M O
4K Display
US
AT
ST
PL
AY
R
WE
PO
B
US
RD
SD
CA
REDRAY 4K Player
