DVI 101 • User Guide

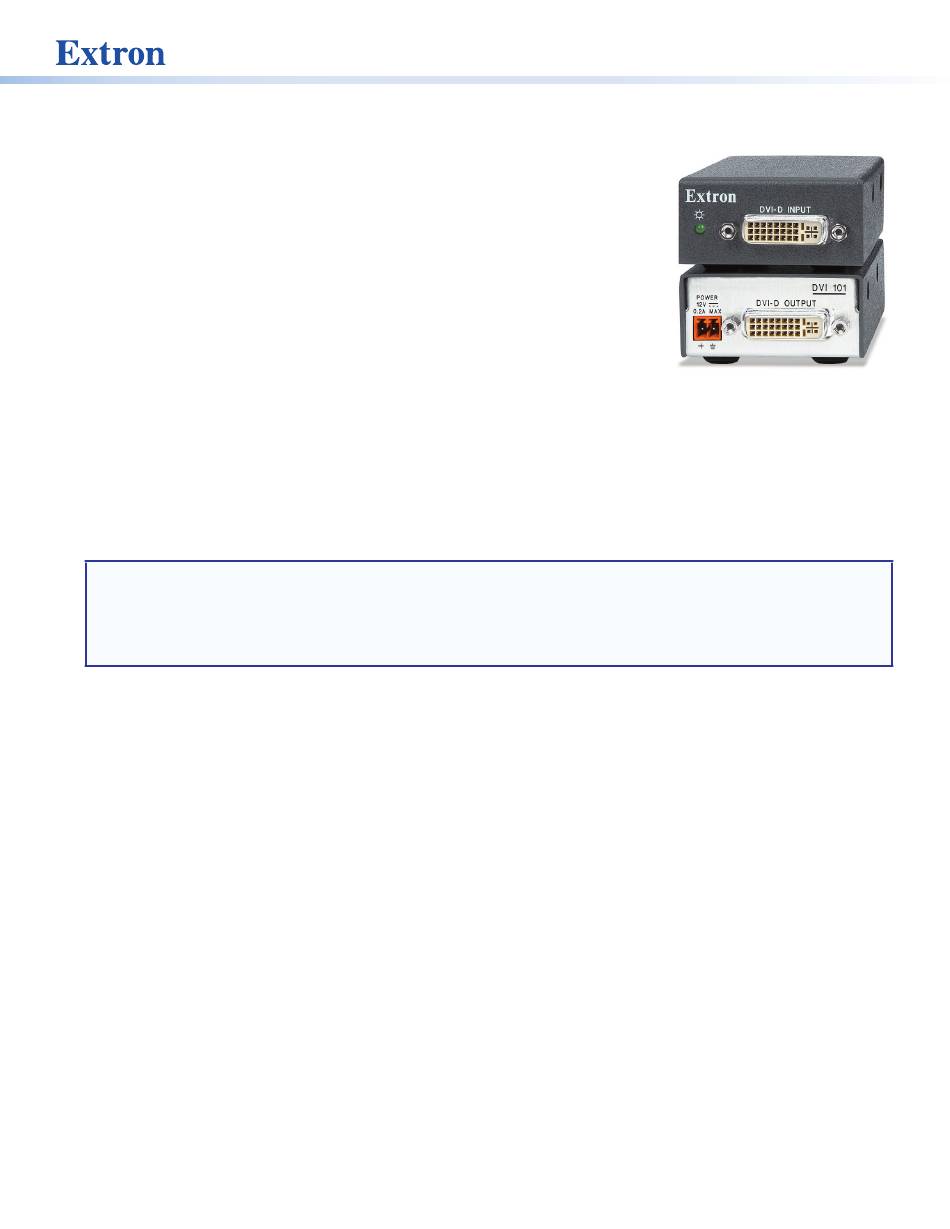

The Extron DVI 101 is a compact, economical cable equalizer that extends Digital Visual
Interface (DVI) signals beyond the specified cable limits of 15 feet (5 m).
The DVI 101 attaches to the end of a long cable run of up to 200 feet (61 m). It
automatically provides active equalization to ensure optimal image quality with HDTV
1080p and high resolution computer video signals up to 1920x1200. The DVI 101 is ideal
for both temporary applications and permanent installations with long DVI cable runs.
The DVI 101 passes EDID information and supports the long distance transmission of
HDTV signals with HDCP for copy protection of digital television broadcasts and high
resolution digital video output from DVD and Blu-rayDisc™ players.
With appropriate adapters, the DVI 101 is fully compatible with the DVI digital video, audio,
and control standard for audio and video products.
At shorter distances, the DVI 101 can be powered by the source device via the DVI cable, eliminating the external power supply
(see figure 4 on page 3 for the recommended maximum cable lengths).

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause interference. This interference must be corrected at the expense of the user.
NOTES:
• This unit was tested with shielded
compliance with FCC emissions limits.
• For more information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related
topics, see the

Specifications

Product specifications are available on the Extron website, www.extron.com.

Features

• Extends DVI signals over DVI cable up to 200 feet (60 meters) — Supports up to 250 feet at 1024x768 or 1080i/60 and
200 feet at 1920x1200 or 1080p/60.
• Input: Single link DVI-I connector
Output: Single link DVI-I connector
•
• Supports computer video up to 1920x1200, including HDTV 1080p/60 and 2K
• Single link DVI compatible — Supports data rates up to 4.95 Gbps (1.65 Gbps per color).
• HDCP compliant
Automatic input cable equalization — Actively conditions incoming DVI signals to compensate for signal loss when using
•
long DVI cables, low quality DVI cables, and source devices with poor DVI signal output.
• Powered by source device at distances up to 125 feet (38 meters) — Can be powered by the DVI port on the attached
source device, eliminating the need for power supply installation.
LED indicator for source signal presence and power — Indicator illuminates amber when power is detected and green
•
when a signal is present.
• Supports DDC transmission — Facilitates EDID communication and HDCP key exchange between the display and source.
• Compatible with HDMI signals when used with optional Extron HDMI-DVI adapters — Supports HDMI embedded audio
and CEC - Consumer Electronics Control signal transmission.
• External Extron Everlast™ power supply included — Provides worldwide power compatibility with high-demonstrated
reliability and low power consumption
• • Extron Everlast Power Supply is covered by a 7-year parts and labor warranty
I/O c
ables on the peripheral devices. Shielded cables must be used to ensure
Extron Safety and Regulatory Compliance Guide on the Extron website.
