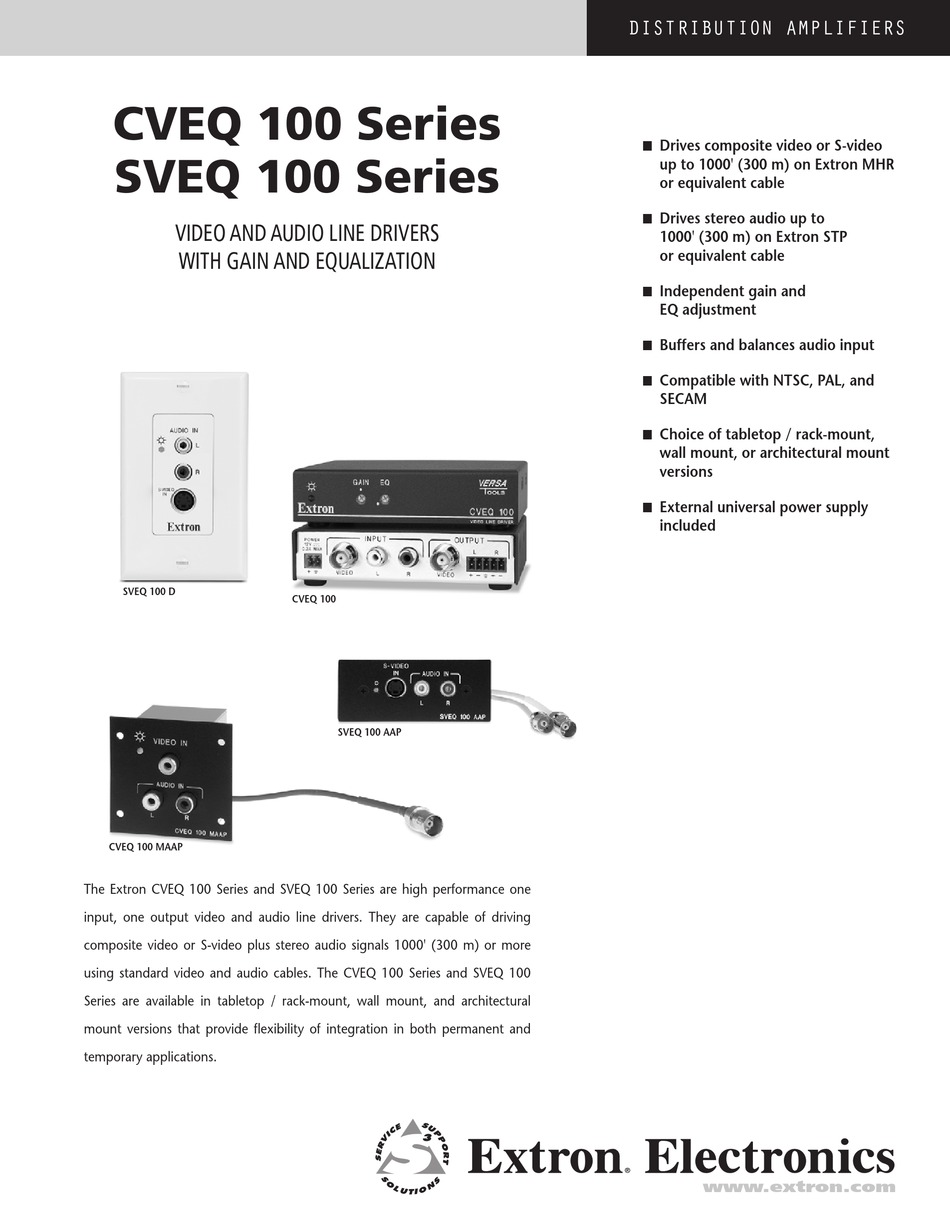

Extron electronics Video and Audio Line Drivers with Gain and EquaLization CVEQ 100 MAAP Specification

CVEQ 100 Series
SVEQ 100 Series
Video and audio line driVers
with gain and equalization
SVEQ 100 D
CVEQ 100 MAAP
The Extron CVEQ 100 Series and SVEQ 100 Series are high performance one
input, one output video and audio line drivers. They are capable of driving
composite video or S-video plus stereo audio signals 1000' (300 m) or more
using standard video and audio cables. The CVEQ 100 Series and SVEQ 100
Series are available in tabletop / rack-mount, wall mount, and architectural
mount versions that provide flexibility of integration in both permanent and
temporary applications.

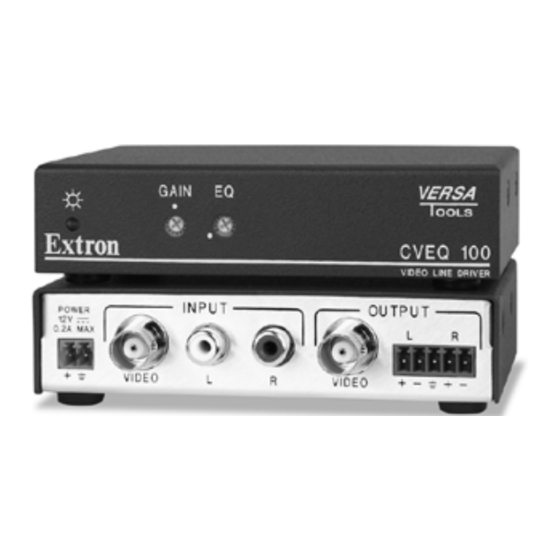

CVEQ 100
SVEQ 100 AAP
Distribution Amplifiers
Drives composite video or S-video
n
up to 1000' (300 m) on Extron MHR
or equivalent cable
Drives stereo audio up to
n
1000' (300 m) on Extron STP
or equivalent cable
Independent gain and
n
EQ adjustment
Buffers and balances audio input
n
Compatible with NTSC, PAL, and
n
SECAM
Choice of tabletop / rack-mount,
n
wall mount, or architectural mount
versions
External universal power supply
n
included
www.extron.com
