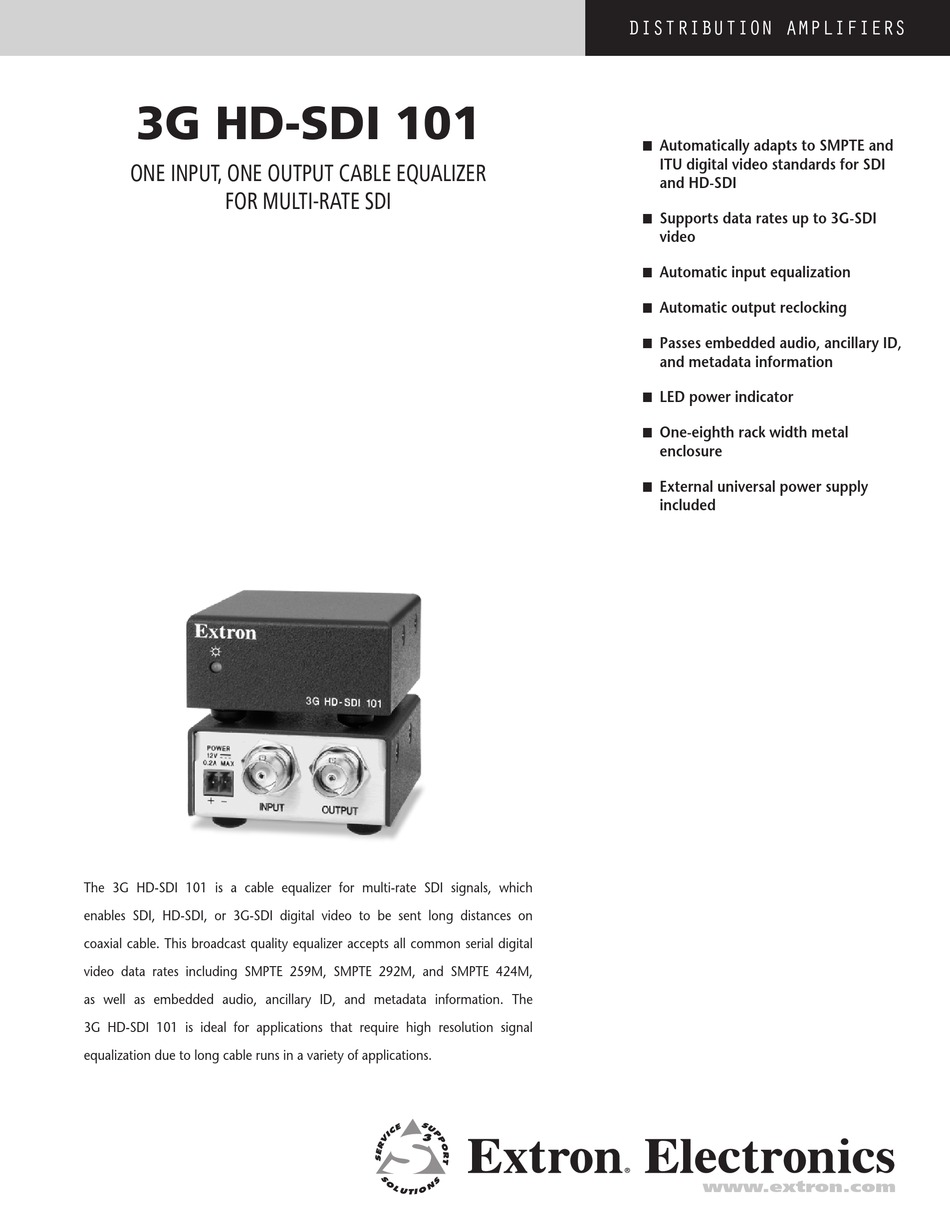

Extron electronics 3G HD-SDI 101 Specifications

3G HD-SDI 101
One input, One Output cable equalizer
fOr multi-rate sdi
The 3G HD-SDI 101 is a cable equalizer for multi-rate SDI signals, which
enables SDI, HD-SDI, or 3G-SDI digital video to be sent long distances on
coaxial cable. This broadcast quality equalizer accepts all common serial digital
video data rates including SMPTE 259M, SMPTE 292M, and SMPTE 424M,
as well as embedded audio, ancillary ID, and metadata information. The
3G HD-SDI 101 is ideal for applications that require high resolution signal
equalization due to long cable runs in a variety of applications.
Distribution amplifiers
Automatically adapts to SMPTE and
n
ITU digital video standards for SDI
and HD-SDI
Supports data rates up to 3G-SDI
n
video
Automatic input equalization
n
Automatic output reclocking
n
Passes embedded audio, ancillary ID,
n
and metadata information
LED power indicator
n
One-eighth rack width metal
n
enclosure
External universal power supply
n
included
