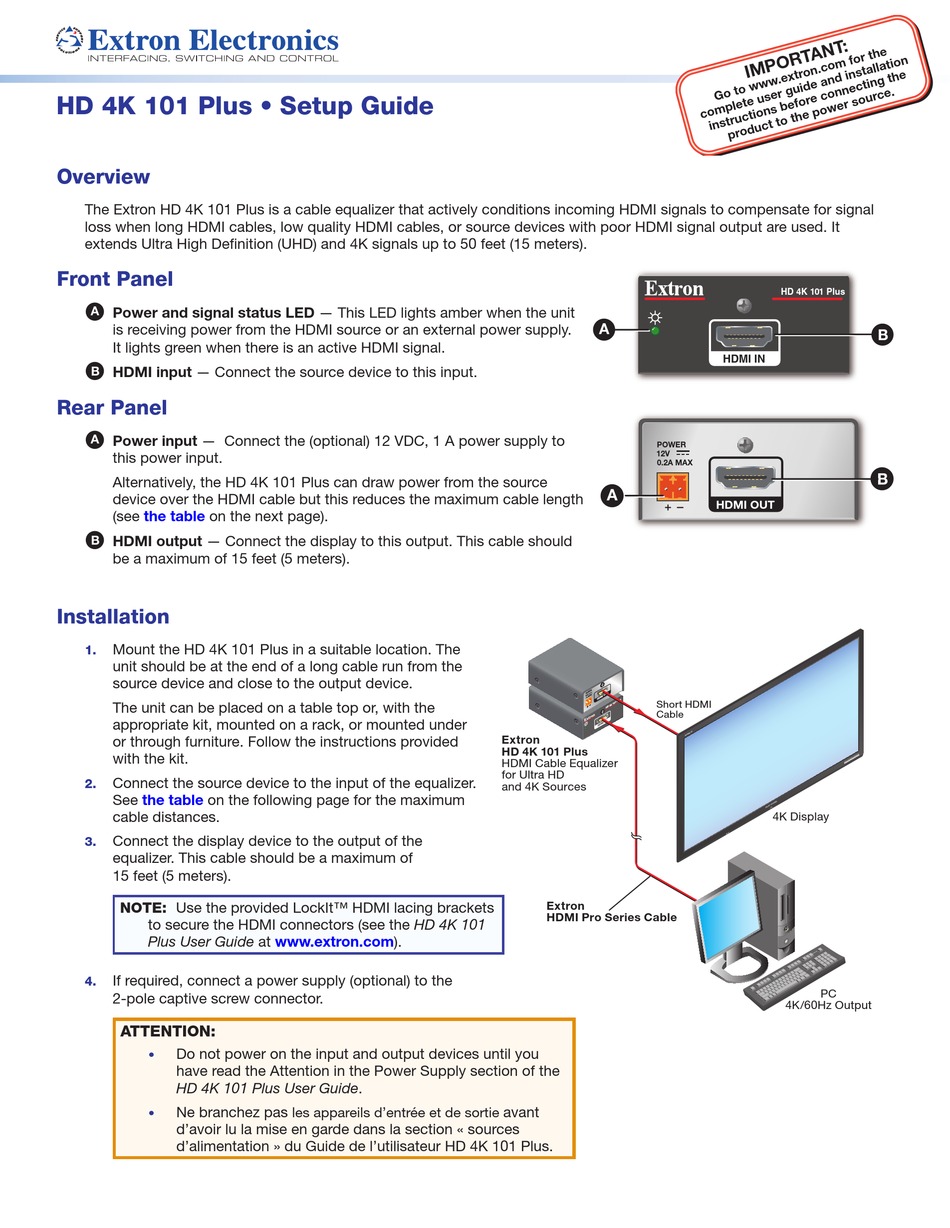

HD 4K 101 Plus • Setup Guide

Overview

The Extron HD 4K 101 Plus is a cable equalizer that actively conditions incoming HDMI signals to compensate for signal
loss when long HDMI cables, low quality HDMI cables, or source devices with poor HDMI signal output are used. It
extends Ultra High Definition (UHD) and 4K signals up to 50 feet (15 meters).

Front Panel

A
Power and signal status LED — This LED lights amber when the unit
is receiving power from the HDMI source or an external power supply.
It lights green when there is an active HDMI signal.
B
HDMI input — Connect the source device to this input.

Rear Panel

A
Power input — Connect the (optional) 12 VDC, 1 A power supply to
this power input.
Alternatively, the HD 4K 101 Plus can draw power from the source
device over the HDMI cable but this reduces the maximum cable length
(see the table on the next page).
B HDMI output — Connect the display to this output. This cable should
be a maximum of 15 feet (5 meters).

Installation

Mount the HD 4K 101 Plus in a suitable location. The
1.
unit should be at the end of a long cable run from the
source device and close to the output device.
The unit can be placed on a table top or, with the
appropriate kit, mounted on a rack, or mounted under
or through furniture. Follow the instructions provided
with the kit.
Connect the source device to the input of the equalizer.
2.
See the table on the following page for the maximum
cable distances.
Connect the display device to the output of the
3.
equalizer. This cable should be a maximum of
15 feet (5 meters).
NOTE: Use the provided LockIt™ HDMI lacing brackets
to secure the HDMI connectors (see the HD 4K 101
Plus User Guide at www.extron.com).
If required, connect a power supply (optional) to the
4.
2-pole captive screw connector.
ATTENTION:
Do not power on the input and output devices until you
•
have read the Attention in the Power Supply section of the
HD 4K 101 Plus User Guide.
Ne branchez pas
•
d'avoir lu la mise en garde dans la section « sources
d'alimentation » du Guide de l'utilisateur HD 4K 101 Plus.
les appareils d'entrée et de sortie
A
POWER
12V
0.2A MAX
A
W E R
P O T
O U
1 2 V X
M A M I
-- A
H D
lu s Short HDMI
1 P
1 0
4 K
H D
Cable
IN
M I
H D
Extron
HD 4K 101 Plus
HDMI Cable Equalizer
for Ultra HD
and 4K Sources
Extron
HDMI Pro Series Cable
avant
HD 4K 101 Plus
HDMI IN
HDMI OUT
L 80
D E
M O
4K Display
PC
4K/60Hz Output
B
B
