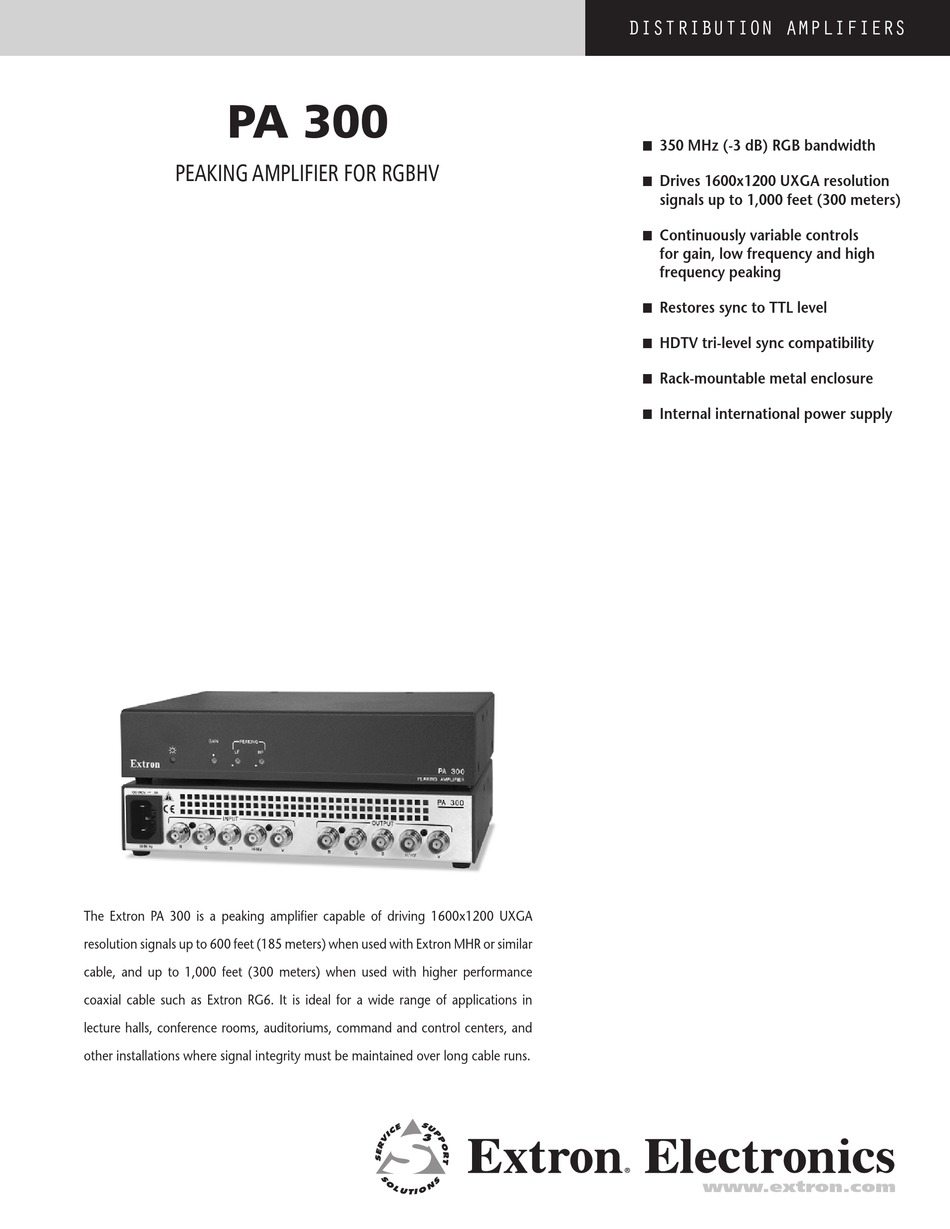

PA 300
Peaking amPlifier for rgBHV
The Extron PA 300 is a peaking amplifier capable of driving 1600x1200 UXGA
resolution signals up to 600 feet (185 meters) when used with Extron MHR or similar
cable, and up to 1,000 feet (300 meters) when used with higher performance
coaxial cable such as Extron RG6. It is ideal for a wide range of applications in
lecture halls, conference rooms, auditoriums, command and control centers, and
other installations where signal integrity must be maintained over long cable runs.
Distribution Amplifiers
350 MHz (-3 dB) RGB bandwidth
n
Drives 1600x1200 UXGA resolution
n
signals up to 1,000 feet (300 meters)
Continuously variable controls
n
for gain, low frequency and high
frequency peaking
Restores sync to TTL level
n
HDTV tri-level sync compatibility
n
Rack-mountable metal enclosure
n
Internal international power supply
n
www.extron.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Extron electronics PA 300s
Summary of Contents for Extron electronics PA 300s
- Page 1 PA 300 Peaking amPlifier for rgBHV The Extron PA 300 is a peaking amplifier capable of driving 1600x1200 UXGA resolution signals up to 600 feet (185 meters) when used with Extron MHR or similar cable, and up to 1,000 feet (300 meters) when used with higher performance coaxial cable such as Extron RG6.
-
Page 2: Specifications
DESCRIPTION The Extron PA 300 Peaking Amplifier offers an RGB video bandwidth of 350 MHz (-3dB) and is designed for systems requiring long cable runs of up to 1,000 feet (300 meters), where signal quality is a primary concern. The PA 300 maintains signal integrity with performance enhancing features such as variable gain, low and high frequency peaking, and support for bi-level and HDTV tri-level sync.
