Introduction
The Extron MDA 3 Series of Mini Distribution Amplifiers
(MDAs) are a family of eight one-input, three-output, video and
audio distribution amplifiers. The MDA series distribution
amplifiers (DAs) split one composite video or S-video input
and/or audio input for output to multiple destinations with no
loss of signal quality. The MDA are members of the Extron
®
VersaTools line of basic distribution amplifiers, switchers, and
associated video accessories.
The MDAs distribute composite video, S-video (luminance (Y)
and chrominance (C)), and/or balanced or unbalanced audio on
captive screw connectors, or unbalanced audio on RCA
connectors, in the following combinations:

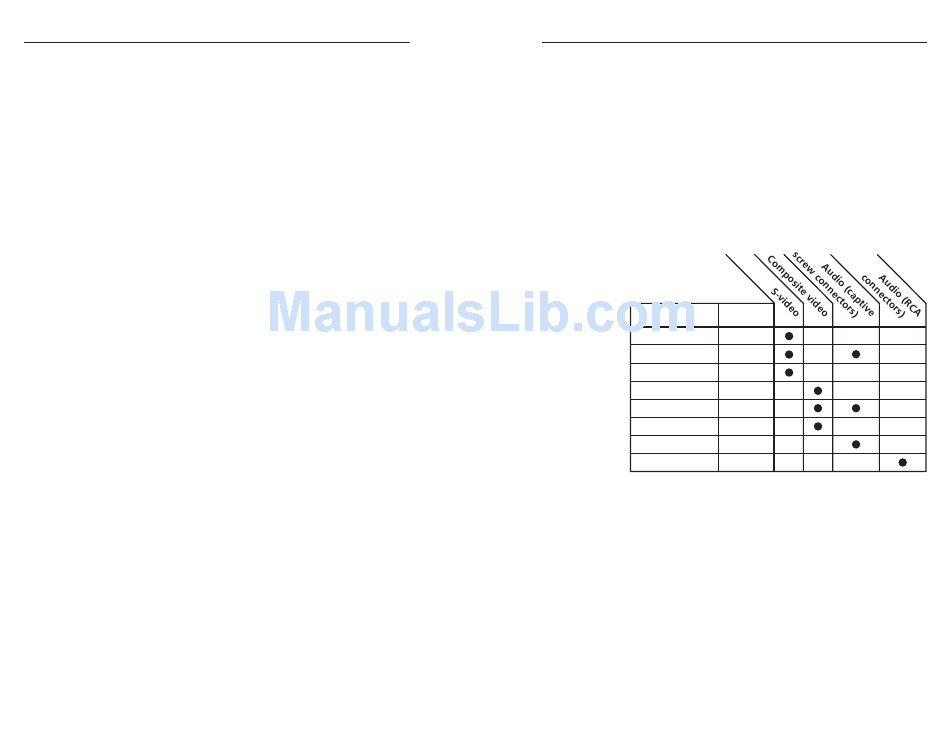

Distribution
Amplifier
MDA 3SV 60-444-01
MDA 3SVA 60-444-20
MDA 3SV Dual 60-444-10
MDA 3V 60-439-01
MDA 3AV 60-439-20
MDA 3V Dual 60-439-10
MDA 3A 60-440-01
MDA 3A RCA 60-440-30
2 = Two separate DAs.
The MDAs ship with external desktop 12 V power supplies that
accept 100 to 240 VAC, 50 Hz or 60 Hz input.
® ®
VersaTools VersaTools MDA 3 Series • Introduction
Part #
2
2
MDA 3 Series • Installation 1
