Video inputs and outputs on
female BNC connectors
(composite) or
4-pin mini-DIN
connectors (S-video)
Distributes unbalanced stereo
audio on RCA connectors
435 MHz (-3db) video
bandwidth on composite
models
A
V
D
A
UDIO
IDEO
ISTRIBUTION
MPLIFIERS
270 MHz (-3db) video
bandwidth on S-video models

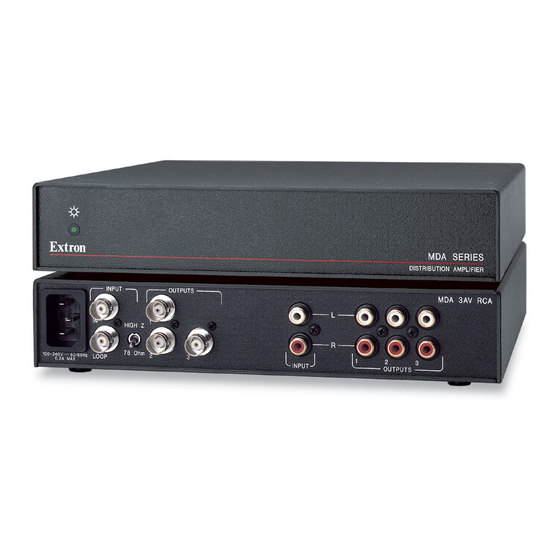

MDA 3AV RCA, MDA 5AV RCA, & MDA 5SVA RCA
Metal enclosure
1U high Rack mountable
(half rack width)
www.extron.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Extron electronics MDA 3AV RCA
Summary of Contents for Extron electronics MDA 3AV RCA
- Page 1 435 MHz (-3db) video bandwidth on composite models UDIO IDEO ISTRIBUTION MPLIFIERS 270 MHz (-3db) video bandwidth on S-video models MDA 3AV RCA, MDA 5AV RCA, & MDA 5SVA RCA Metal enclosure 1U high Rack mountable (half rack width) www.extron.com...
- Page 2 ESCRIPTION The Extron MDA 3AV RCA, MDA 5AV RCA, and MDA 5SVA RCA Mini Distribution Amplifiers (MDAs) are compact distribution amplifiers for the distribution of a single source input to multiple outputs and are ideal for a wide range of A/V applications including boardrooms, training facilities, home theater, command and control centers, and rental and staging.
