Extron electronics S1 26W User Manual

Cutout Template

188 mm x 275 mm
(7.4" x 10.8")
Paint Guard
User's Guide
1

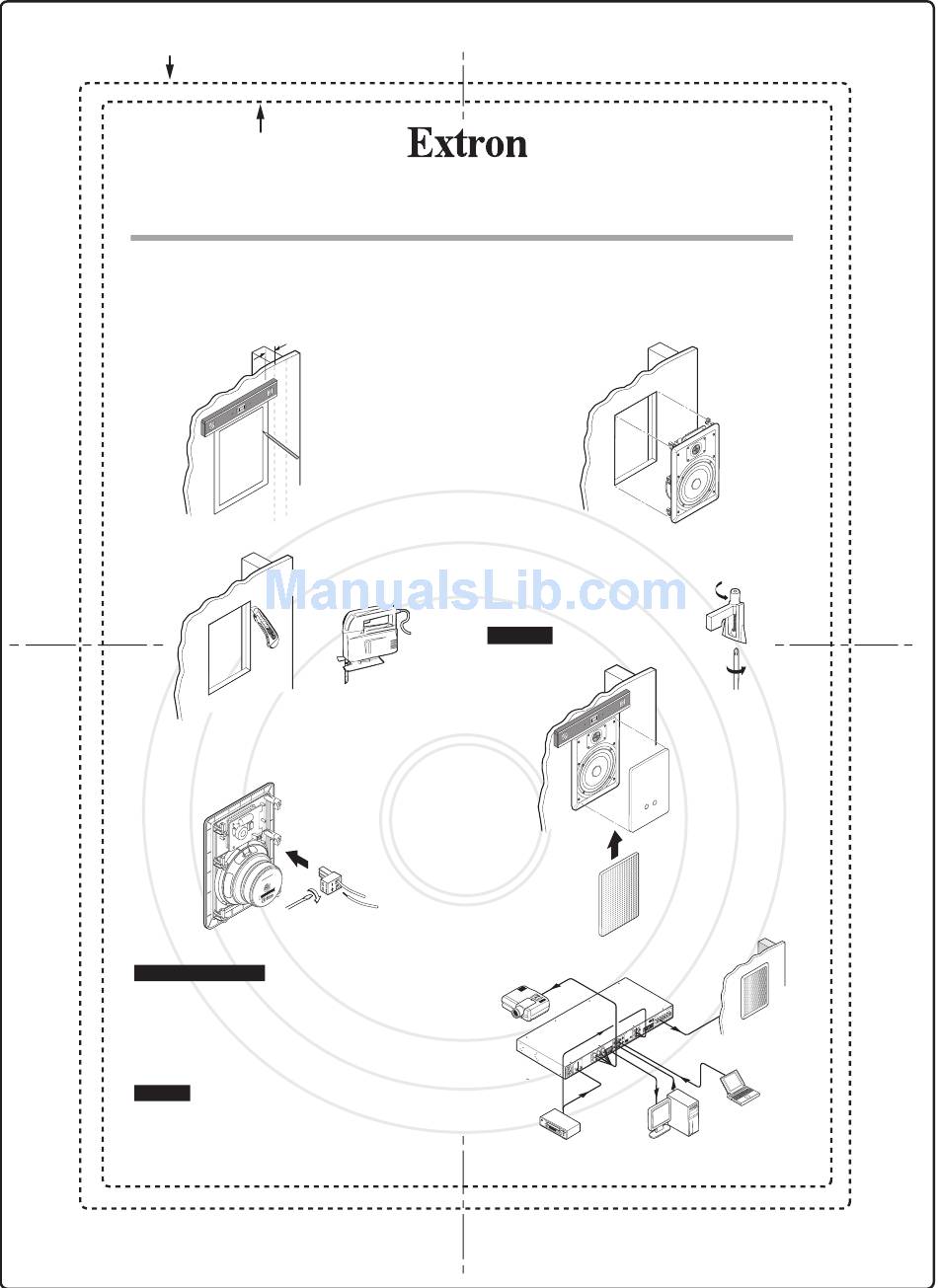

Determine the speaker location.

Leave at least 1" clearance from the edge of the speaker
to the studs in all directions. Hold or tape template in location,
make sure template is level. Trace along the inside of the template.
At least 1" from the stud.
2

Carefully cut a hole along the inside of the traced line.

3

Attach the speaker wires to the 2-pole captive screw plug.

Use red for the positive (+) wire and black for the negative (-)
wire. Insert the 2-pole captive screw plug into the 2-pole
connector on back of the speaker.
W
2 6
S I r
ke
S p ea
al l
nc e
In -W da
pe s
Im 8 O hm
X 00/0 0
XX
E XX
XX XX
XX
SN XX
A
US
re d in
ee
gin
En

Specifications:

Acoustic & Electrical
Speaker type.................................. 2-way in-wall speaker
Frequency range........................... 40 Hz to 20 kHz, -10 dB, half space
Power capacity.............................. 60 W continuous program,
30 W continuous pink noise
Nominal sensitivity...................... 89 dB, 1 W, 1 m, half space
Nominal impedance .................... 8 ohms
Crossover frequency................... 2.5 kHz
Woofer........................................... 6.5" (165 mm) polypropylene cone with
moisture resistant coating
Tweeter.......................................... 0.75" (19 mm) titanium dome
General

Temperature/humidity...............

Storage: -40 to +158 °F (-40 to +70 °C) /
10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) /
10% to 90%, noncondensing
Warranty ....................................... 5 years parts and labor
NOTE: All nominal levels are at ±10%.
NOTE: Specifications are subject to change without notice.
Print at 100%. - Do Not "Fit to Paper".
SI 26W
In-Wall Speaker
Trace template
Cut material
Remove the dust shield,
install the speaker grill.

Application diagram:

4

Insert the speaker into the wall opening.

Loosen the six screws on the front baffle (counter-
clockwise) 1/2 turn. Then tighten the screws (clockwise)
until the dog legs clamp the speaker to the wall.
5
Level speaker, position each wall clamp outward, and tighten
each screw until snug.
Install dust shield to protect the speaker during ongoing
construction.
CAUTION
Do not over-tighten screws.
6
RIG
12V
Rx IR
Tx
/IR
B C LC
Projector -23 A 2/M
RS EA MP
PR
UT S
INP 2 EO UT
AU DIO L LIN
1
L
IX
AU X/M JU ST
AD -42 dB R
TO
+24 dB R
DIO
S AU VE L R
INP UT E LE
LIN MO NO
DIO
5 AU
6 R
B
S
TP UT G T
OU OR OU
NIT
R MO
Extron
V
H
UT S EO
INP VID
0Hz 2
MLS 304SA V 50-6
100 -240
1
.
MAX
1.0A
MediaLink Switcher
VCR
Dust Shield
TP UT
D OU FT
IFIE LE
AM PL
HT
SI 26W
Two-way In-wall
Speaker
Laptop
w/ Audio
PC
