Making Connections to and Operating the VSC 100 • Chapter 2

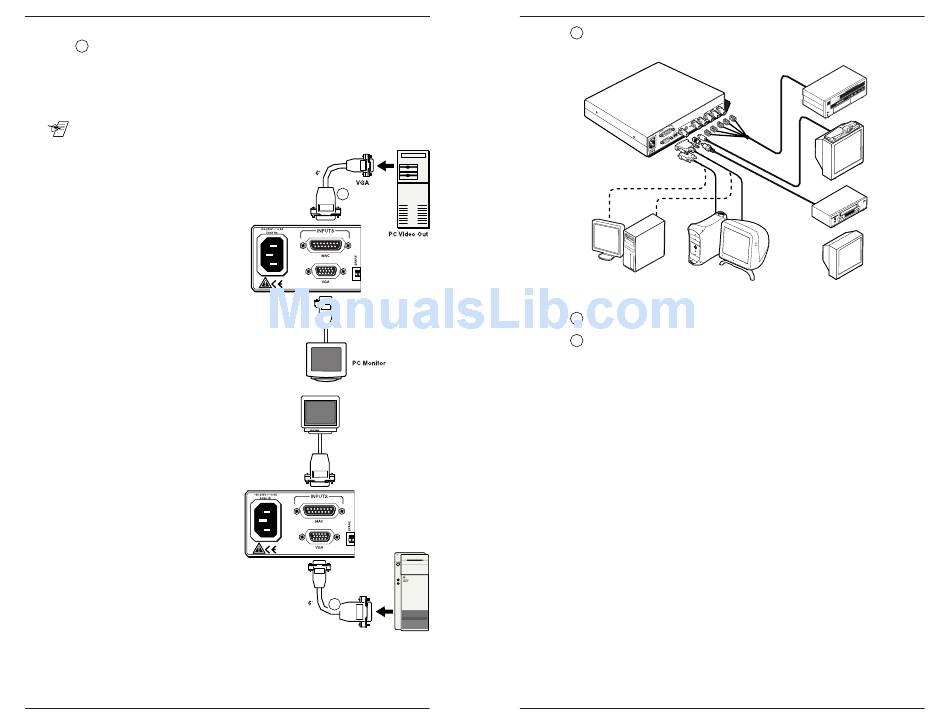

Input Connections
Use the 6-foot VGA/Mac adapter cable (26-462-01) provided for
4
connecting either a PC or a Mac.
75 Ohm termination DIP switch – Set this rear panel switch down
if your application is using a local monitor, or up (75 Ohm) if not
using a local monitor.
__ Connector size and gender prevent making improper connections.
a. PC connections –
If necessary, disconnect
the PC monitor's video
cable from the PC. Plug
the monitor video cable
into the VGA connector on
the rear panel of the
VSC 100.
Using the 6' Mac/VGA
cable (26-462-01), plug
the Mac end into the Mac
connector on the
VSC 100 and the VGA
end into the PC's video
output connector
(graphics card).
Figure 2-3a. Cabling a PC and monitor
b. Mac connections –
If necessary, disconnect the
Mac monitor's video cable
from the Mac video output, and
plug it into the Mac connector
on the rear panel of the
VSC 100.
Using the 6' Mac/VGA
cable (26-462-01), plug
the VGA end into the VGA
connector on the
VSC 100 and the Mac
end into the Mac's video
output connector (graphics
card).
Figure 2-3b. Cabling a Mac and monitor
2-3
4
Mac Monitor
4
Mac
Mac Video Out
VSC 100 • User's Manual • Extron
Chapter 2 • Making Connections toand Operating the VSC 100
Connect the IEC power cable from the VSC 100 rear panel to an
5
active AC power source.
O U
Y
TS R/ R-
IN PU
O
DE
S- VI
0.9 A C OS ITE
0V MA MP
-24 60 Hz CO
100 50/
A
VG
VSC 100
or
VGA Input
Figure 2-5. Make final connections to the VSC 100
Turn computer monitor power On.
6
Turn computer (PC/Mac) power On.
7
Extron • User's Manual • VSC 100
Betacam
Tape Deck
V
U TS
TP H/ HV
Y
B/ B-
G/ Y
Videoconferencing
System
S-video
Composite
VCR
Video
or
Monitor
Mac Input
2-4
