Extron electronics MAAP Active Modules VCM 100 MAAP Specification Sheet page 2

MAAP Active Modules
Active Modules for Audio Buffering, Video Line Driving, Twisted Pair Transmission, Control and Power Output

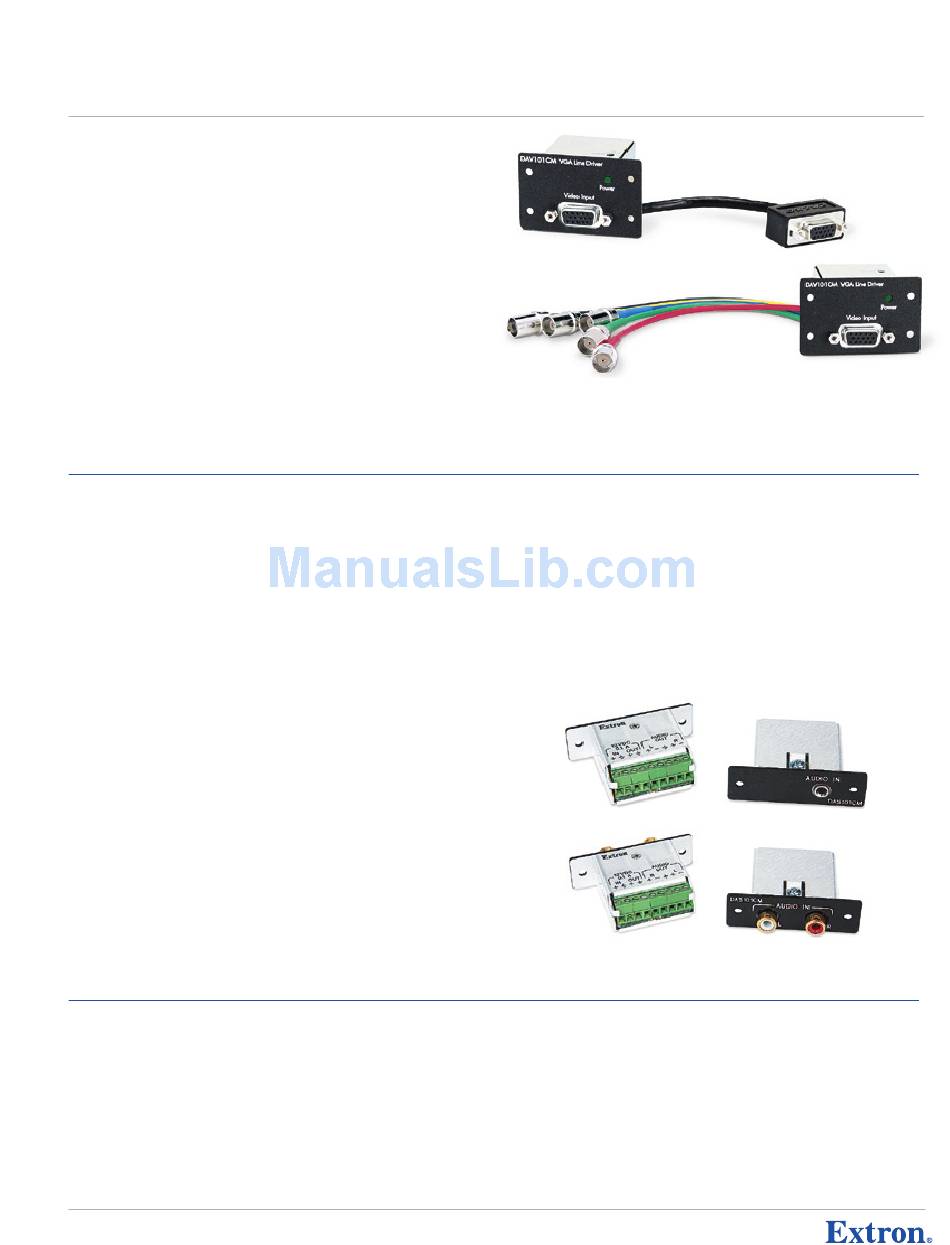

DAV101CM
VGA Line Driver - MAAP Module
desCriPtion
The Extron DAV101CM is a VGA line driver module designed to amplify the VGA signal from a
laptop, desktop computer, or other VGA-QXGA sources. The DAV101CM buffers and equalizes
the RGB and sync signals for long cable runs of up to 250 feet (75 meters) or more. The 15-
Pin HD models include a 6" (15.2 cm) cable terminated with a 15-pin HD female connector.
The BNC models include a 6" (15.2 cm) pigtail with five color-coded conductors terminated
with female BNCs.
The DAV101CM is mounted in a double-space MAAP - Mini Architectural Adapter Plate that
installs in CPM Series modular connector plates and other products that accept MAAPs. It is
available in black, white, and RAL9010 white. An external universal power supply is included,
part # 70-055-01.
Model
15-pin HD female output models
DAV101CM-1
DAV101CM-2
DAV101CM-5
5-BNC output models
DAV101CM-3
DAV101CM-4
DAV101CM-6
DAS101CM
Audio Buffer - MAAP Module
desCriPtion
The Extron DAS101CM is an audio buffer with inputs on either dual RCA connectors or one 3.5
mm stereo mini jack. It is designed to buffer and balance audio signals for long cable runs.
The DAS101CM is mounted in a compact, single-space MAAP - Mini Architectural Adapter Plate
that installs in CPM Series Modular Connector Plates and other products that accept MAAPs. It
is available in black, white, and RAL9010 white.
Note: The DAS101CM is designed to be powered by the host DAV101CM; a power supply is not included.
For stand-alone operation, order Extron EPS 1201, part # 70-055-01.
Model
3.5 mm stereo mini jack input models
DAS101CM-1
DAS101CM-2
DAS101CM-5
RCA female input models
DAS101CM-3
DAS101CM-4
DAS101CM-6
Europe Europe Dubai Dubai
+31.33.453.4040 / +800.3987.6673 +31.33.453.4040 / +800.3987.6673 +971.4.2991800 +971.4.2991800
+31.33.453.4050 FAX +31.33.453.4050 FAX +971.4.2991880 FAX +971.4.2991880 FAX
(continued)
version desCriPtion
15-Pin HD Output - Black
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15-Pin HD Output - White
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15-Pin HD Output - RAL9010 White
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-BNC Output - Black
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-BNC Output - White
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-BNC Output - RAL9010 White
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
version desCriPtion
3.5 mm Stereo Mini Input - Black
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5 mm Stereo Mini Input - White
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5 mm Stereo Mini Input - RAL9010 White
RCA Female Input - Black
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RCA Female Input - White
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RCA Female Input - RAL9010 White
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Asia Asia
+65.6383.4400 / +800.7339.8766 +65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX +65.6383.4664 FAX
M A A P - M i n i A r c h i t e c t u r A l A d A P t e r P l A t e s
DAV101CM-1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
China China
+86.21.3760.1568 / +400.883.1568 +86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX +86.21.3760.1566 FAX
DAV101CM-3
Part #
60-612-11
60-612-21
60-612-51
60-613-11
60-613-21
60-613-51
DAS101CM-1
DAS101CM-3
Part #
60-610-11
60-610-21
60-610-51
60-611-11
60-611-21
60-611-51
Japan Japan
+81.3.3511.7655 +81.3.3511.7655
+81.3.3511.7656 FAX +81.3.3511.7656 FAX
