Connecting the Projector
 Due to the
difference in
applications
for each
country, some
regions may
have different
accessories.
 (*) Optional
accessory

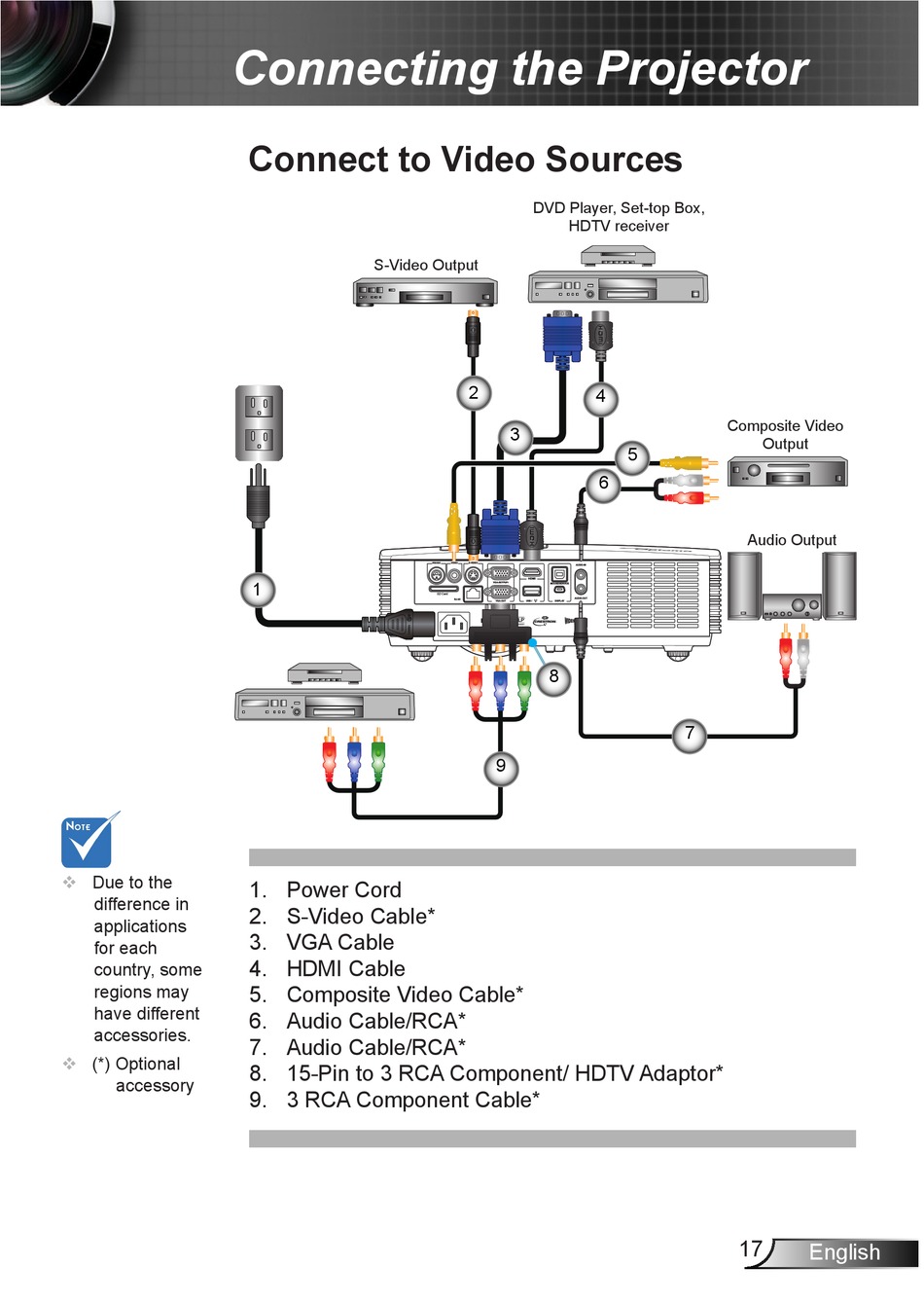

Connect to Video Sources

S-Video Output
1
1. Power Cord
2. S-Video Cable*
3. VGA Cable
4. HDMI Cable
5. Composite Video Cable*
6. Audio Cable/RCA*
7. Audio Cable/RCA*
8. 15-Pin to 3 RCA Component/ HDTV Adaptor*
9. 3 RCA Component Cable*
DVD Player, Set-top Box,
HDTV receiver
2
4
3
6
RS232C VIDEO S-VIDEO
AUDIO-IN
HDMI
VGA-IN/YPbPr
MOUSE/SERVICE
SD Card
AUDIO-OUT
RJ-45
VGA-OUT USB / DISPLAY
PICTURE BY
8
9
Composite Video
Output
5
Audio Output
7
17
