Installation
Due to the
difference in
applications for
each country,
some regions may
have different
accessories.
(*) Optional
accessory
12
English

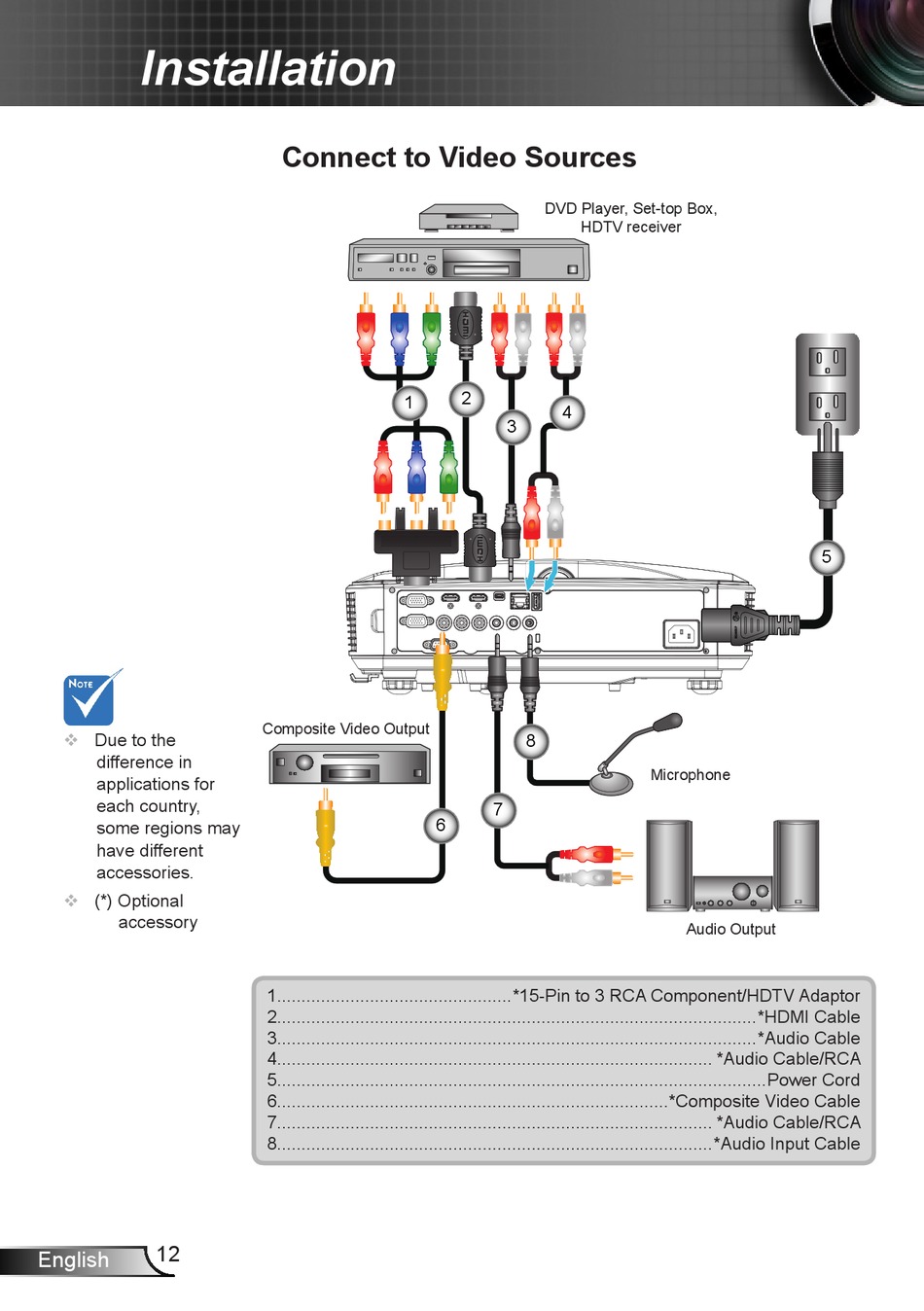

Connect to Video Sources
1
Composite Video Output
6
1................................................*15-Pin to 3 RCA Component/HDTV Adaptor
2..................................................................................................*HDMI Cable
3..................................................................................................*Audio Cable
4......................................................................................... *Audio Cable/RCA
5....................................................................................................Power Cord
6................................................................................*Composite Video Cable
7......................................................................................... *Audio Cable/RCA
8.........................................................................................*Audio Input Cable
DVD Player, Set-top Box,
HDTV receiver
2
4
3
8
7
5
Microphone
Audio Output
