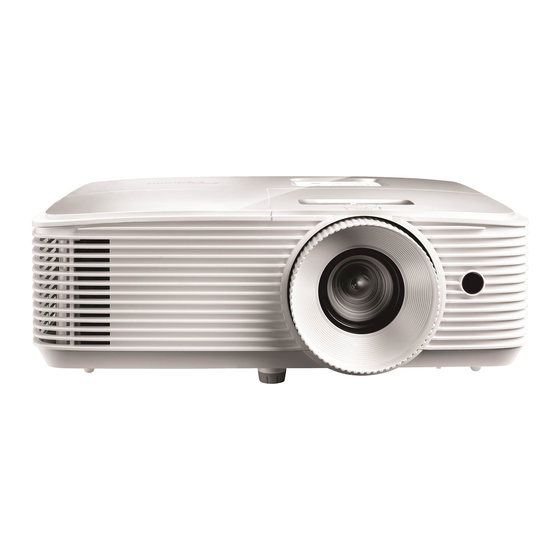

Optoma WU337 User Manual
  1. Manuals
  2. Brands
  3. Optoma Manuals
  4. Projector
  5. WU337
  6. User manual

Optoma WU337 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DLP
Projector
®
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WU337 and is the answer not in the manual?

Questions and answers

Related Manuals for Optoma WU337

Summary of Contents for Optoma WU337

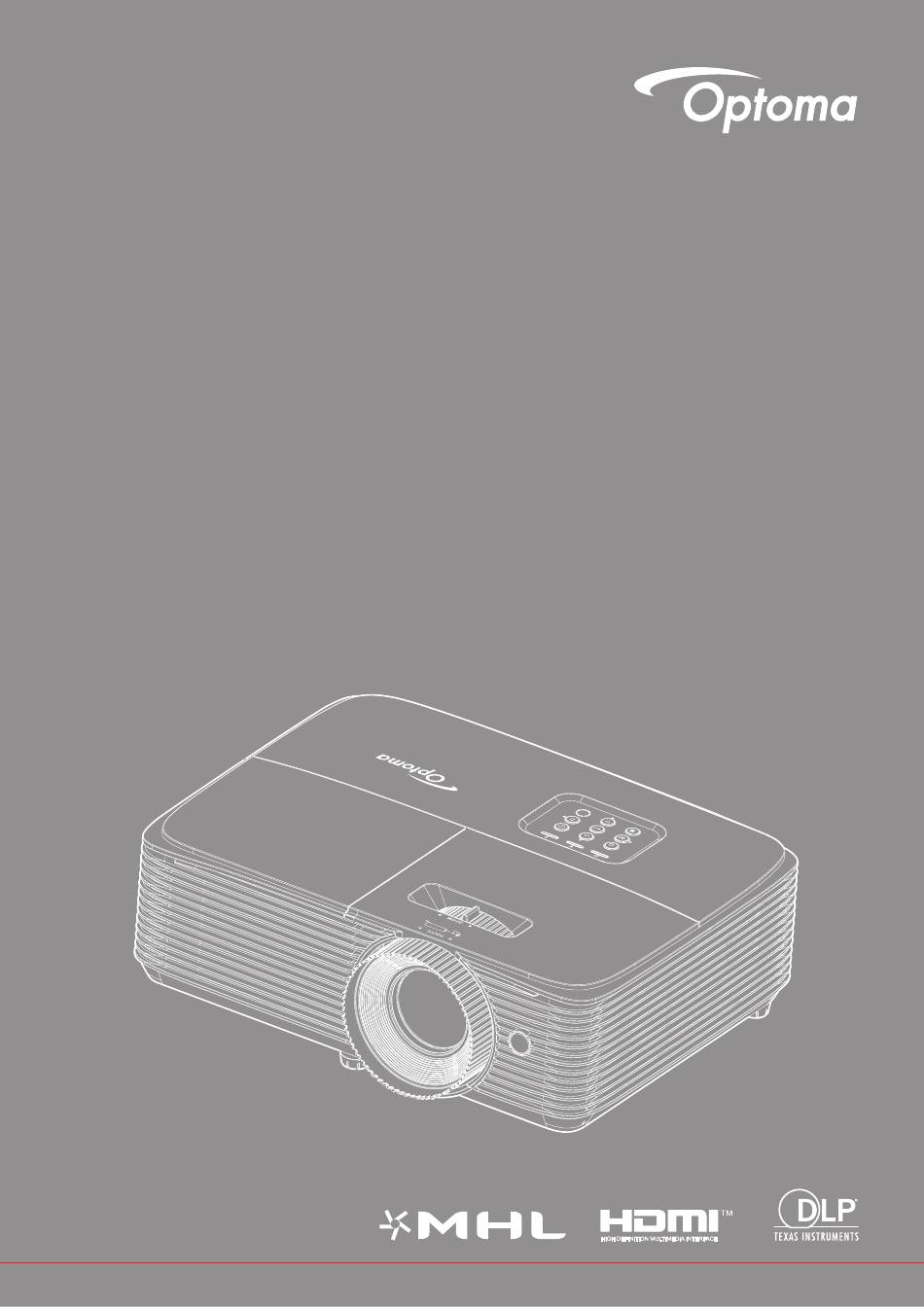

  • Page 1 Projector ® User manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY ....................4 Important Safety Instruction....................... 4 3D Safety Information ........................ 5 Copyright ........................... 6 Disclaimer ..........................6 Trademark Recognition ......................6 FCC ............................7 Declaration of Conformity for EU countries ................7 WEEE ............................7 INTRODUCTION .................. 8 Package Overview........................
  • Page 3 Projector dimensions and ceiling mount installation ..............60 IR remote control 1 codes ......................61 IR remote control 2 codes ......................63 IR remote control 3 codes ......................65 Troubleshooting ........................67 Warning indicators ........................68 Specifications ........................... 71 Optoma global offices ....................... 72 English...

  • Page 4: Safety

    SAFETY The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

  • Page 5: 3D Safety Information

    ‡ Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair. ‡ See projector enclosure for safety related markings.

  • Page 6: Copyright

    ‡ If you experience any of the following symptoms, stop viewing 3D pictures immediately and consult a medical specialist: (1) altered vision; (2) light-headedness; (3) dizziness; (4) involuntary movements such as eye or muscle twitching; (5) confusion; (6) nausea; (7) loss of awareness; (8) convulsions; (9) cramps;...

  • Page 7: Fcc

    This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 8: Introduction

    INTRODUCTION Package Overview Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items under optional accessories may not be available depending on the model, specification and your region of purchase. Please check with your place of purchase. Some accessories may vary from region to region. The warranty card is only supplied in some specific regions.

  • Page 9: Product Overview

    INTRODUCTION Product Overview Notee: Keep a minimum distance of 20 cm between the “inlet” and “outlet” labels. Item Item Lens Zoom Lever IR Receiver Lamp Cover Keypad 10. Ventilation (outlet) Lens Cap 11. Kensington Lock Port Tilt-Adjustment Foot 12. Power Socket Focus Ring 13.

  • Page 10: Connections

    INTRODUCTION Connections Type 1 (8 IO) Type 2 (9 IO) Item Type 1 (8 IO) Type 2 (9 IO) HDMI 1 / MHL Connector √ √ HDMI 2 Connector √ √ USB Power Out (5V 1A) Connector / MOUSE / SERVICE Connector √...

  • Page 11: Keypad

    INTRODUCTION Notee: ‡ Remote mouse requires special remote control. ‡ The I/Os depend on the projector you purchased, please check the physical product for reference. Keypad Item Item On/Standby LED IR Receiver Lamp LED Enter Temp LED Keystone Correction Information 10.

  • Page 12: Remote Control 1

    INTRODUCTION Remote control 1 Item Item Power On / Off 10. IR LED Indicator Keystone + / - 11. Freeze AV Mute 12. Aspect Ratio Volume - / + Mute Enter 14. Four Directional Select Keys Menu 15. 3D HDMI 16.

  • Page 13: Remote Control 2

    INTRODUCTION Remote control 2 Power Switch Freeze Enter Page- Mode Page+ Keystone Volume Menu HDMI Video User1 User2 User3 Source Resync Item Item Power On / Off 15. Brightness Mode Freeze 16. Mouse On / Off Display Blank / Audio Mute 17.

  • Page 14: Remote Control

    INTRODUCTION Remote control User2 User1 User3 Contrast Brightness Mode Aspect ratio Keystone Mute Sleep Timer Volume Source Re-sync Menu Volume HDMI1 HDMI2 VGA1 VGA2 Video YPbPr Item Item Power On 15. User 3 User 2 16. Contrast User 1 17. Display Mode Brightness 18.

  • Page 15: Setup And Installation

    Do not operate the projector in any orientation other that table top or ceiling mount. The projector should be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the warranty and may shorten the lifetime of the projector lamp or the projector itself. For none standard installation advise please contact Optoma. English...
  • Page 16 SETUP AND INSTALLATION Type 1 (8 IO) MOLEX English...
  • Page 17 SETUP AND INSTALLATION Type 2 (9 IO) MOLEX English...
  • Page 18 SETUP AND INSTALLATION Item Type 1 (8 IO) Type 2 (9 IO) MHL Cable √ √ HDMI Cable √ √ VGA In Cable √ √ RCA Component Cable √ √ Video Cable √ √ Audio In Cable √ √ Microphone In Cable √...

  • Page 19: Adjusting The Projector Image

    SETUP AND INSTALLATION Adjusting the projector image Image height The projector is equipped with elevator feet for adjusting the image height. Locate the adjustable foot you wish to adjust on the underside of the projector. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector. Tilt-Adjustment Feet Tilt-Adjustment Ring Zoom and focus...
  • Page 20 SETUP AND INSTALLATION Installing / replacing the batteries Press firmly and slide the battery cover off. Install new battery into the compartment. Remove the old battery and install new one (CR2025). Ensure that the side with a “+” is facing Put the cover back.
  • Page 21 SETUP AND INSTALLATION Effective range Infra-Red (IR) remote control sensor is located on top of the projector. Ensure to hold the remote control at an angle within 30 degrees perpendicular to the projector’s top IR remote control sensor to function correctly. The distance between the remote control and the sensor should not be longer than 6 meters (~ 20 feet).

  • Page 22: Using The Projector

    USING THE PROJECTOR Powering on / off the projector Powering on Securely connect the power lead and signal/source cable. When connected, the On/Standby LED will turn red. Turn on the projector by pressing the " " either on the projector keypad or the remote control. A start up screen will display in approximately 10 seconds and the On/Standby LED will be flashing green or flashing blue.

  • Page 23: Selecting An Input Source

    USING THE PROJECTOR Selecting an input source Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, etc. The projector will automatically detect the source. If multiple sources are connected, push the source button on the projector keypad or the remote control to select the desired input.

  • Page 24: Menu Navigation And Features

    USING THE PROJECTOR Menu navigation and features The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source. To open the OSD menu, press on the remote control or the projector keyboard.

  • Page 25: Osd Menu Tree

    USING THE PROJECTOR OSD Menu tree Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Presentation Bright Cinema Game Display Mode [Data] sRGB DICOM SIM. User Off [Default] Blackboard Light Yellow Wall Color Light Green Light Blue Pink Gray...
  • Page 26 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Cancel [Default] Reset Color Matching Exit Red Gain -50~50 Green Gain -50~50 Blue Gain -50~50 Red Bias -50~50 RGB Gain/Bias Green Bias -50~50 Blue Bias -50~50 Cancel [Default]...
  • Page 27 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu 3D Mode DLP-Link [Default] 3D [Default] 3D->2D Auto [Default] 3D Format Top and Bottom Frame Sequential 3D sync invert Off [Default] Display 16:9 16:10 [WUXGA model] Aspect Ratio Native...
  • Page 28 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Optional Filter Installed Filter Usage (Read only) Hours 300hr Filter Settings Filter Reminder 500hr [Default] 800hr 1000hr Cancel [Default] Filter Reset Off [Default] Direct Power On Off [Default] Signal Power On...
  • Page 29 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Green Grid Magenta Grid Test Pattern White Grid White IR Function HDMI 2 Test Pattern LAN (Type 2 (9 IO) only) Brightness Contrast Sleep Timer [Default] Color Matching User1...
  • Page 30 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu HDMI 2 Test Pattern LAN (Type 2 (9 IO) only) Brightness Contrast Sleep Timer Remote Settings Color Matching User3 Color Temp [Default] [depends on remote] Gamma Projection...
  • Page 31 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Closed Captioning Off [Default] Top left Top right Menu Location Center [Default] Menu Settings Bottom left Bottom right Menu Timer 5sec 10sec [Default] Off [Default] Auto Source HDMI1/MHL...
  • Page 32 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu None [Default: for Video/Pro-AV] Blue [Default for Data model] Background Options Color Green Grey Setup Logo Cancel [Default] Reset OSD Reset Cancel [Default] Reset to Default Network Status (read only)

  • Page 33: Display Image Settings Menu

    USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Regulatory Serial Number Source Resolution 00x00 Refresh Rate 0.00Hz Display Mode Power mode (Standby) Bright 0 hr Eco. 0 hr Lamp Hours Dynamic 0 hr Information Eco+...
  • Page 34 USING THE PROJECTOR ‡ User: Memorize user’s settings. ‡ 3D: To experience the 3D effect, you need to have 3D glasses. Make sure your PC/portable device has a 120 Hz signal output quad buffered graphics card and a 3D Player installed. Wall Color Use this function to obtain an optimized screen image according to the wall color.
  • Page 35 USING THE PROJECTOR Color Matching Color White Reset Exit ‡ Color Space (non-HDMI input only): Select an appropriate color matrix type from the following: AUTO, RGB, or YUV. ‡ Color Space (HDMI input only): select an appropriate color matrix type from the following: Auto, RGB(0-255), RGB(16-235), and YUV.

  • Page 36: Display 3D Menu

    USING THE PROJECTOR Reset Return the factory default settings for color settings. Display 3D menu 3D Mode Use this option to disable the 3D function or select the appropriate the 3D function. ‡ Off: Select “Off” to turn off 3D mode. ‡...
  • Page 37 USING THE PROJECTOR Notee: ‡ It is considred normal that black bars appear on the right side and left side of the image with the resolution of WUXGA; and around the image wtih a resolution of 1080p in each aspect mode. ‡...
  • Page 38 USING THE PROJECTOR Notee: ‡ Detailed informations about LBX mode: ± Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. In this situation, the image will not look right when displaying image in 16:9 mode. In this situation, please try to use the 4:3 mode to view the DVD.
  • Page 39 USING THE PROJECTOR WUXGA scaling table (screen type 16e:10): Notee: ‡ Supported screen type 16:10 (1920 x 1200), 16:9 (1920x1080). ‡ When screen type is 16:9 there is no 16x10 format in this condition. ‡ When screen type is 16:10 there is no 16x9 format in this condition. ‡...

  • Page 40: Display Edge Mask Menu

    USING THE PROJECTOR WUXGA scaling table (screen type 16e:9): 16 e: 9 screen 480i/p 576i/p 1080i/p 720p Scale to 1440x1080. 16x9 Scale to 1920x1080. Scale to 1920x1440, then get the central 1920x1080 image to display. Native mode -1:1 mapping centered. -No scaling will be made;...

  • Page 41: Display Keystone Menu

    USING THE PROJECTOR Display keystone menu Keystone Adjust the image distortion caused by tilting the projector. Audio menu Audio mute menu Mute Use this option to temporarily turn off the sound. ‡ One: Choose the “On” to turn mute on. ‡...

  • Page 42: Setup Filter Settings Menu

    USING THE PROJECTOR Setup filter settings menu Optional Filter Installed Set the warning message setting. ‡ Yese: Display warning message after 500 hours of use. Notee: “Filter Usage Hours / Filter Reminder / Filter Reset” will only appear when “Optional Filter Installed” is “Yes”. ‡...

  • Page 43: Setup Security Menu

    USING THE PROJECTOR Notee: The fans will still run in active standby if “Signal Power On” is enabled. USB Power Set the USB power settings. ‡ One: The projector is always powered on by a USB power source. ‡ Offe: The USB Power function is off. ‡...

  • Page 44: Setup Test Pattern Menu

    USING THE PROJECTOR Power Off Link Enable this function to let both HDMI Link and projector to be automatically turned off at the same time. Setup test pattern menu Test Pattern Select the test pattern from green grid, magenta grid, white grid, white or disable this function (off). Setup remote settings menu IR Function Set the IR function setting.

  • Page 45: Setup Reset Menu

    USING THE PROJECTOR Input Source Select the input source between HDMI1/MHL, HDMI2, VGA, and Video. Input Name Use to rename the input function for easier identification. The available options include HDMI1/MHL, HDMI2, VGA, and Video. High Altitude When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin. Display Mode Lock Choose “On”...
  • Page 46 USING THE PROJECTOR DHCP Use this option to enable or disable the DHCP function. ‡ On: Projector will obtain an IP address automatically from your network. ‡ Off: To assign IP, subnet mask, gateway, and DNS configuration manually. Notee: Exiting OSD will automatically apply the entered values. IP Address Display the IP address.

  • Page 47: Network Control Menu

    USING THE PROJECTOR Reset Reset all values for LAN parameters. Network control menu Crestron Use this function to select the network function (port: 41794). For more information, please visit http://www.crestron.com and www.crestron.com/getroomview Extron Use this function to select the network function (port: 2023). PJ Link Use this function to select the network function (port: 4352).
  • Page 48 USING THE PROJECTOR ‡ PJLink applied for trademark and logo registration in Japan, the United States of America, and other countries by JBMIA. The projector is supported by the specified commands of the Crestron Electronics controller and related software, for example RoomView ®...
  • Page 49 USING THE PROJECTOR Right-click on the Local Area Connection, and select Property. In the Properties window, select the General tab, and select Internet Protocol (TCP / IP). Click “Properties”. Type in the IP address and Subnet mask, then press “OK”. Press the “Menu”...
  • Page 50 USING THE PROJECTOR Open on projector Network > LAN. Enter the following connection parameters: ± DHCP: Off ± IP Address: 192.168.0.100 ± Subnet Mask: 255.255.255.0 ± Gateway: 192.168.0.254 ± DNS: 192.168.0.1 Press “Enter” to confirm settings. Open a web browser, for example Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher installed.
  • Page 51 USING THE PROJECTOR Tool page Contact IT helpdesk RS232 by Telnet Function There is alternative RS232 command control way, in projector so called “RS232 by TELNET” for LAN / RJ45 interface. Quick Start-Guide for “RS232 by Telnet” ‡ Check and get the IP address on OSD of the projector. ‡...

  • Page 52: Info Menu

    USING THE PROJECTOR Select Start > All Programs.> Accessories > Command Prompt. Input the command format as follows: ± telnet ttt.xxx.yyy.zzz 23 (“Enter” key pressed) ± (ttt.xxx.yyy.zzz: IP-Address of the projector) If Telnet-Connection ready, and user can have RS232 command input, then “Enter” key pressed, the RS232 command will be workable.

  • Page 53: Maintenance

    MAINTENANCE Replacing the lamp The projector automatically detects the lamp life. When the lamp life is nearing the end of use, a warning message will appear on the screen. Warning Lamp Warning Lamp life exceeded. When you see this message, please contact your local reseller or service center to change the lamp as soon as possible.
  • Page 54 MAINTENANCE Replacing the lamp (continued) Procedure: Switch off the power to the projector by pressing the " " button on the remote control or the projector keypad. Allow the projector to cool down for at least 30 minutes. Disconnect the power cord. Unscrew the screw on the cover.

  • Page 55: Installing And Cleaning The Dust Filter

    MAINTENANCE Installing and cleaning the dust filter Installing the dust filter Notee: Dust filters are only required/supplied in the selected regions with excessive dust. Cleaning the dust filter We recommend you to clean the dust filter every three months. Clean it more often if the projector is used in a dusty environment.

  • Page 56: Additional Information

    ADDITIONAL INFORMATION Compatible resolutions Digital compatibility B0/Established B0/Standard Timing B0/Detail Timing B1/Video Mode B1/Detail Timing Timing 720x400 @ 70Hz SVGA: Native timing: 640x480p @ 60Hz 720x480p @ 60Hz 640x480 @ 60Hz 800x600 @ 120Hz XGA: 1024x768 @ 60Hz 720x480p @ 60Hz 1280x720p @ 60Hz 640x480 @ 67Hz 1024x768 @ 120Hz...
  • Page 57 If 3D input is 1080p@24hz, the DMD should replay with integral multiple with 3D mode. ‡ Support NVIDIA 3DTV Play if there is no patent fee from Optoma. 1080i@25hz and 720p@50hz will run in 100 hz; other 3D timing will run in 120hz.

  • Page 58: Image Size And Projection Distance

    ADDITIONAL INFORMATION Image size and projection distance WUXGA Screen size Screen size (Min zoom) (Max zoom) Desired From base to From base to Distance (m) Diagonal (inch) W (cm) x H (cm) top of image Diagonal (inch) W (cm) x H (cm top of image (cm) (cm)
  • Page 59 ADDITIONAL INFORMATION 1080p Screen size Screen size (Min zoom) (Max zoom) Desired From base to From base to Distance (m) Diagonal (inch) W (cm) x H (cm) top of image Diagonal (inch) W (cm) x H (cm top of image (cm) (cm) 26.33...

  • Page 60: Projector Dimensions And Ceiling Mount Installation

    ADDITIONAL INFORMATION Projector dimensions and ceiling mount installation To prevent damage to your projector, please use the Optoma ceiling mount. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications: ‡...

  • Page 61: Ir Remote Control 1 Codes

    IR remote control 1 codes Key legend Description Key code Power Press to turn on / off the projector. Freeze Press to freeze the projector image. Aspect Press to change aspect ratio of a displayed image. AV mute Press to turn off/ on projector built-in speaker ‡...
  • Page 62 ADDITIONAL INFORMATION Key legend Description Key code Source Press to select an input signal. Press to automatically adjust the picture brightness to give an Brightness mode optimum contrast performance. ReSync Automatically synchronize the projector to the input source. English...

  • Page 63: Ir Remote Control 2 Codes

    ADDITIONAL INFORMATION IR remote control 2 codes Power Switch Freeze Enter Page- Mode Page+ Keystone Volume Menu HDMI Video User1 User2 User3 Source Resync Printing-key Description code definition Power Power on/off Press to turn on / off the projector. Switch Switch Press to switch the USB mouse on / off.
  • Page 64 ADDITIONAL INFORMATION Printing-key Description code definition Mode Mode Press to switch Display mode on or off. Page + Page+ Press to page up. Keystone+ Press to adjust image distortion caused by tilting the Keystone projector. Keystone- Volume + Press to adjust to increase / decrease the volume. Volume Volume - ‡...

  • Page 65: Ir Remote Control 3 Codes

    IR remote control 3 codes User2 User1 User3 Contrast Brightness Mode Aspect ratio Keystone Mute Sleep Timer Volume Source Re-sync Menu Volume HDMI1 HDMI2 VGA1 VGA2 Video YPbPr Data Custom code Printing-key code Description definition Byte 1 Byte 2 Byte 3 Power on Press to turn on the projector.
  • Page 66 ADDITIONAL INFORMATION Data Custom code Printing-key code Description definition Byte 1 Byte 2 Byte 3 Volume + Volume + Adjust to increase volume. ▲ ◄ ▲, ◄, ►, or ▼ to select items or make Four direction keys adjustments to your selection. ►...

  • Page 67: Troubleshooting

    ADDITIONAL INFORMATION Troubleshooting If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center. Image problems No image appears on-screen ‡ Ensure all the cables and power connections are correctly and securely connected as described in the "Installation"...

  • Page 68: Warning Indicators

    ADDITIONAL INFORMATION Two images, side-by-side format ‡ Press "3D" button and switch to "SBS" for input signal is HDMI 1.3 2D 1080i side-by-side. Image does not display in 3D ‡ Check if the battery of 3D glasses is drained. ‡ Check if the 3D glasses is turned on.
  • Page 69 ADDITIONAL INFORMATION LED lightning messages Power LED Power LED Temp-LED Lamp-LED Message (Red) (Green or Blue) (Red) (Red) Standby state Steady light (Input power cord) Flashing Power on (Warming) (0.5 sec off / 0.5 sec on) Power on & Lamp Steady light lighting Flashing...
  • Page 70 ADDITIONAL INFORMATION ‡ Temperature warning: Warning TEMPERATURE TOO HIGH Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 45 degree C. If the problem persists in spite of the above. Please contact a service center for repair.

  • Page 71: Specifications

    ADDITIONAL INFORMATION Specifications Optical Description Native resolution 1080p/WUXGA Lens Manual zoom and manual focus 1080p: - 26”~299” Image size (diagonal) WUXGA: - 27”~299” Projection distance 1m ~ 10m (focus range) Electrical Description Color reproduction 1073.4 Million color - Horizontal scan rate: 15.375~91.146 KHz Scan rate - Vertical scan rate: 50~ 85 Hz (120Hz for 3D feature projector) Built-in speaker...

  • Page 72: Optoma Global Offices

    ADDITIONAL INFORMATION Optoma global offices For service or support, please contact your local office. Japan 3178 Laurelview Ct. 888-289-6786 東京都足立区綾瀬3-25-18 Fremont, CA 94538, USA 510-897-8601 info@os-worldwide.com 株式会社オーエス www.optomausa.com services@optoma.com 0120-380-495 www.os-worldwide.com コンタクトセンター: Canada Taiwan 3178 Laurelview Ct. 888-289-6786 12F., No.213, Sec. 3, Beixin Rd.,...
  • Page 73 *36.7AZ01G001-A* P/N:36.7AZ01G001-A www.optoma.com...
