S4500THS User Guide

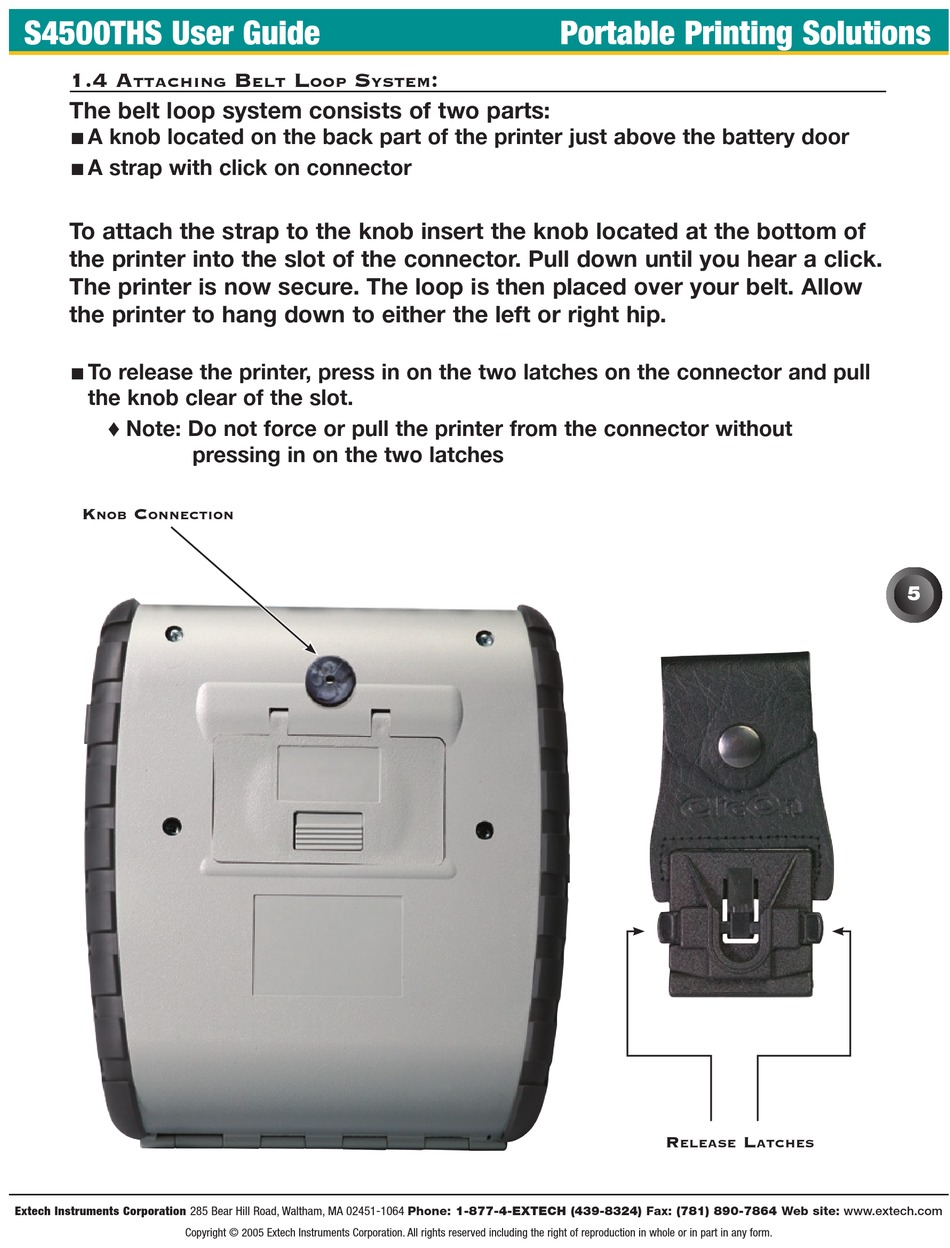

1.4 A
TTACHING
The belt loop system consists of two parts:
A knob located on the back part of the printer just above the battery door

A strap with click on connector

To attach the strap to the knob insert the knob located at the bottom of
the printer into the slot of the connector. Pull down until you hear a click.
The printer is now secure. The loop is then placed over your belt. Allow
the printer to hang down to either the left or right hip.
To release the printer, press in on the two latches on the connector and pull

the knob clear of the slot.
Note: Do not force or pull the printer from the connector without

pressing in on the two latches
K C
NOB ONNECTION
Extech Instruments Corporation 285 Bear Hill Road, Waltham, MA 02451-1064 Phone: 1-877-4-EXTECH (439-8324) Fax: (781) 890-7864 Web site: www.extech.com
Copyright © 2005 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form.
B L S
ELT OOP YSTEM
Portable Printing Solutions
:
5
