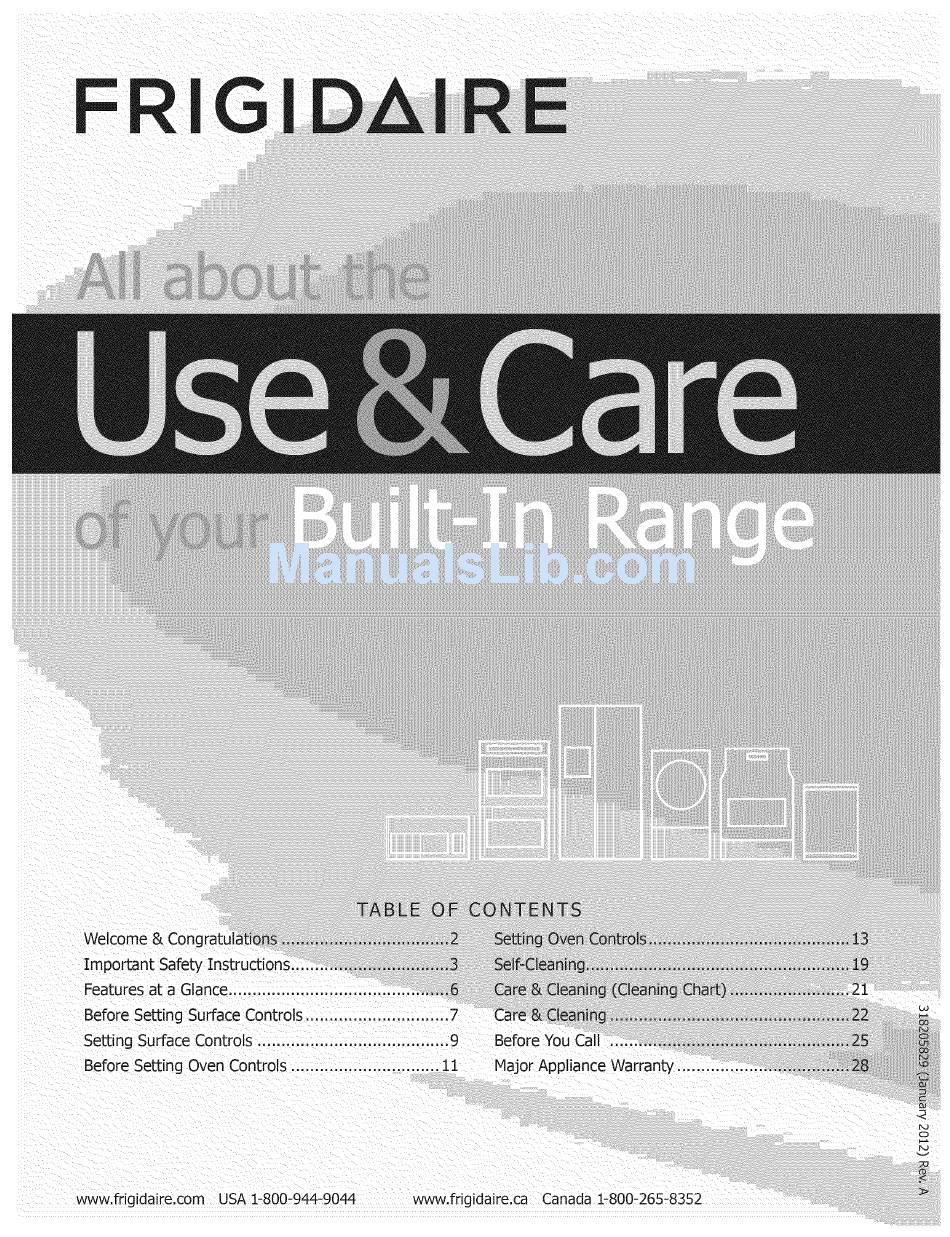

CONTENTS
Sel_leaning_.
Before Setting Surface Controls ..............................
7
Care & Cleanin_
Setting Surface Controls ........................................
9
Before SeLLing Oven Controls ...............................
11
13
www.frigidaire.com
USA1-800-944-9044
www.frigidaire.ca
Canada 1-800-265-8352
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Frigidaire FFES3027LSE
Summary of Contents for Frigidaire FFES3027LSE
- Page 1 CONTENTS Sel_leaning_. Before Setting Surface Controls ......Care & Cleanin_ Setting Surface Controls ........Before SeLLing Oven Controls ....... www.frigidaire.com USA1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352...
-
Page 2: Product Registration
Congratulations on your purchase of a new appliance! At Product Registration Electrolux Home Products, we are very proud of our Register Your Product product and are completely committed to providing you with the best service possible. Your satisfaction is our The PRODUCT number one priority. -
Page 3: Tip Over Hazard
Read all instructions before using this appliance. o Remove all tape and packaging wrap before using the appliance. Destroy the carton and plastic Save these instructions for future reference. bags after unpacking the appliance. Never allow DEFINITIONS children to play with packaging material. Do not remove the wiring label and other literature attached to the Thisis the safety alert symbol.Itisused to alert appliance. -
Page 4: Important Instructions
Do not attempt to operate the appliance during a Do not store items of interest to children in the power failure, If the power fails, always turn cabinets above the appliance. Children climbing on the unit. If the unit is not turned off and the power the cooktop to reach items could be seriously injured. - Page 5 utensils a resuitable forcooktop service without b reaking - Do not use a broiler pan without its insert. Broiler dueto thesudden change intemperature. Check t he pan and grid allow dripping fat to drain and be kept manufacturer's recommendations forcooktop use, away from the high heat of the broiler.
- Page 6 Your built-in range Features: Control panel, Left front element control, Left rear element control. Right rear element control. Right front element control. Element on indicator light. Electronic oven control with kitchen timer. Automatic oven door light switch. Oven vent. Self-clean door latch. Broil element.
-
Page 7: Element On & Hot Surface Indicator Lights
The hot surface indicator light located on the cooktop About ceramic glass cool{top (Figure 2) will glow when any surface cooking area heats The ceramic cooktop has radiant surface elements up and will remain on until the glass cooktop has cooled located below the surface of the glass. - Page 8 Using proper cookware Cookware material types The size and type of cookware used will influence the The cookware material determines how evenly and quickly setting needed for best cooking results. Be sure to follow heat is transferred from the surface element to the pan the recommendations for using proper cookware as bottom.
- Page 9 Single radiant surface elements The cooktop has 2 SINGLE radiant surface elements: the left rear position (Figure 1) and the right rear position (Figure 1). To Operate the Single Radiant Surface Elements Place correctly sized cookware on the radiant surface element.
- Page 10 Dual Surface Radiant Element The cooktop is equipped with 2 dual radiant surface elements located at the left front (Figure 1) and the right front (Figure 1) position. Symbols around the knob are used to indicate which coil of the dual radiant element will heat.
-
Page 11: Air Circulation
Oven Vent Location Arranging oven racks ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS The oven is vented Through the front panel and visible when the oven door is open. When the oven is COOL (PRIOR TO OPERATING THE OVEN). Always use on, warm air is released through the vent. - Page 12 Control pad features READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various features and functions of the oven as described below. Detailed instructions for each feature and function follow later in this Use & Care Guide. Oven interior light pad-- Used to turn oven Bake pad=Used to select the bake function.
-
Page 13: To Set The Clock
TO SET THE CLOCK TO SET THE MINUTE TIMER' on-off. I. Press TIMER When the range is first plugged in, or when the power supply to the range has been interrupted, the display will Press the A to increase the time in one minute flash "12:00". - Page 14 TO SET CONTROL CONTINUOUS BAKE TO SET CONTROL FOR OVEN LOCKOUT OR 12 HOUR ENERGY SAVING The control can be programmed to lock the oven control pads and lock the oven door The oven control has a built=in 12 Hour Energy Saving feature that will shut off the oven if the control is left on To set the Lockout feature: for more than 11 hours and 59 minutes.
-
Page 15: Setting Keep Warm
SETTING BAKE SETTING KEEP WARM The BAKE pad controls normal baking. The oven can be The Keep warm pad turns ON the Keep Warm feature programmed to bake at any temperature from 170°F to and will maintain an oven temperature of 170°F (77°C). -
Page 16: Setting Start Time
SETTING START TIME SETTING BAKE TIME The automatic timer of the Start Time will turn the oven on Bake Time allows the oven to be setto cook fora specific length of time and shut off automatically. and off at the time you select in advance. The oven will shut off and will beep when the countdown is finished. - Page 17 To set a Broil: SETTING BROIL Arrange the interior oven rack This mode isbestfor fish and poultry up to I" meats, Press the BROIL pad. "- -" will appear in the display. thick. Broiling i s a method of cookingtendercutsof meat by direct heat under the broil element of the oven.
-
Page 18: Adjusting Oven Temperature
ADJUSTING OVEN TEMPERATURE OVEN LIGHT Your oven control has been precisely set at the factory. The oven is equipped with 2 oven lights. The oven lights will This setting may differ from your previous oven however, turn on automatically, when the oven door is opened. so your recipe times may not give you the results you The oven light may be turned on when the door is closed by expect. -
Page 19: Self-Cleaning
SELF-CLEANING What to Expect during Cleaning While the oven is in operation, the oven heats to A self=cleaning oven cleans itself with high temperatures temperatures much higher than those used in normal (well above normal cooking temperatures) which cooking. Sounds of metal expansion and contraction eliminate soils completely or reduces them to a fine are normal. - Page 20 SELF-CLEAN TIME LENGTH For satisfactory results, use a 2 hour Self-Clean cycle for When the Self=Clean Cycle is Completed: light soils and a 3 hour cycle for average or a 4 hour The time of day or "End" will appear in the display cycle for heavy soils, window and the "Clean"...
-
Page 21: Cleaning Various Parts Of Your Appliance
Cleaning various parts of your appliance Before cleaning any part of the appliance, be sure all controls are turned off and the appliance is COOL. REMOVE SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANING WILL REDUCE THE NUMBER OF MAJOR CLEANING LATER. - Page 22 Cleaning recommendations for the Ceramic glass cooktop cleaning & maintenance ceramic glass cooktop Consistent nd proper c ean .g essent a to maintaining your Ceramic glass cooktop, Before cleaning the cooktop, be sure the controls are Prior to using your cooktop for the turned to OFF and the cooktop is COOL.
-
Page 23: Care And Cleaning Of Stainless Steel
Removing and replacing the lift-off oven Cleaning recommendations door ceramic glass cooktop (continued) Plastic or foods with a high sugar content: These types of soils need be removed immediately if spilled or melted onto the ceramic cooktop surface. Permanent damage (such as pitting of the cooktop surface) may occur The door is heavy. - Page 24 Changing oven light round'/ Oven door- Be sure the oven is unplugged and all parts are COOL before replacing the oven light bulb. Do not turn oven light on during a self=cleaning cycle. High Hinge / _ / \ temperature will reduce lamp life. d_--_7' _, On some models an interior oven light will turn on Figure 3...
-
Page 25: Oven Baking
Oven baking For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance. - Page 26 Beforeyou call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Range is not level, Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust leveling legs at base of range until the rack is level.
- Page 27 Scratches or Coarse particles such as salt or sand between cooktop and utensils can cause scratches. Be abrasions sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not cooktop surface, affect cooking and will become less visible with time. Cleaning materials not recommended for ceramic-glass cooktop have been used.
- Page 28 Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.
