Product Overview

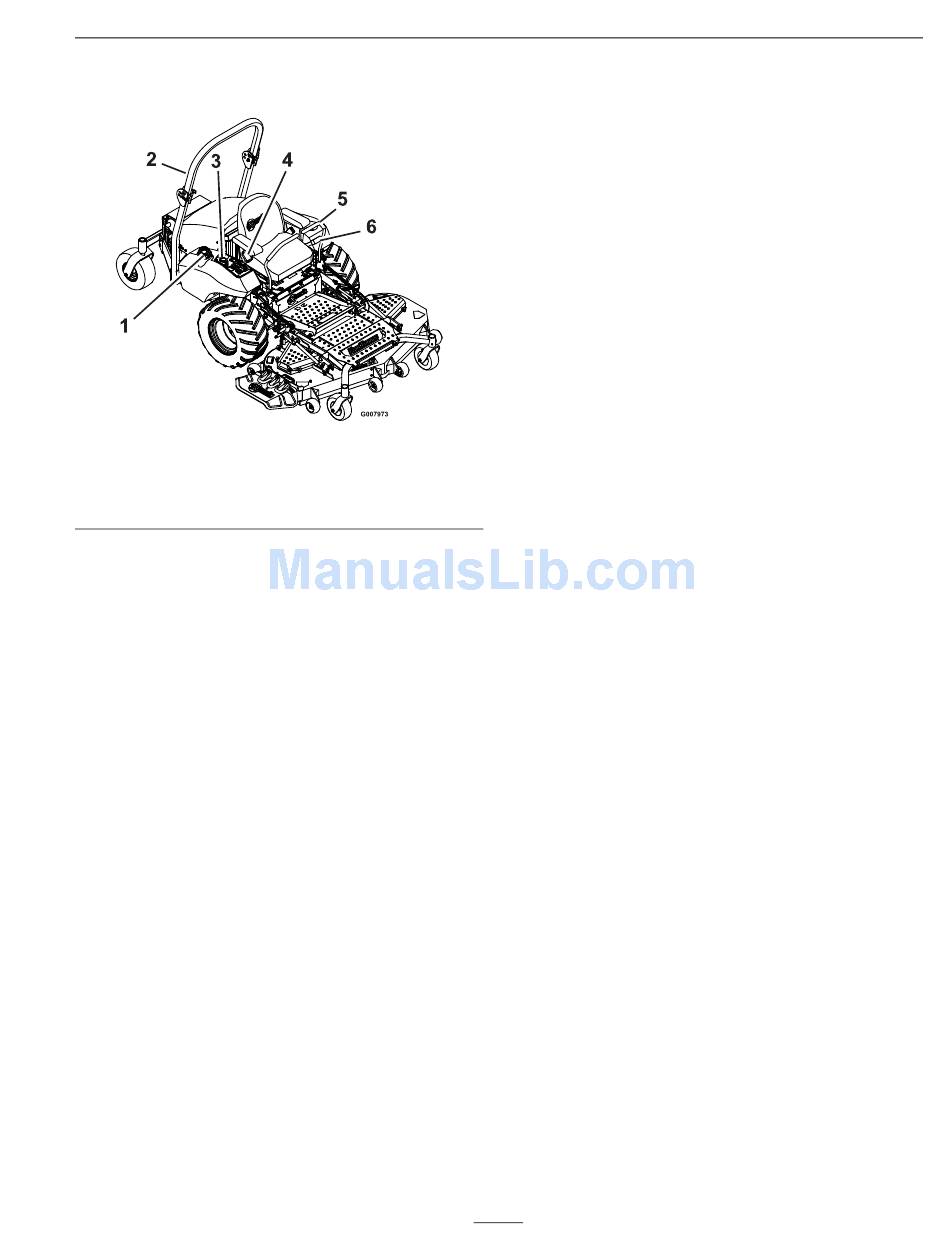

Figure 4
1. Fuel Cap
2. Roll Bar

3. Controls

4. Seat Belt
5. Motion Control Lever
6. Parking Brake Lever

Operation

Note: Determine the left and right sides of the
machine from the normal operating position.
Controls
Motion Control Levers
The motion control levers located on each side of the
console control the forward and reverse motion of
the machine. The levers control the flow of hydraulic
oil from the hydrostatic pump to the drive wheel
motor for each side.
Moving the levers forward or backward turns the
wheel on the same side forward or in reverse. Wheel
speed is proportional to the amount the lever is
moved.
Moving the levers outward from the center position
into the T-slot locks them in the neutral position
(Figure 6).
Throttle Control
Located on right fuel tank console.
The throttle is used to control engine speed. Moving
the throttle lever forward will increase engine speed
and moving the throttle lever to the rear will decrease
engine speed. Moving the throttle forward into the
detent is full throttle.
Park Brake Lever
Located on left side of unit, between the seat and the
dummy tank.
The brake lever engages a parking brake on the drive
wheels.
Pull the lever up and rearward to engage the brake.
Push the lever forward and down to disengage the
brake.
The unit must be tied down and brake engaged when
transporting.
Ignition Switch
Located on right fuel tank console.
The ignition switch is used to start and stop the
engine. The switch has three positions "OFF", "ON"
17
