MS440GX Motherboard Product Guide

Add-in Card Connectors

When the motherboard is installed in a chassis, there are a maximum of seven slots available for
installing add-in cards. The table immediately below Figure 17 identifies the seven slots by their
callout locations. All of the PCI bus connectors are bus master capable.
Figure 17 shows the location of the add-in card connectors.
A
B
C
D
E
F
G
H
A ISA slot (shared with PCI bus connector 6)
B PCI bus connector 6 (shared with ISA bus
connector
C PCI bus connector 5
D PCI bus connector 4
90
E
F
G
H

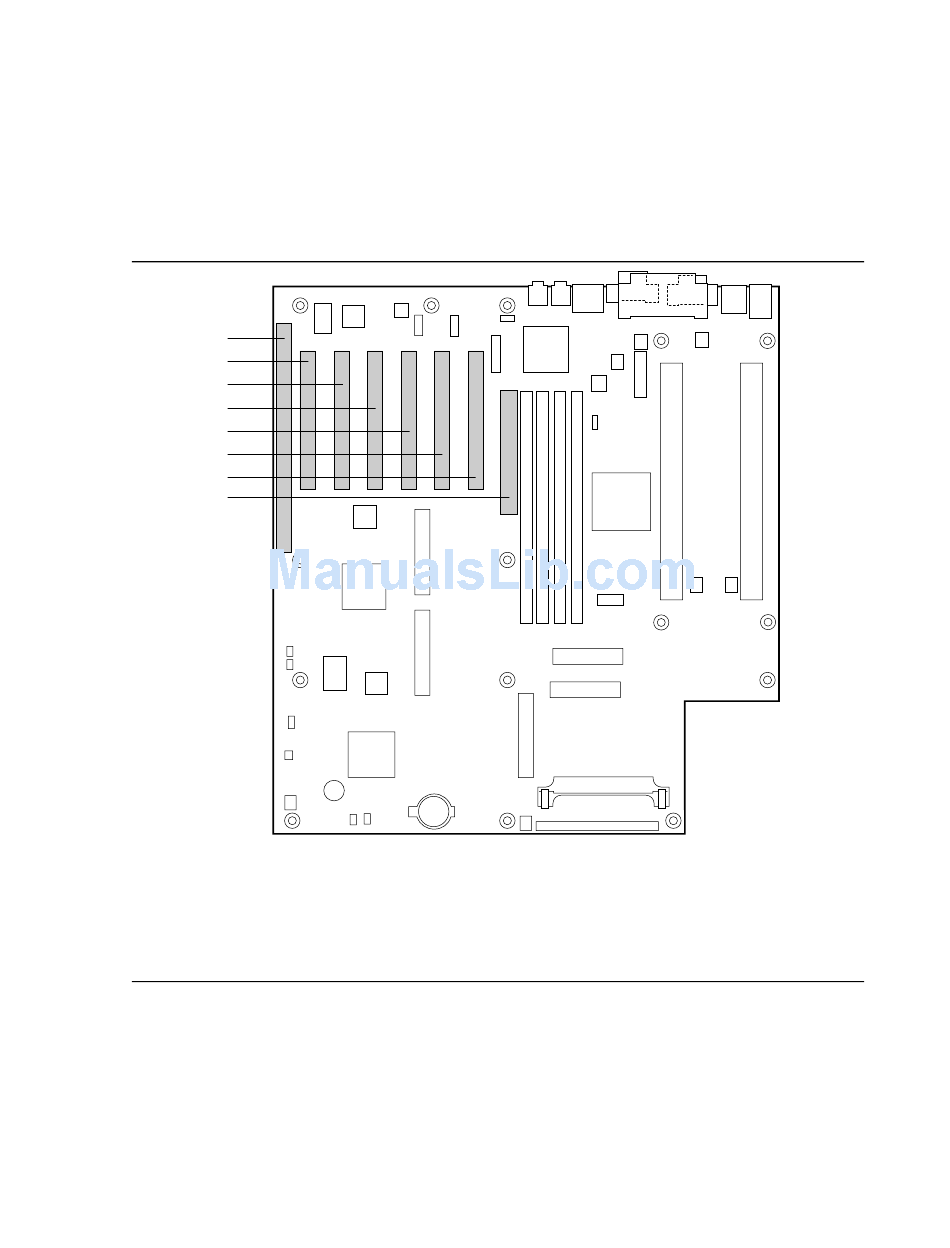

Figure 17. Add-in Card Connectors
PCI bus connector 3
PCI bus connector 2
PCI bus connector 1
A.G.P. connector
OM07115
