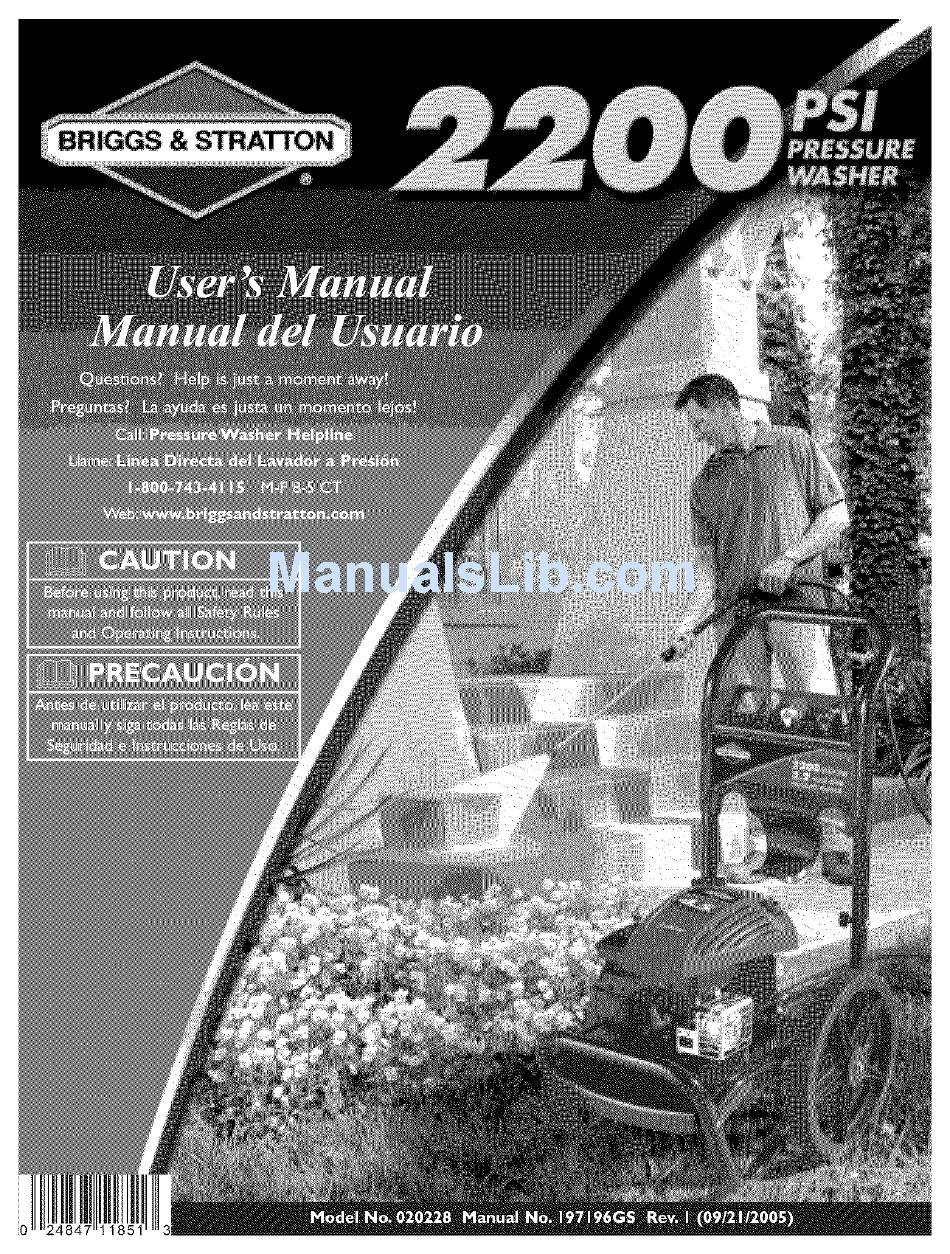

Briggs & Stratton 20228 User Manual

2200psi

Hide thumbs Also See for 20228:

User manual (36 pages)

Owner's manual (36 pages)

Owner's manual (36 pages)

page of 36

/ 36
Bookmarks

Available languages

Quick Links

Download this manual See also: Owner's Manual

Need help?

Do you have a question about the 20228 and is the answer not in the manual?

Questions and answers

Bob

January 24, 2025

Any special oil to use?

1 comments:

Mr. Anderson

May 14, 2025

The oil required for the Briggs & Stratton part number 20228 is identified by part number 190586GS, which is a specific oil for the pump.

This answer is automatically generated

Summary of Contents for Briggs & Stratton 20228

Page 2 Safety Rules SAVE THESE iNSTRUCTiONS TABLE OF CONTENTS SAFETY RULES Section Safety Rules ......Section Features and Controls ....This is the safety alert symbol, it is used to alert you to potential personal injury hazards. Section Assembly ......Obey all safety messages that follow this...
Page 3 Section 1: Safety Rules WARNING WHEN ADDING FUEL Turn pressure washer OFF and let it cool at least 2 minutes before removing gas cap. Fill fuel tank outdoors. Operate pressure washer ONLY outdoors. DO NOT overfill tank.Allow space for fuel expansion. Keep exhaust gas from entering a confined area through...
Page 4 Section 1: Safety Rules WARNING CAUTION DO NOT tamper with governed speed. DO NOT operate pressure washer" above rated pressure. DO NOT touch hot surfaces and avoid hot exhaust gases. Allow equipment to cool before touching. The pressure washer must be at least 5 feet from structures DO NOT secure spray gun in open position.
Page 5 Features and Controls KNOWYOUR PRESSURE WASHER r _ Read this user's manual and safety rules before operating your pressure washer. I!: _'o!;:1Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference.
Page 6 Assembly ASSEMBLY PREPARING PRESSURE iMPORTANT: Read entire user's manual before you WASHER FOR USE attempt to assemble or operate your new pressure washel_ If you have any problems with the assembly of your Remove Pressure Washer From pressure washer or if parts are missing or damaged, call the Carton pressure washer helpline at 1-800-743-4115.
Page 7 Section 3: Assembly Insert carriage bolts through holes from outside of unit Insert mulu-colored ProjectPro Tmnozzles and other and attach a plastic knob from inside of unit (Figure 2). supplied accessories in spaces provided in accessory Tighten by hand. tray. See "How to Use AccessoryTray'. Oil and Fuel •...
Page 8 Section 3: Assembly Run water through your garden hose for 30 seconds Connect Hose and Water Supply co clean ouc any debris. Pump IMPORTANT: DO NOT siphon standing water for the IMPORTANT: To avoid pump damage, you must assemble water supply.Use ONLY cold water (less than 100°F). the nozzle extension co the spray gun and attach all hoses Connect the garden hose (not to exceed 50 feet in before you start the engine.
Page 9 Operation HOWTO USE YOUR Start Your Pressure Washer To start your pressure washer for the first time, follow PRESSU RE WASH these instructions step-by-step.This starting information also applies if you have let the pressure washer sit idle for If you have any problems operaung your pressure washer, at least a day.
Page 10 Section 4: Operation When starting engine, position yourself as recommended NOTE: Always keep the throttle lever in the "Fast" in Figure I I and start engine according to instructions )osiuon when operaung the pressure washen given in engine user's manual.Also see operating WARNING instructions tag located on the pressure washel:...
Page 11 Section 4: Operation Pull back collar on quick-connect and pull current Use AccessoryTray ProjectPro TMnozzles off. Store ProjectPro TMnozzles in The unit is equipped with an accessory tray with places to holder provided on the accessory tray. store your spray gun, nozzle extension, turbo nozzle, and Select desired ProjectPro Tu nozzle: ProjeetPro TMnozzles.There is also a hook at the front of...
Page 12 Section 4: Operation Pull back on collar, insert new ProjectPro TMnozzle and release collanTug on ProjectPro TM nozzle to make sure it is securely in place. For most effective cleaning, keep ProjectPro TMnozzle from 8 to 24 inches away from cleaning surface. If you get ProjectPro TMnozzle too close, you may damage cleaning surface.
Page 13 Section 4: Operation To apply detergent foBow these steps: Keep spray gun a safe distance from the area you plan to spray. Review ProjectPro TMnozzle use. Prepare detergent solution as required by manufacturen Place small filter end of detergent siphoning tube into detergent containen CAUTION Keep spray nozzle between...
Page 14 Maintenance SPECiFiCATiONS PRESSURE WASHER Maximum Outlet Pressure ....2200 psi HAINTENANCE Maximum Flow Rate ..2.2 gallons per minute (gpm) Detergent Use detergent approved for pressure washers inlet Check Clean Screen Supply Water ....Not to Exceed 100°F Examine the screen on the water inlet.
Page 15 Section 5: Maintenance Check In-Line Filter Use a small paper clip to free any foreign material clogging or restricting nozzle (Figure 20). Refer to Figure 19 and service the in-line filter if it becomes clogged, as follows: Use wire here _--__ Filter Screen to remove...
Page 16 Section 5: Maintenance Tilt pressure washer to drain oil into an approved Pump Maintenance container until it drips slowly from pump. Changing Pump Tilt pressure washer in opposite direction and empty Change oil every 50 hours or once yearly, whichever premeasured pump oil horde into same opening (a occurs...
Page 17 PREPARING UNiT CAUTION FOR STORAGE • Failure to do so will permanendy damage your" pump and Water sbould =lot remain in tile unit for long periods of render your unit inoperable. time. Sediments or minerals can deposit on pump parts and •...
Page 18 Troubleshooting TROUBLESHOOTING Problem Correction Cause Replace nozzle with high pressure Low pressure nozzle installed. nozzle. Water inlet is blocked. Clear inlet. Inadequate water supply. Provide adequate water flow. Inlet hose is Idnl<ed or leaking. Straighten inlet hose, patch leak. Pump has following problems: Check and clean inlet hose...
Page 19 Effective September 1, 2004 replaces all undated Warranties and all Warranties dated before September 1, 2004 LiMiTED WARRANTY Briggs & Stratton Power Products Group, LLC will repair or replace, free of charge, any part(s) of the equipment that is defective in material or workmanship or both.
Page 20 Reglas de Seguridad CONSERVE ESTAS INSTRUCCIONES TABLA DE CONTENIDOS REGLAS DE SEGURiDAD Secci6n I Reglas De Seguridad ...... 20-22 [:ste es e[ simbolo de alerta de seguridad. Sirve Secci6n 2 Caracteristicas y Controles ....para advertir a[ usuario de un posible riesgo para Secci6n 3...
Page 21 Secd6n 1: Reglas de Seguddad ADVERTENClA CUANDO AI_ADA COHBUSTIBLE Apague el lavado=_l de presi6n (posici6n OFF) y dejelo enfriar al menos pot 2 minutos antes de remover la tapa de la gasolina. Opere el lavadora de presi6n SOLAMENTE al aire libre. Llene el tanque al aire libre.
Page 22 Secci6n 1: Reg|as de Seguridad ADVERTENClA ADVERTENClA Siempre use protecci6n par3 los ojos cuando utilice este equipo o cuando est_ cerca de donde se est_ usando el equipo. PRECAUCION NO toque las superficies calientes y evite los gases del escape a alta NO iuegue con partes que puedan aumentar o disminuir la velocidad...
Page 23 Caracteristicas y Controles CONOZCA SU MAQUINA LAVADORA DE PRESION "'_ Compare Lea el manual las ilustraciones del usuario con su m_quina lavadora a presi6n para familiarizarse y las reglas de seguridad antes de poner en marcba con las ubicaciones de los diferentes su m_cluina lavadora a presi6n.
Page 24 Montaje PREPARANDO EL LAVADORA MONTAJE ALTA PRESION PARA SU USO IMPORTANTE: Lea totalmente el manual del usuario antes que intente ensamblar u operar su lavador a alta presi6n. Si usted tiene un problema al ensamblar la unidad o si hacen falta algunas piezas o se encuentran da_adas, Ilame a la linea directa del Remueva...
Page 25 Secci6n 3: Monta]e Inserte el perno del soporte a trav6s de los orificios desde Inserte las boquillas de colores ProjectPro TM y el resto de fuera de la unidad Y sujete una perilla de pl;_stico desde el los accesorios en los espacios correspondientes de la bandeja de accesorios.
Page 26 Secci6n 3: Montaje Haga correr el agua a trav6s de la manguera de su jardin pot Conecte la Manguera y el Suministro 30 segundos para limpiar cualquier escombro que se Agua a la Bomba encuentre en ella. Corte el agua. IMPORTANTE: Usted deber_ armar la extensi6n para boquillas...
Page 27 Operaci6n COMO USAR SU MAQUINA C6mo Darle Arranque a su M_quina Lavadora a Presi6n LAVADORA A PRESION Para darle arranque a su m;_quina lavadora a presion movida a Si tiene problemas operando su m_quina lavadora a presi6n, pot* motor pot* primera vez, siga estas instrucciones paso a paso.
Page 28 Secci6n 4: Operaci6n Cuando arranque el motol_ col6quese en la posici6n ADVERTENCIA recomendada en la Figura 33 y siga las instrucciones manual del usuario del motor: Consulte tambi6n la etiqueta de instrucciones situada en la limpiadora a presi6n. NO toque las superficies calientes y evite los gases del escape a alta ternpgratura,...
Page 29 Secci6n 4: Operaci6n Desplace hacia arras el anillo del conector r_pido y tire de Utilizaci6n de la Bandeja de Accesorios las boquillas Pro}ectPro TM. Guarde las boquillas ProjectPro TM La unidad est_ equipada con una bandeja de accesorios en el soporte de la bandeja de accesorios.
Page 30 Secci6n 4: Operaci6n Para una limpieza mils efectiva, mantenga la boquilla de rociado de 8 a 24 pulgadas de la superficie de limpieza. Si coloca la boquilla muy cerca, podria dafiar la superficie que estfi limpiando. NO coloque la boquilla a menos de 6 pulgadas cuando est& limpiando Ilantas.
Page 31 Secci6n 4: Operaci6n Para apiicar e[ detergente, siga los siguientes pasos: Mantenga la pistola de rociado a una distancia segura del _rea Revise el uso de la boquilla ProjectPro Tin. que planea rocial: Prepare la soluci6n detergente siguiendo las instrucciones fabricante.
Page 32 Mantenimiento ESPECIFICACIONES MANTENIMIENTO DE LA Presi6n de Salida M_xirna ..... 2200 PSI MAQUINA LAVADORA Caudal H&×imo ....2.2 galones por minuto (gpm) PRESlON Detergente Use el detergente adecuado para lavadores a presion Temperatura del Suministro Revise y Limpie el Coiador de Entrada deAgua ......
Page 33 Secci6n 5: Mantenimiento Retire la pistola y la extensi6n para boquillas de la manguera Conecte de nuevo la extensi6n de la boquilla a la pistola rociadora. de alta presi6n. Retire la extensi6n para boquillas de la pistola y retire el anillo %' y el colador de la extensi6n para Conecte...
Page 34 Secci6n 5 y 6: mantenimiento y Almacenamiento Incline la limpiadora a presi6n hacia un lado para que vaciar El salvador de la bomba de la marca del uso a previene la completamente la bomba de aceite, y vierta este en un corrosi6n construye y helado de bomba.
Page 35 Diagnosticos de Averias REPARACION DE AVERIAS Problema Causa $oluci6n Est_ usando la boquilla de baja presi6n Cambie la boquilla a una de las tres (negra). boquilla de alta presi6n. La en[rada de agua estA bloqueada. Limpie la entrada. Suministro de agua inadecuado. Proporcione flujo de agua adecuado.
Page 36 Fecha de entrada en vigor: t de Septiembre de 2004, Sustituye a todas ]as garantias sin fecha y alas de fecha anterior al t de Septiembre de 2004 GARANTiA LIMITADA Briggs & Stratton Power Products Group, LLC reparara o sustituira sin cargo alguno cuatquier componente del equipo que presente defectos de materiales y/o mano de obra Los gastos de transporte de las piezas enviadas para reparar o sustituir conforme a los terminos de esta garantia correran a cargo det comprador.
