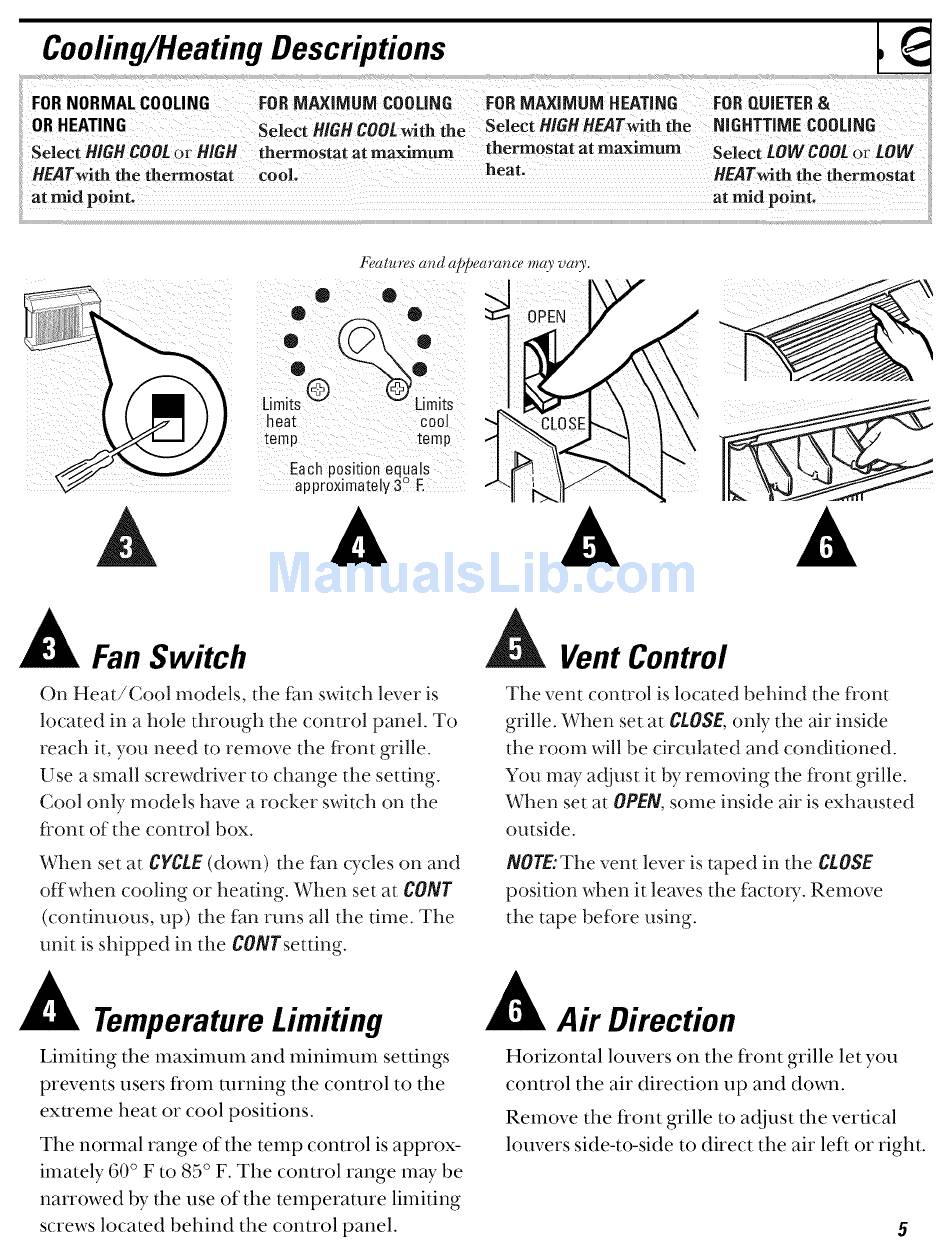

Cooling/Heating Descriptions
FOR NORMAL COOLING FOR MAXIMUM COOLING FOR MAXIMUM HEATING FOR QuiETER&
HIGH COOLvfith
se!ect HIGH HEATwlth
NiGHTTiME COOLING
select HIGH C00£ or HIGH thermOstat at maximum thermostat at maximum select LOW COOL or Low
HEATwlth the the_OStat heat. HEAT_dth the thermoStat
b)¢atu_ and @pearance m@' vaU.
@ 0
O ®
• %.
®
Limits @ its
heat cool
[emp temp
Each position equals
a pproximately 3° F.
OPEN
Fan Switch
On Heat/Cool models, the tim switch lever is
located in a hole through the control panel. To
reach it, you need to remove the front grille.
Use a small screwdriver to change the setting.
Cool only models have a rocket" switch on the
fi'ont of the control box.
When set at CYCLE (clown) the tim cycles on and
offwhen cooling or heating. When set at CONT
(continuous, up) the fan runs all the time. The
unit is shipped in the CONTsetting.
A Vent Control
The vent control is located behind the front
grille. When
set at CLOSE, only the air inside
the room will be circulated and conditioned.
You may adjust it 1)?7 removing the fi'ont grille.
When set at OPEN, some inside air is exhausted
outside.
NOTE: The vent lever is taped in the CLOSE
position when it leaves the factory. Remove
the tape before using.
Temperature Limiting
Limiting the maximmn and mininmm settings
prevents users from turning the control to the
extreme heat or cool positions.
The normal range of the temp control is approx-
imately 60° F to 85 ° F. The control range m W be
narrowed by the use of the temperature limiting
screws located behind the control panel.
A# Direction
Horizontal louvers on the front grille let you
control the air direction up and clown.
Remove the fi'ont grille to adjust the vertical
louvers side-to-side to direct the air left or right.
