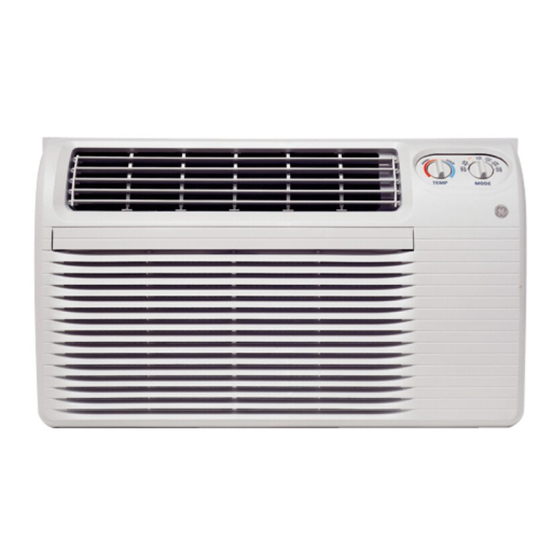

GE 10 ACA Owner's Manual

Ge airconditioner owner's manual and installation instructions.
Hide thumbs

Advertisement

www.GEAppliances.com
Safety Information
Connecting Electricity . . . . . . . . . . .3
Safety Precautions . . . . . . . . . . . . . . 2
Operating Instructions
Air Direction . . . . . . . . . . . . . . . . . . . 6
Controls . . . . . . . . . . . . . . . . . . . . . 5, 6
Fan Switch . . . . . . . . . . . . . . . . . . . . . 6
Temperature Limiting . . . . . . . . . .6
Vent Control . . . . . . . . . . . . . . . . . . .6
Care and Cleaning
Air Filter . . . . . . . . . . . . . . . . . . . . . . . 8
Front Grille . . . . . . . . . . . . . . . . . . . . .7
Grille and Case . . . . . . . . . . . . . . . . . 7
Outdoor Coils . . . . . . . . . . . . . . . . . . 7
Installation
Existing Wall Case . . . . . . . . . . 10-12
Preparing to Install . . . . . . . . . . . . . 9
Consumer Support
Consumer Support . . . . Back Cover
Warranty . . . . . . . . . . . . . . . . . . . . . 15
Write the model and serial numbers here:
# ________________________________
# ________________________________
Find these numbers on a label on the
front of the base pan behind the front grille.
Owner's Manual and
Installation Instructions
Chassis Only
Cool Only:
AJCH 08, 10
AJCH 10, 12
AJCS 06
AJCS 08, 10
AJCS 09, 10, 12
Heat/Cool: AJES 09, 10, 12
AJEH 12
Heat Pump: AJHS 08, 10
49-7397 10-00 JR
ACA
DCA
LCA
ACA
DCA
DCA
DCA
DCA

Advertisement

   Related Manuals for GE 10 ACA

   Summary of Contents for GE 10 ACA

  • Page 1: Table Of Contents

    www.GEAppliances.com Safety Information Adapter Plugs ....4 Connecting Electricity ...3 Extension Cords ....4 Safety Precautions .

  • Page 2: Important Safety Information

    SAFETY PRECAUTIONS Use this appliance only for its intended purpose as described in this Owner’s Manual. This air conditioner must be properly installed in accordance with the Installation Instructions before it is used. Never unplug your air conditioner by pulling on the power cord. Always grip plug firmly and pull straight out from the receptacle.

  • Page 3: Connecting Electricity

    3-prong wall outlet. www.GEAppliances.com The air conditioner should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.

  • Page 4: Use Of Adapter Plugs

    If the adapter ground terminal breaks, DO NOT USE the air conditioner until a proper ground has been established. Attaching the adapter ground terminal to a wall outlet cover screw does not ground the appliance...

  • Page 5: Controls

    Heat Pump Models When the outdoor temperature is lower than 25°F., heat is provided by the electric heater in the air conditioner instead of by the heat pump. NOTE: The electric resistance heater in the 115-volt heat pump model operates during defrost when the outdoor coil temperature is below 36°F.

  • Page 6: Air Direction

    About the controls on the air conditioner. Fan Switch On Heat/Cool models, the fan switch lever is located in a hole through the control panel. To reach it, you need to remove the front grille. Use a small screwdriver to change the setting. Cool only models have a rocker switch on the front of the control box.

  • Page 7: Front Grille

    If they are clogged with dirt or soot they may be professionally steam cleaned, a service available through your GE service outlet. Front Grille The front grille can be removed for more thorough cleaning or to make the model and serial numbers accessible.

  • Page 8: Air Filter

    Replacement filters are available from your salesperson, GE dealer, GE Service and Parts Center or authorized Customer Care® servicers.

  • Page 9: Preparing To Install

    NOTE TO CONSUMER: Keep this Owner’s Manual and Installation Instructions for future use. IMPORTANT NOTES: For personal safety, this air conditioner must be properly grounded. It is important to have the wall outlet and circuit checked by a qualified electrician if there is any doubt as to whether a proper ground exists.

  • Page 10: Installing A J-model In An Existing Wall Case

    Read these instructions completely and carefully. IMPORTANT! GE strongly recommends the removal of the old wall case and the installation of a new GE Wall Case. If you decide to keep the existing wall case, you may need a kit to ensure proper performance.

  • Page 11

    RAG14E For: Description: GE RAB13, 14 & 15 Fits all GE wall cases 26 W x 18 H x 24 D (ACLB & RCL Chassis) Hotpoint ACXB10 & 11 Adapts an older Hotpoint wall case to a “J” (ACTB Chassis) model chassis.

  • Page 12

    Installing a J-Model in an existing wall case. Read these instructions completely and carefully. Install the Air Conditioner in the Case. Remove the locking plate on the front left side. Locking plate Remove screw Remove the shipping pad inside the air conditioner next to the compressor.

  • Page 13

    Notes. www.GEAppliances.com...

  • Page 14: Troubleshooting Tips

    • Clean the filter at least every 30 days. See the Care and cleaning of the air conditioner section. • When the air conditioner is first turned on you need to allow time for the room to cool down or warm up.

  • Page 15: Air Conditioner Warranty

    Any part of the air conditioner which fails due to a defect in materials or workmanship. One Year During this full one-year warranty, GE will also provide, free of charge, all labor From the date of the and in-home service to replace the defective part.

  • Page 16: Consumer Support

    Caution must be exercised, since improper servicing may cause unsafe operation. Contact Us If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations Register Your Appliance Register your new appliance on-line—at your convenience! Timely product registration will allow for...
