Nautilus Be Strong Commercial Series U916 Assembly Manual

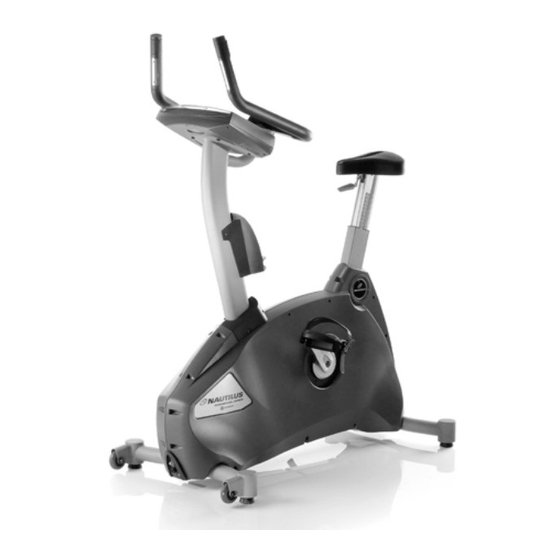

Commercial series bike
Hide thumbs
Also See for Be Strong Commercial Series U916:
- Owner's manual (52 pages) ,
- Service manual (68 pages) ,
- Manual (36 pages)
Related Manuals for Nautilus Be Strong Commercial Series U916
Summary of Contents for Nautilus Be Strong Commercial Series U916

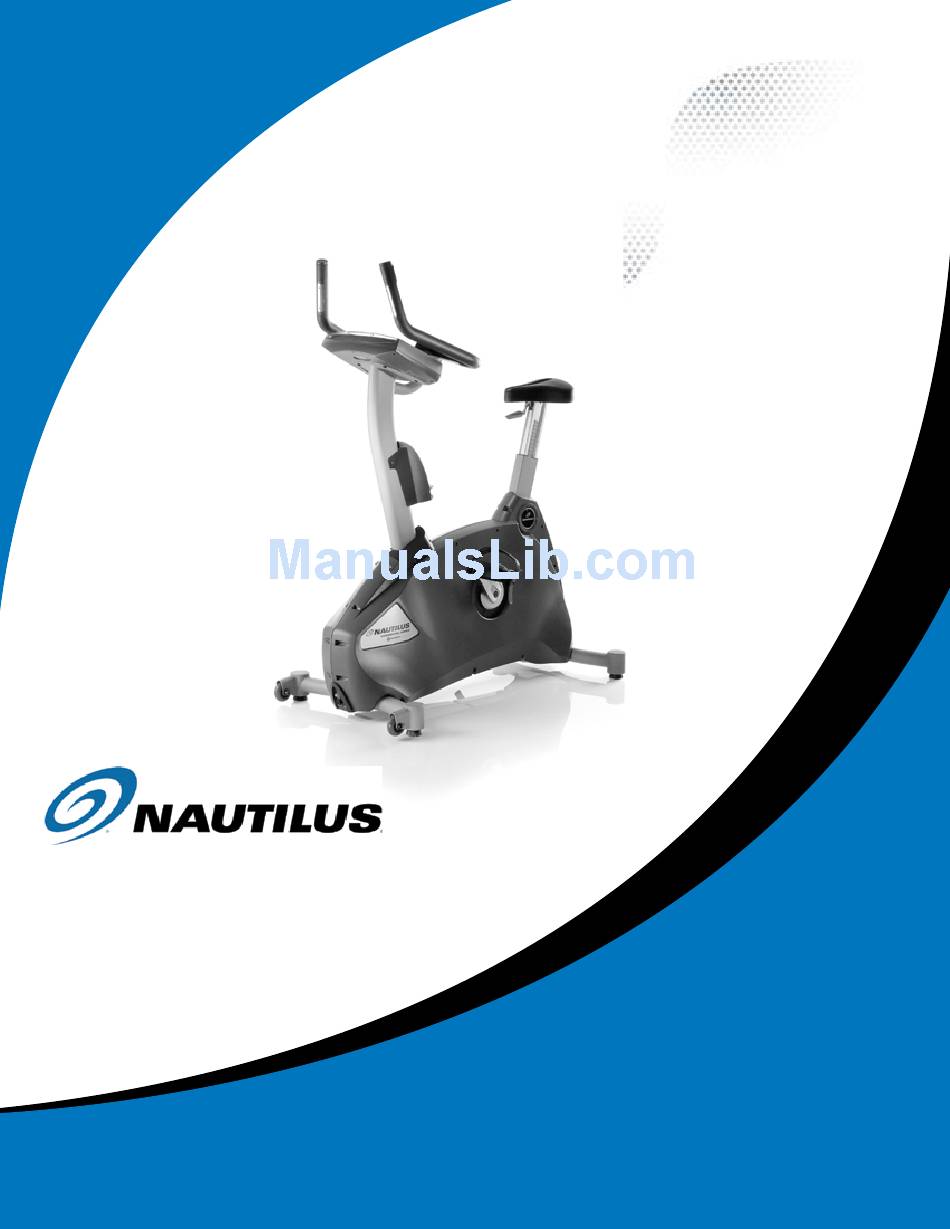

- Page 1 Be Strong. ™ Assembly Manual Commercial Series Bike U916 Model: U916 P/N: 001-6883 Rev D (03/28/07)
- Page 2 Inc. has been producing the world’s finest fitness equipment used in health clubs and homes around the globe. We hope this product exceeds your expectations and is a valuable tool for your facility. Please carefully read through this manual to familiarize yourself with the operation of your new Nautilus ®...
-
Page 3: Table Of Contents
Before You Assemble ..... 6 Parts List / Box Contents ....7 Hardware and Tool List ....8 Assembly Guide ......9 Quick Start Guide ......14 Warranty Information ....15 Contacting Nautilus ...... 16 Nautilus® Commercial Series Bike Assembly Manual... -
Page 4: Product Features
product features C51 CONSOLE REMOTE OPERATION CONTROLS ™ MODEL: U916 SEAT ADJUSTMENT... -
Page 5: Product Specifications
24”w x 45”l x 57”h / 60.96 cm x 114.3 cm x 144.78 Dimensions: 178 lbs / 81 kg Shipping Weight: 150 lbs / 68 kg Net Weight: Self Generating Power Requirements: 9V AC/DC Power Supply (Battery Charger) Nautilus® Commercial Series Bike Assembly Manual... -
Page 6: Before You Assemble
2. As a general rule, and for all fasteners on your Nautilus® Do not grasp or move the the machine by holding onto the Commercial Series Bike, turning toward the right will computer console. -
Page 7: Parts List / Box Contents
/ box contents PARTS LIST / BOx CONTENTS REF # DESCRIPTION Console Console Mast Main Frame Seat assembly Handlebar Right Mast Shroud Left Mast Shroud Water Bottle Holder Hardware Pack (not shown) Nautilus® Commercial Series Bike Assembly Manual... -
Page 8: Hardware And Tool List
Hardware and tool list HARDWARE BAG - NOTE: ILLuSTRATIONS ARE NOT TO SCALE. The Hardware Bag contains the following individual parts and tools. Ref #1 Allen Head Bolt M10x25 Qty. 4 Ref #2 Spring Washer M10 Qty. 4 Ref #3 Flat Washer M10 Qty. 4 Ref #9 6mm Allen Wrench / Phillips Screwdriver Ref #4 Phillips Head Screw 1/4”x20 Qty. -
Page 9: Assembly Guide
The following instructions provide direction in assembling the base unit for the Nautilus® Commercial Series Bike model U916. All instructions in the manual are given with the orientation of sitting on the bike facing the console. The console is the front, while the seat is the back. - Page 10 assembly guide Step 2: Locate the following for this step: Parts: Figure 2: • Handlebar (E) Hardware: • Ref #6 Allen Head Bolt M8x20 Qty. 4 • Ref #7 Spring Washer M8 Qty. 4 Tools: • 6mm Allen Wrench 2-1 Connect the attached long Wire Tie (L) to the handlebar cables (M) and use it to pull the cables out through the Mast (B) as shown in fig 3.
- Page 11 NV915 installation manual at this time. If not installing the LCD Monitor, tuck the TV Cables (S) into the Mast. 3-7 Align the Console with the Mast, install and completely tighten the hardware. Nautilus® Commercial Series Bike Assembly Manual...
- Page 12 assembly guide Step 4: Locate the following for this step: Figure 7: Parts: • Right Mast Shroud (F) • Left Mast Shroud (G) Hardware: • Ref #8 Phillips Head Screw #10-32x3/4” Qty. 3 Tools: • Phillps Head Screwdriver 4-1 Align Right (F) and Left (G) Mast Shroud on each side of Mast as shown.
-
Page 13: Quick Start Guide
[Level: DOWN] key to decrease the resistance. * R916 console shown. Same instructions apply to U916 console. WARNING: For detailed information on use and safety, refer to your Owner’s Manual file located on CD ROM. Nautilus® Commercial Series Bike Assembly Manual... - Page 14 3 Years- Mechanical and electrical parts Nautilus Dealer is the responsibility of the purchaser. 1 Year- Labor 1. Nautilus will have the option to repair or replace any 1 Year - Wear items exercise product, which requires service. 2. Nautilus will replace any equipment frame that is...
-
Page 15: Warranty Information
If you need assistance, please have both the serial number of your machine and the date of purchase available when you contact the appropriate Nautilus office listed below. INTERNATIONAL CUSTOMER SERVICE WORLDWIDE CUSTOMER SERVICE • NORTH AMERICA OFFICE •... -
Page 16: Contacting Nautilus
® equipment for your home, visit www.Nautilus.com. © 2007 Nautilus, Inc. All rights reserved. Nautilus, the Nautilus logo, Remote Operation Control, Be Strong are either registered trademarks or trademarks of Nautilus, Inc. Nautilus, Inc. World Headquarters, 16400 SE Nautilus Drive, Vancouver, Washington, uSA 98683, 1-800-628-8458, www.Nautilus.com.
