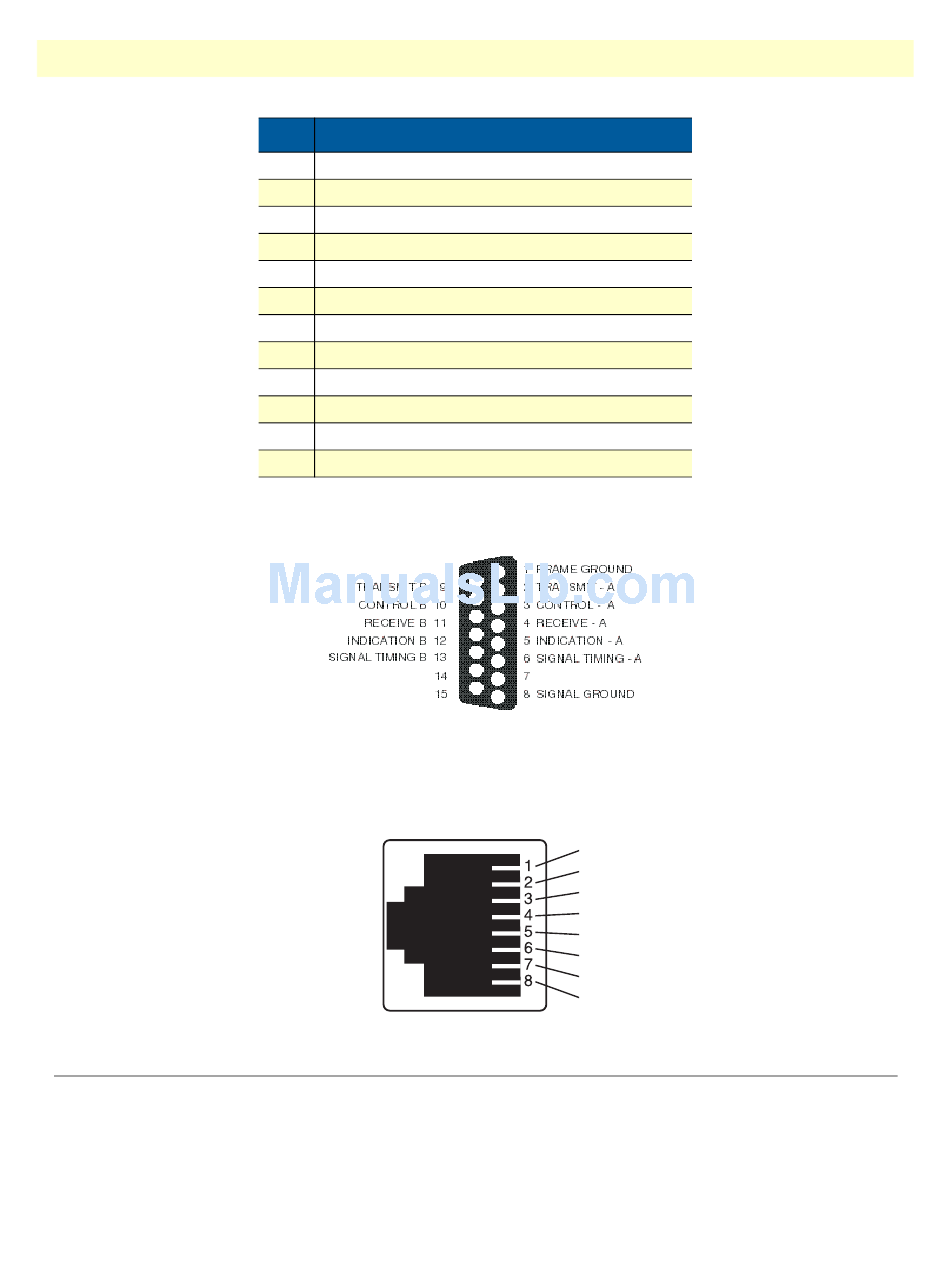

D • Physical Connectors
X.21 (DB-15 Connector)

E1/T1 (RJ-48C Connector)

Power input

IEC 320 connector (two prong).
162
Pin #
14 TD/(Transmit Data-A, DTE Source)
15 TC(Transmitter Clock-B, DCE Source)
16 RD (Receive Data-A, DCE Source)
17 RC (Receiver Clock-A, DCE Source)
18 LL (Local LIne Loop)
19 RTS/(Request to Send-B, DTE Source)
20 DTR (Data Terminal Ready-A, DTE Source)
21 RL (Remote Loopback)
22 DSR/ (Data Set Ready-B, DCE Source)
23 DTR/(Data Terminal Ready-B, DTE Source)
24 XTC (External Transmitter Clock-A, DTE Source)
25
Model 3086 G.SHDSL Integrated Access Device User Guide
Signal
TM (Test Mode)

Power input
