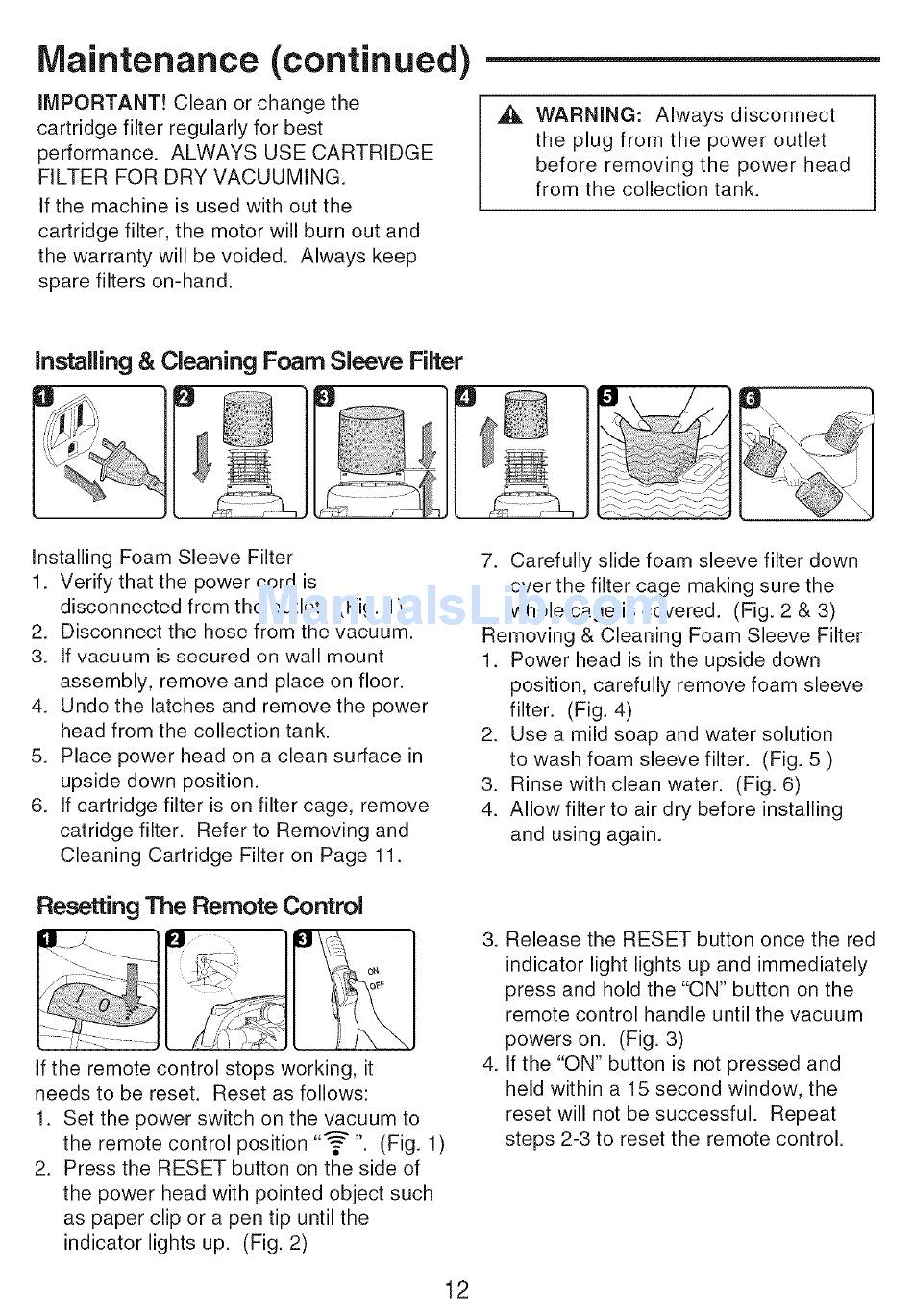

Maintenance (continued)
IMPORTANT! Clean or change the
cartridge filter regularly for best
performance. ALWAYS USE CARTRIDGE
FILTER FOR DRY VACUUMING.
If the machine is used with out the
cartridge filter, the motor will burn out and
the warranty will be voided. Always keep
spare filters on-hand.
,_k WARNING: Always disconnect
the plug from the power outlet
before removing the power head
from the collection tank.
Installing & Cleaning Foam Sleeve Filter
Installing Foam Sleeve Filter
1. Verify that the power cord is
disconnected from the outlet. (Fig. 1)
2. Disconnect the hose from the vacuum.
3. If vacuum is secured on wall mount
assembly, remove and place on floor.
4. Undo the latches and remove the power
head from the collection tank.
5. Place power head on a clean surface in
upside down position.
6. If cartridge filter is on filter cage, remove
catridge filter. Refer to Removing and
Cleaning Cartridge Filter on Page 11.
7. Carefully slide foam sleeve filter down
over the filter cage making sure the
whole cage is covered. (Fig. 2 & 3)
Removing & Cleaning Foam Sleeve Filter
1. Power head is in the upside down
position, carefully remove foam sleeve
filter. (Fig. 4)
2. Use a mild soap and water solution
to wash foam sleeve filter. (Fig. 5 )
3. Rinse with clean water. (Fig. 6)
4. Allow filter to air dry before installing
and using again.
Resetting The Remote Control
If the remote control stops working, it
needs to be reset. Reset as follows:
1. Set the power switch on the vacuum to
the remote control position "_" (Fig. 1)
2. Press the RESET button on the side of
the power head with pointed object such
as paper clip or a pen tip until the
indicator lights up. (Fig. 2)
3. Release the RESET button once the red
indicator light lights up and immediately
press and hold the "ON" button on the
remote control handle until the vacuum
powers on. (Fig. 3)
4. If the "ON" button is not pressed and
held within a 15 second window, the
reset will not be successful. Repeat
steps 2-3 to reset the remote control.
12
