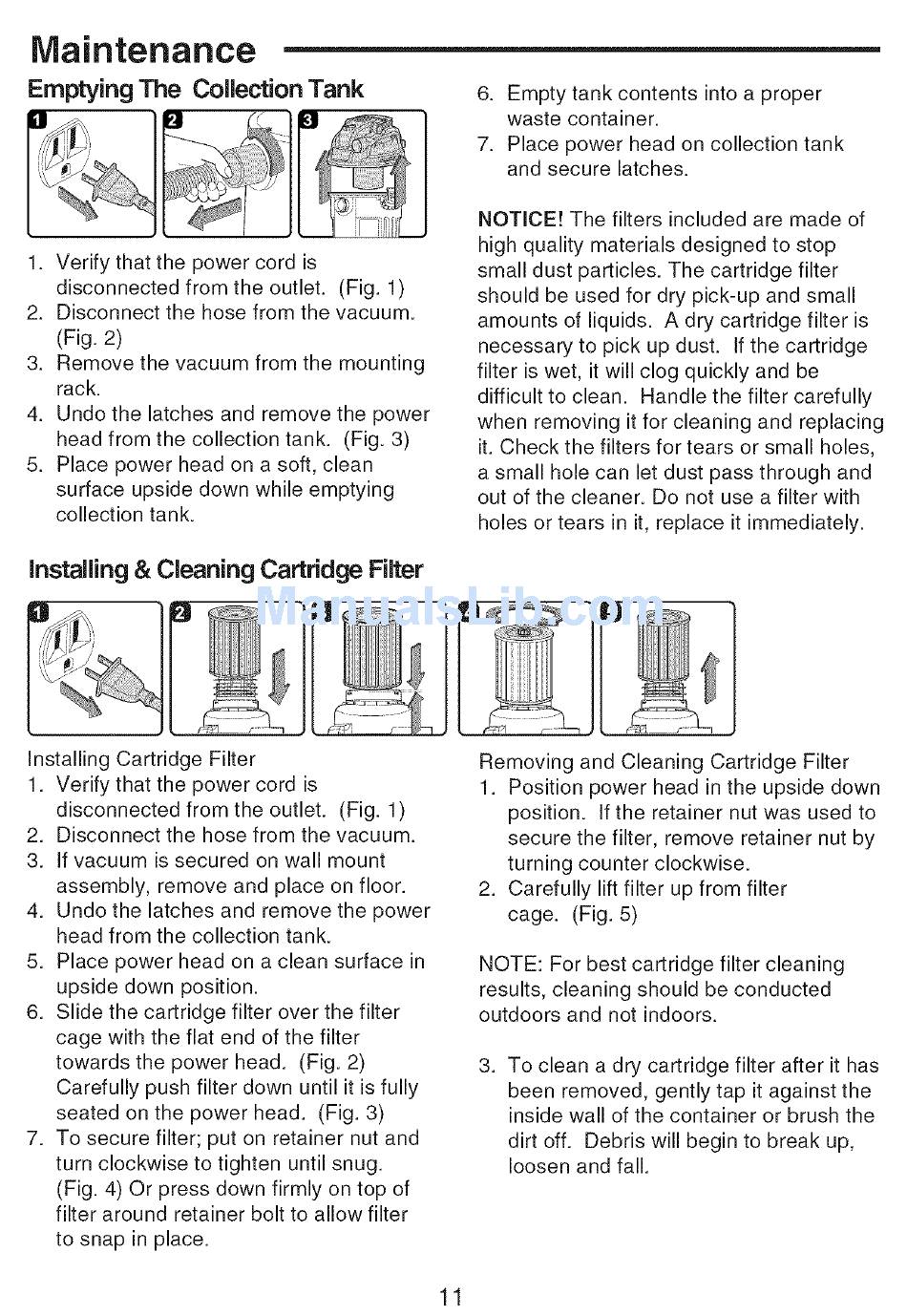

Maintenance
Emptying The Collection Tank
1. Verify that the power cord is
disconnected from the outlet. (Fig. 1)
2. Disconnect the hose from the vacuum.
(Fig. 2)
3. Remove the vacuum from the mounting
rack.
4. Undo the latches and remove the power
head from the collection tank. (Fig. 3)
5. Place power head on a soft, clean
surface upside down while emptying
collection tank.
6. Empty tank contents into a proper
waste container.
7. Place power head on collection tank
and secure latches.
NOTICE! The filters included are made of
high quality materials designed to stop
small dust particles. The cartridge filter
should be used for dry pick-up and small
amounts of liquids. A dry cartridge filter is
necessary to pick up dust. If the cartridge
filter is wet, it will clog quickly and be
difficult to clean. Handle the filter carefully
when removing it for cleaning and replacing
it. Check the filters for tears or small holes,
a small hole can let dust pass through and
out of the cleaner. Do not use a filter with
holes or tears in it, replace it immediately.
Installing & Cleaning Cartridge Filter
Installing Cartridge Filter
1. Verify that the power cord is
disconnected from the outlet. (Fig. 1)
2. Disconnect the hose from the vacuum.
3. If vacuum is secured on wall mount
assembly, remove and place on floor.
4. Undo the latches and remove the power
head from the collection tank.
5. Place power head on a clean surface in
upside down position.
6. Slide the cartridge filter over the filter
cage with the flat end of the filter
towards the power head. (Fig. 2)
Carefully push filter down until it is fully
seated on the power head. (Fig. 3)
7. To secure filter; put on retainer nut and
turn clockwise to tighten until snug.
(Fig. 4) Or press down firmly on top of
filter around retainer bolt to allow filter
to snap in place.
Removing and Cleaning Cartridge Filter
1. Position power head in the upside down
position. If the retainer nut was used to
secure the filter, remove retainer nut by
turning counter clockwise.
2. Carefully lift filter up from filter
cage. (Fig. 5)
NOTE: For best cartridge filter cleaning
results, cleaning should be conducted
outdoors and not indoors.
3. To clean a dry cartridge filter after it has
been removed, gently tap it against the
inside wall of the container or brush the
dirt off. Debris will begin to break up,
loosen and fall.
