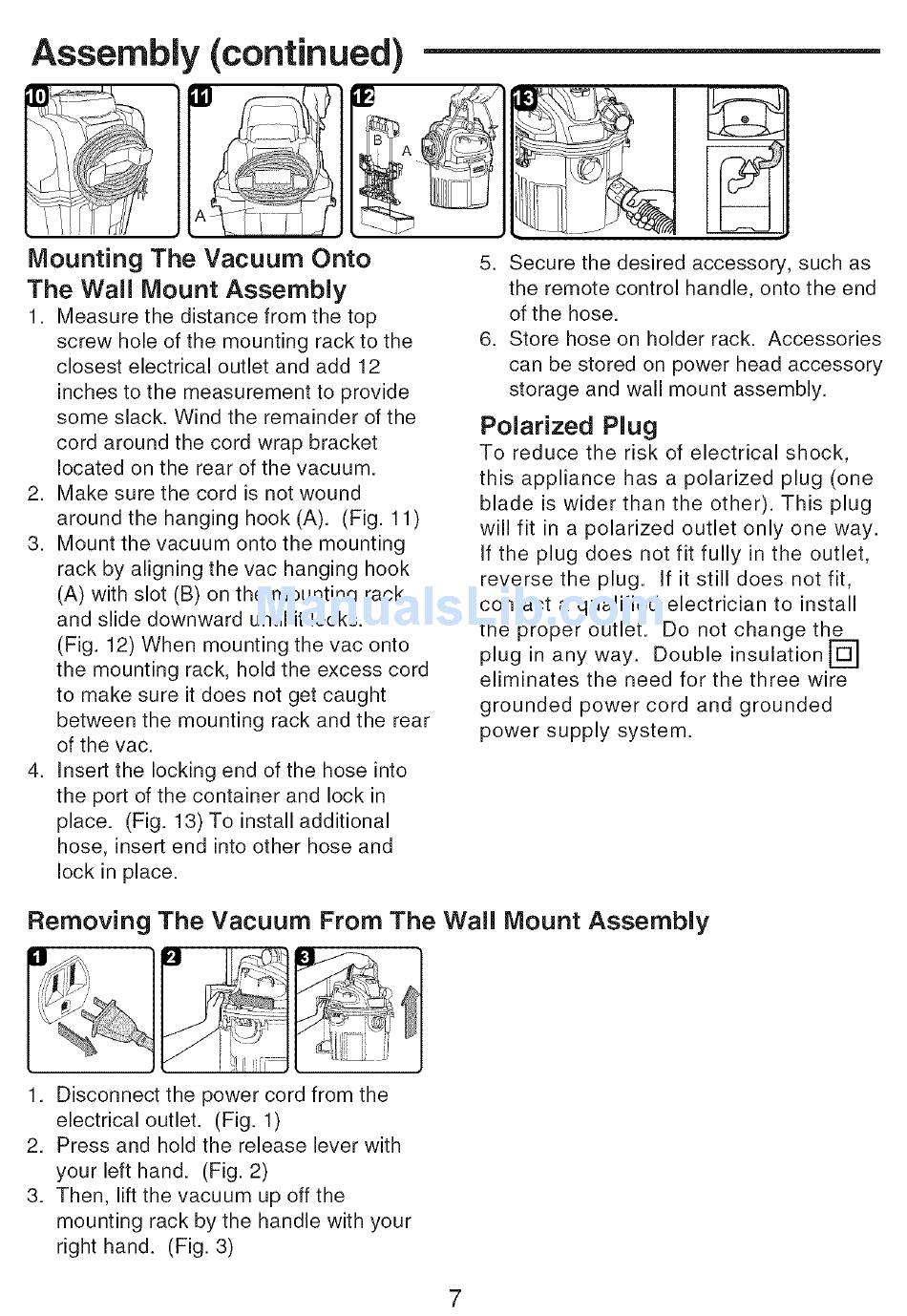

Assembly (continued)
Mounting The Vacuum Onto
The Wall Mount Assembly
1. Measure the distance from the top
screw hole of the mounting rack to the
closest electrical outlet and add 12
inches to the measurement to provide
some slack. Wind the remainder of the
cord around the cord wrap bracket
located on the rear of the vacuum.
2. Make sure the cord is not wound
around the hanging hook (A). (Fig. 11)
3. Mount the vacuum onto the mounting
rack by aligning the vac hanging hook
(A) with slot (B) on the mounting rack
and slide downward until it locks.
(Fig. 12) When mounting the vac onto
the mounting rack, hold the excess cord
to make sure it does not get caught
between the mounting rack and the rear
of the vac.
4. Insert the locking end of the hose into
the port of the container and lock in
place. (Fig. 13) To install additional
hose, insert end into other hose and
lock in place.
5. Secure the desired accessory, such as
the remote control handle, onto the end
of the hose.
6. Store hose on holder rack. Accessories
can be stored on power head accessory
storage and wall mount assembly.
Polarized Plug
To reduce the risk of electrical shock,
this appliance has a polarized plug (one
blade is wider than the other). This plug
will fit in a polarized outlet only one way.
If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit,
contact a qualified electrician to install
the proper outlet. Do not change the
plug in any way. Double insulation[-D-]
eliminates the need for the three wire
grounded power cord and grounded
power supply system.
Removing The Vacuum From The Wall Mount Assembly
1. Disconnect the power cord from the
electrical outlet. (Fig. 1)
2. Press and hold the release lever with
your left hand. (Fig. 2)
3. Then, lift the vacuum up off the
mounting rack by the handle with your
right hand. (Fig. 3)
