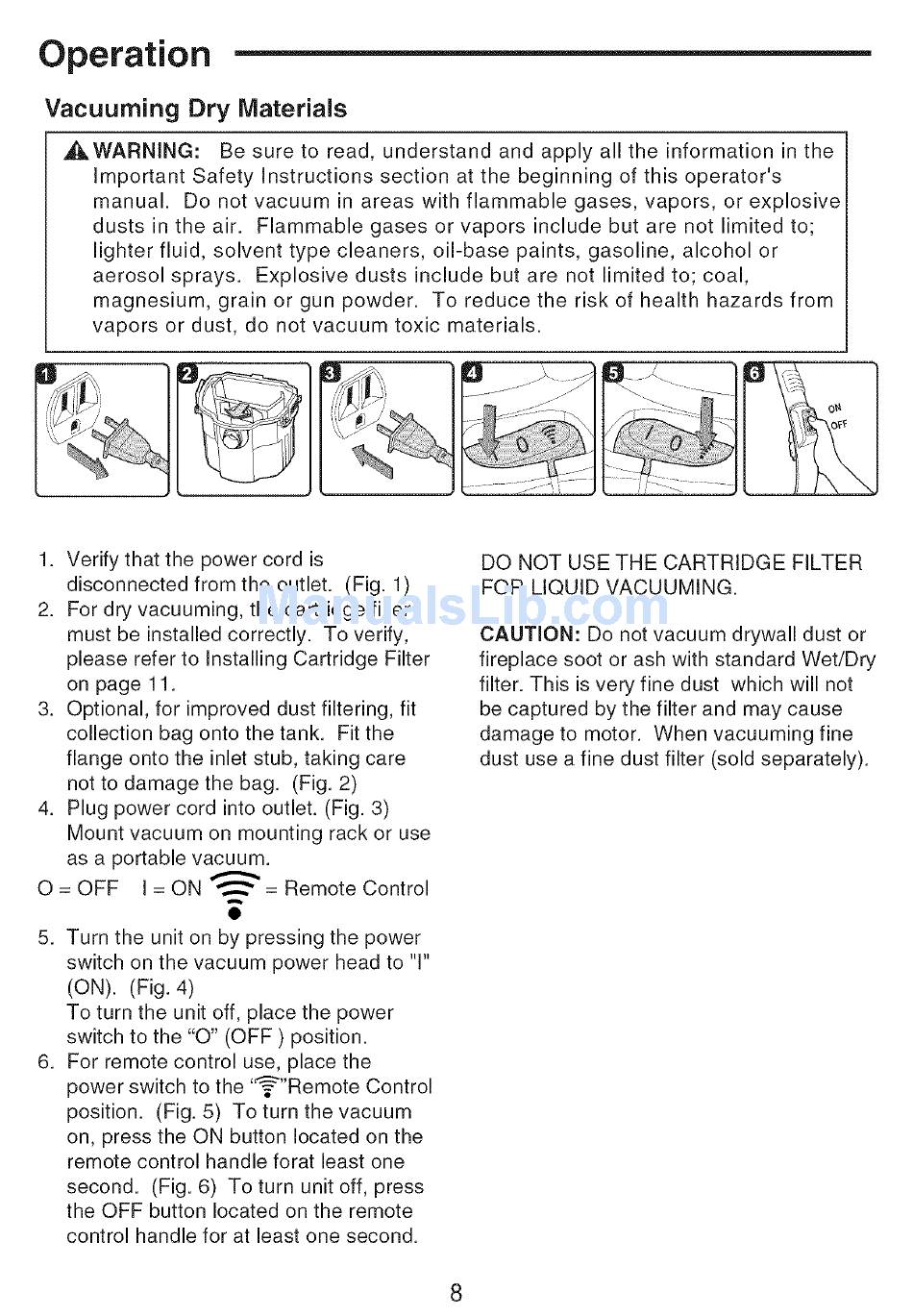

Operation
Vacuuming Dry Materials
,_kWARNING: Be sure to read, understand and apply all the information in the
Important Safety Instructions section at the beginning of this operator's
manual. Do not vacuum in areas with flammable gases, vapors, or explosive
dusts in the air. Flammable gases or vapors include but are not limited to;
lighter fluid, solvent type cleaners, oil-base paints, gasoline, alcohol or
aerosol sprays. Explosive dusts include but are not limited to; coal,
magnesium, grain or gun powder. To reduce the risk of health hazards from
vapors or dust, do not vacuum toxic materials.
1. Verify that the power cord is
disconnected from the outlet. (Fig. 1)
2. For dry vacuuming, the cartridge filter
must be installed correctly. To verify,
please refer to Installing Cartridge Filter
on page 11.
3. Optional, for improved dust filtering, fit
collection bag onto the tank. Fit the
flange onto the inlet stub, taking care
not to damage the bag. (Fig. 2)
4. Plug power cord into outlet. (Fig. 3)
Mount vacuum on mounting rack or use
as a portable vacuum.
0 OFF I ON _ Remote Control
@
5. Turn the unit on by pressing the power
switch on the vacuum power head to "l"
(ON). (Fig. 4)
To turn the unit off, place the power
switch to the "0" (OFF) position.
6. For remote control use, place the
power switch to the '_'"Remote Control
position. (Fig. 5) To turn the vacuum
on, press the ON button located on the
remote control handle forat least one
second. (Fig. 6) To turn unit off, press
the OFF button located on the remote
control handle for at least one second.
DO NOT USE THE CARTRIDGE FILTER
FOR LIQUID VACUUMING.
CAUTION: Do not vacuum drywall dust or
fireplace soot or ash with standard Wet/Dry
filter. This is very fine dust which will not
be captured by the filter and may cause
damage to motor. When vacuuming fine
dust use a fine dust filter (sold separately).
