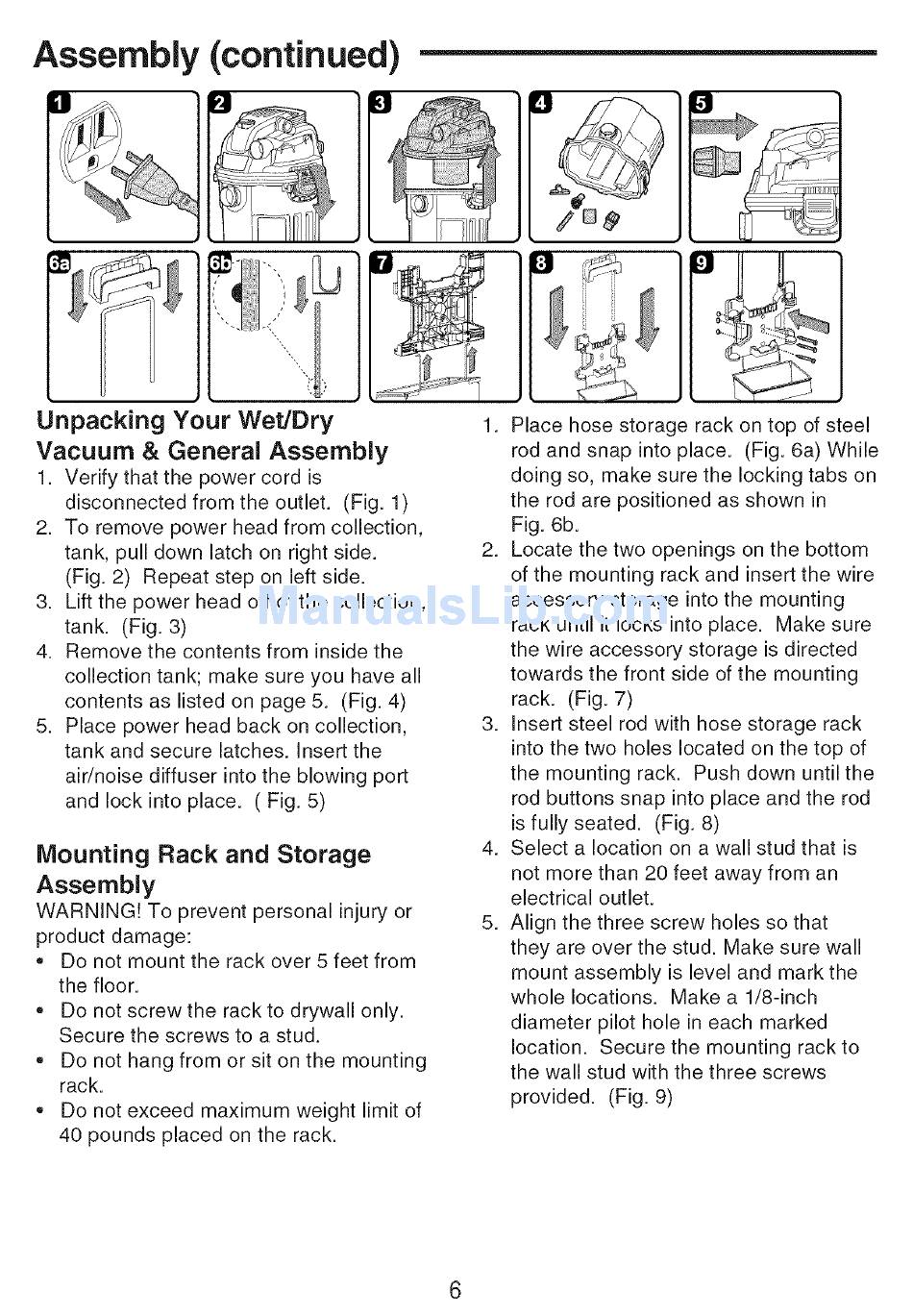

Assembly (continued)
]
Unpacking Your Wet/Dry
Vacuum & General Assembly
1. Verify that the power cord is
disconnected from the outlet. (Fig. 1)
2. To remove power head from collection,
tank, pull down latch on right side.
(Fig. 2) Repeat step on left side.
3. Lift the power head off of the collection,
tank. (Fig. 3)
4. Remove the contents from inside the
collection tank; make sure you have all
contents as listed on page 5. (Fig. 4)
5. Place power head back on collection,
tank and secure latches, insert the
air/noise diffuser into the blowing port
and lock into place. ( Fig. 5)
Mounting Rack and Storage
Assembly
WARNING! To prevent personal injury or
product damage:
• Do not mount the rack over 5 feet from
the floor.
• Do not screw the rack to drywall only.
Secure the screws to a stud.
• Do not hang from or sit on the mounting
rack.
• Do not exceed maximum weight limit of
40 pounds placed on the rack.
1. Place hose storage rack on top of steel
rod and snap into place. (Fig. 6a) While
doing so, make sure the locking tabs on
the rod are positioned as shown in
Fig. 6b.
2. Locate the two openings on the bottom
of the mounting rack and insert the wire
accessory storage into the mounting
rack until it locks into place. Make sure
the wire accessory storage is directed
towards the front side of the mounting
rack. (Fig. 7)
3. Insert steel rod with hose storage rack
into the two holes located on the top of
the mounting rack. Push down until the
rod buttons snap into place and the rod
is fully seated. (Fig. 8)
4. Select a location on a wall stud that is
not more than 20 feet away from an
electrical outlet.
5. Align the three screw holes so that
they are over the stud. Make sure wall
mount assembly is level and mark the
whole locations. Make a 1/8-inch
diameter pilot hole in each marked
location. Secure the mounting rack to
the wall stud with the three screws
provided. (Fig. 9)
