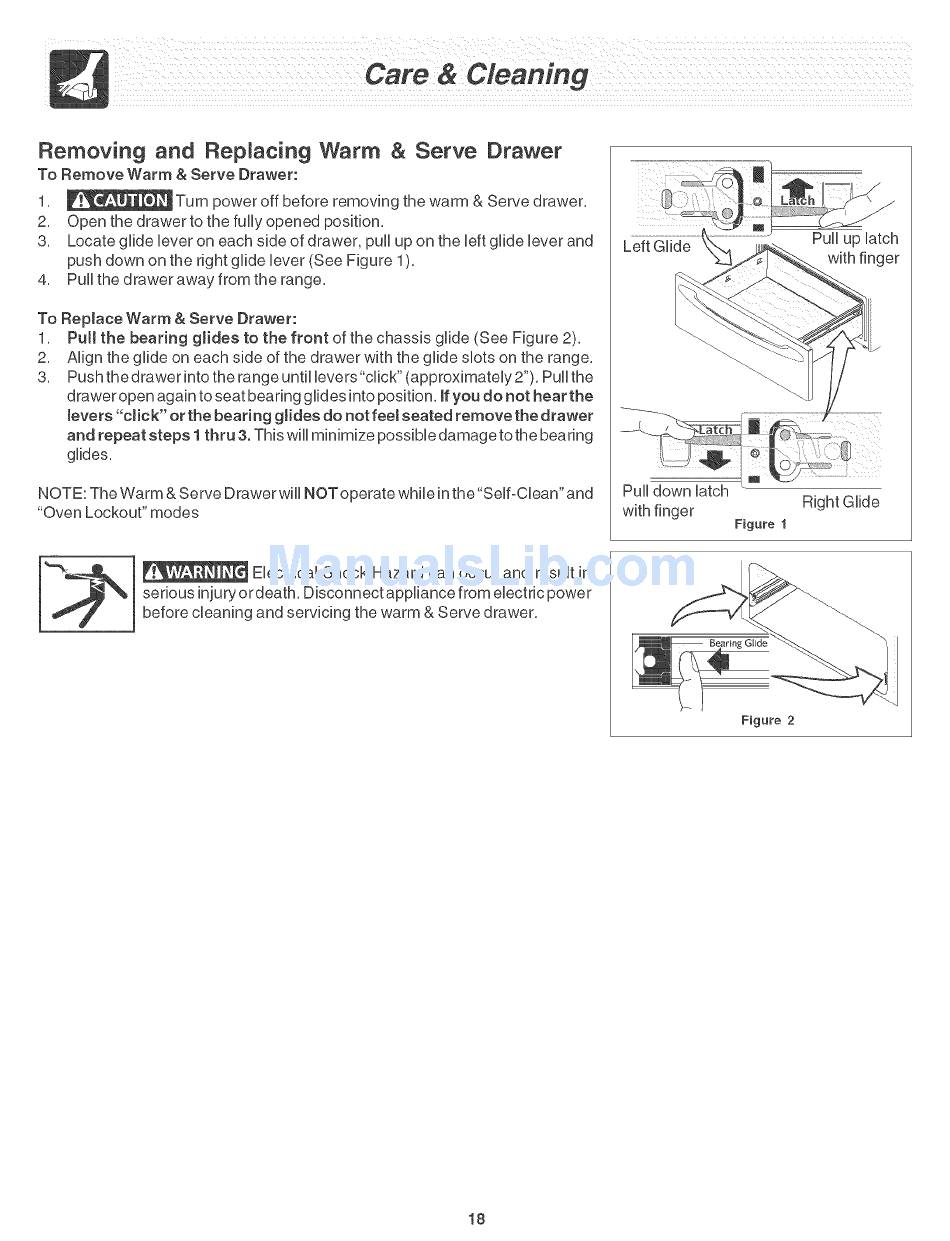

Removing
and Repnacing
Warm & Serve
Drawer
To Remove Warm & Serve Drawer:
1,
_
Turn power off before removing the warm & Serve drawer,
2,
Open the drawer to the fully opened position,
3,
Locate guide Ueveron each side of drawer, pull up on the Ueftguide Ueverand
push down on the right guide Uever(See Figure 1),
4,
Pull the drawer away from the range,
To Replace Warm & Serve Drawer:
1,
Pult the bearing glides to the front of the chassis glide (See Figure 2),
2,
Align the glide on each side of the drawer with the glide slots on the range,
3,
Push the drawer into the range until levers"click" (approximately 2"), Pull the
drawer open again to seat bearing glides into position, If you do not hear the
tevers "click" or the bearing glides do not feel seated remove the drawer
and repeat steps 1 thru 3. This wHU minimize possibUedamage to the bearing
guides,
NOTE: The Warm & Serve D rawer will NOT operate while in the"Self-Clean" and
"Oven Lockout" modes
Left Glide
Pull up latch
with finger
Pull down latch
with finger
Right Glide
Figure
1
Figure
2
18
