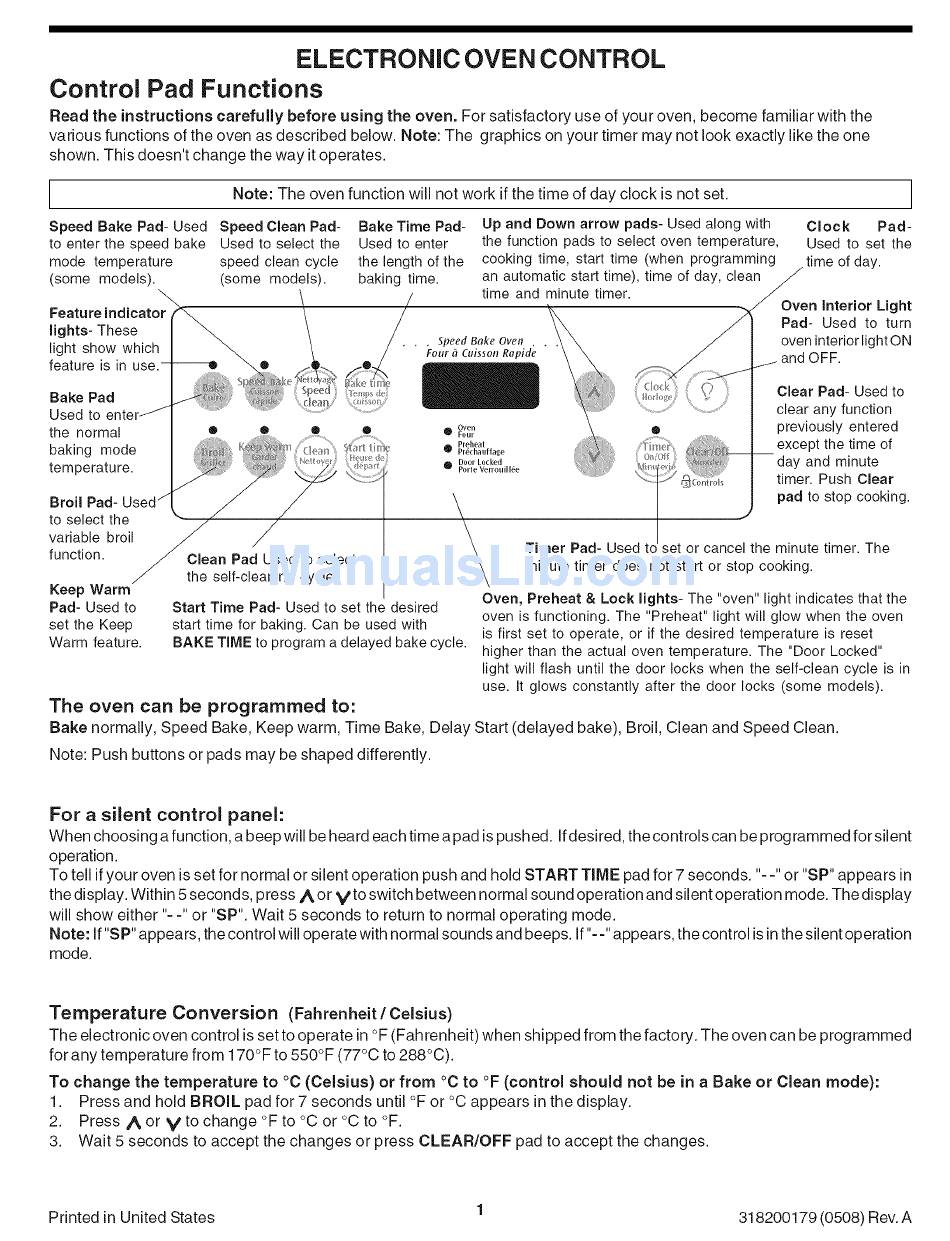

ELECTRONIC OVEN CONTROL
Control
Pad Functions
Read the instructions
carefully before using the oven. For satisfactory use of your oven, become familiar with the
various functions of the oven as described below. Note: The graphics on your timer may not look exactly like the one
shown. This doesn't change the way it operates.
I
Speed Bake Pad- Used Speed Clean Pad-
to enter the speed bake
Used to select the
mode temperature
speed clean cycle
(some models).
(some models).
the normal
baking
mode
temperature.
Broil Pad-
to select the
variable broil
function.
Keep Warm
Pad- Used to
set the Keep
Warm feature.
Note: The oven function will not work if the time of day clock is not set.
Clean Pad Used to select
the self-cleaning
cycle.
Bake Time Pad-
Up and Down arrow pads- Used along with
Used to enter
the function pads to select oven temperature,
the length of the
cooking time, start time (when programming
baking time.
an automatic start time), time of day, clean
/
time and minute timer.
Speed Bake
Over
St
_
Oven
O
0
Four
PReheat
0
Pl_chauffa_e
D0Ol Locked
PORte Veriouill6e
Start Time Pad- Used to set the desired
start time for baking. Can be used with
\
\
BAKE TIME to program a delayed bake cycle.
I
Clock
Pad-
Used to set the
time of day.
Oven Interior
Light
Pad- Used to turn
oven interior light ON
and OFF.
Clear Pad- Used to
clear any function
previously entered
except the time of
--day
and minute
timer. Push Clear
pad to stop cooking.
Timer Pad- Used tc set or cancel the minute timer. The
minute timer does not start or stop cooking.
Oven, Preheat & Lock lights- The "oven" light indicates that the
oven is functioning.
The "Preheat" light will glow when the oven
is first set to operate, or if the desired temperature
is reset
higher than the actual oven temperature.
The "Door Locked"
light will flash until the door locks when the self-clean cycle is in
use. It glows constantly
after the door locks (some models).
The oven
can
be programmed
to:
Bake normally, Speed Bake, Keep warm, Time Bake, Delay Start (delayed bake), Broil, Clean and Speed Clean.
Note: Push buttons or pads may be shaped differently.
For a silent control
panel:
When choosing a function, a beep will be heard each time a pad ispushed. If desired, the controls can be programmed for silent
operation.
To tell ifyour oven is set for normal or silent operation push and hold START TiME pad for 7 seconds. "- -" or "SP" appears in
the display. Within 5 seconds, press _ or V to switch between normal sound operation and silent operation mode. The display
will show either "- -" or "SP". Wait 5 seconds to return to normal operating mode.
Note: If"SP" appears, the control will operate with normal sounds and beeps. If"--" appears, the control isin the silent operation
mode.
Temperature
Conversion
(Fahrenheit / Celsius)
The electronic oven control is set to operate in °F (Fahrenheit) when shipped from the factow. The oven can be programmed
for any temperature from 170°F to 550°F (77°C to 288°C).
To change the temperature
to °C (Celsius)
or from °C to °F (control
should
not be in a Bake or Clean mode):
1.
Press and hold BROIL pad for 7 seconds until °F or °C appears in the display.
2.
Press _,or Vt°
change °F to °C or °C to °F.
3.
Wait 5 seconds to accept the changes or press CLEAR/OFF
pad to accept the changes.
Printed in United States
1
318200179 (0508) Rev. A
