4. Install drives in drive enclosures (1 drive in each enclosure).
a. Remove the top cable access plate of each drive enclosure by removing the 2 T-10 screws which
hold the plate onto the enclosure.
b. Insert the drive interface, SCSI and power cables (in that order) through each drive enclosure
opening (from outside to inside, front to back in the opening). Refer to Figure 5 for proper
placement.
Figure 5: Cables positioned in the drive enclosure - ready for drive

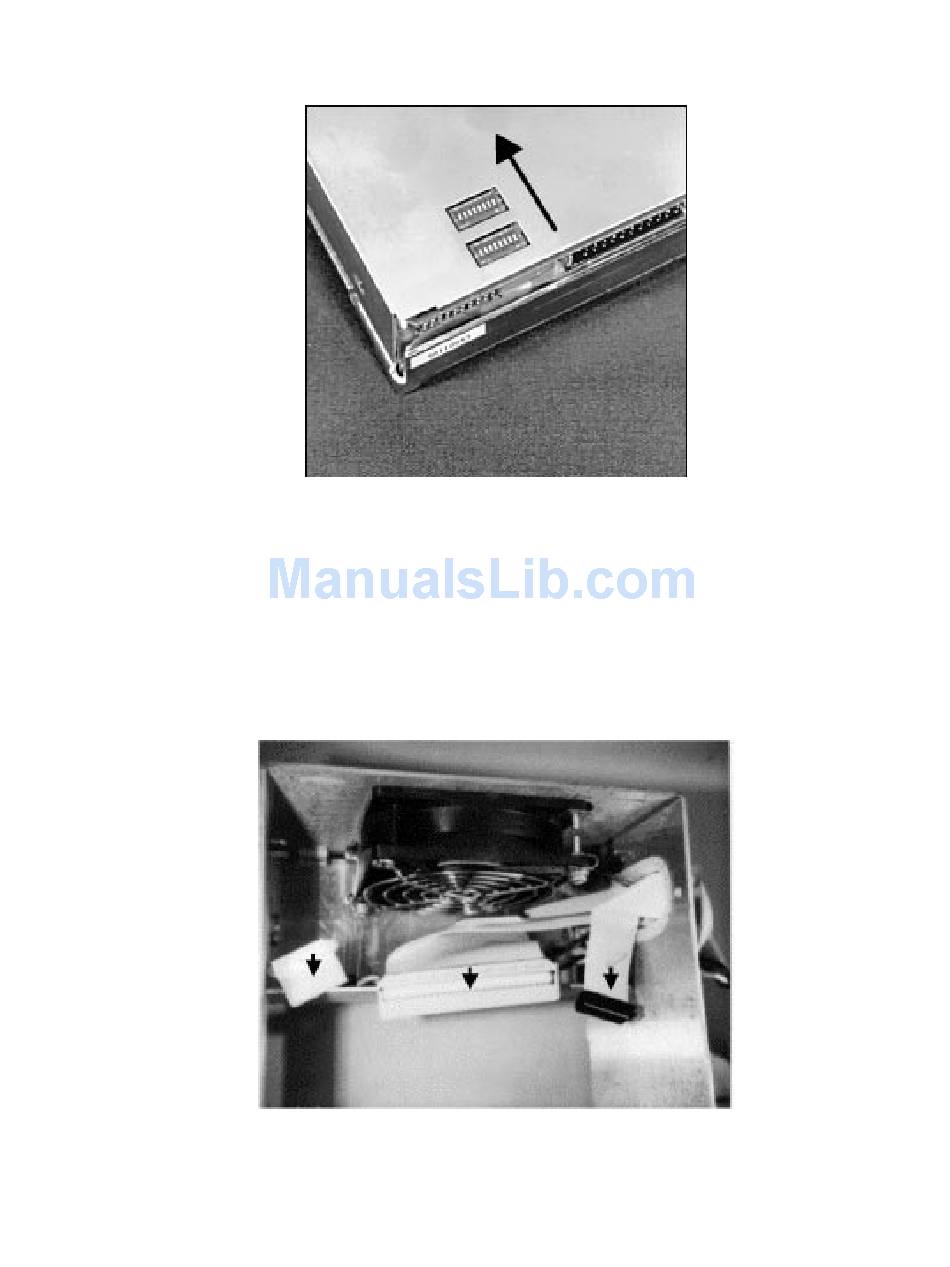

Figure 4: Ensuring drive DIP switches are all OFF
