Adding 2 drives to the c1150 series jukebox - c1154-90001

Hide thumbs Also See for Surestore 160ex - Optical Jukebox:

Installing the 2-Drive Upgrade

Note

There is 1 drive installed in each drive enclosure.

To add 2 drives, you will install drive enclosures where the air

bafﬂe plate is currently installed.

1. Remove current drive cables from the interposer PCA.

2. Remove the air bafﬂe plate. Refer to Figure 3 for the correct location of the plate and of the 3

screws that must be removed. (You will need to use 2 of these screws to add the drive enclosures.).

Air

Bafﬂe

Plate

Drives

3. Verify that DIP swtiches on the top of the new drives are set to OFF, which is in the forward posi-

tion (toward the front of the drive.) Refer to Figure 4.

Interposer PCA

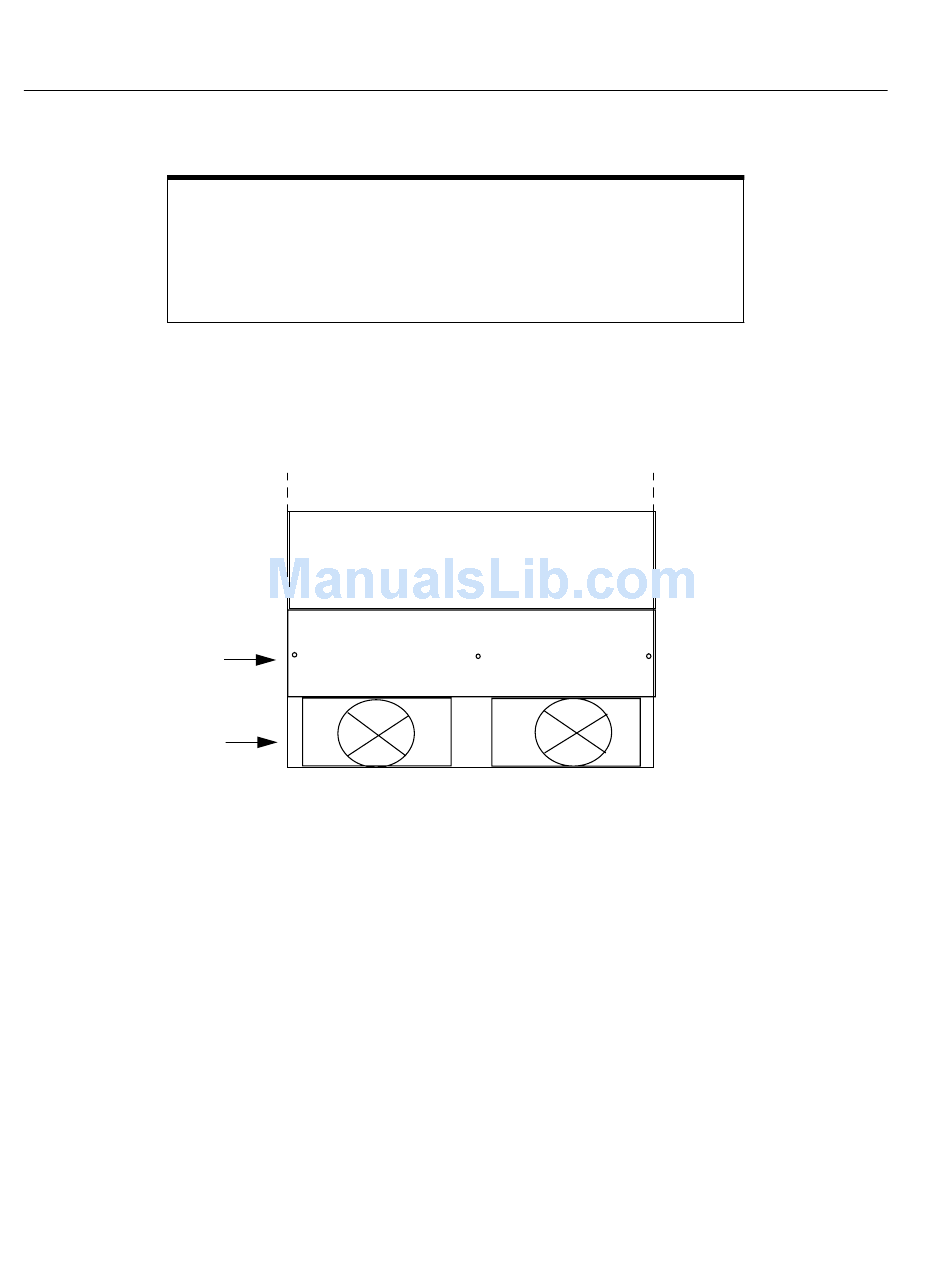

Figure 3: Location of the air bafﬂe plate
