Brocade 8428 FCoE embedded switch support

Brocade 8428 is the Brocade CEE high speed switching module. CEE discovery and configuration
support is similar to that of the Brocade 8000 and FCOE10-24 as detailed in the previous sections.
There are some distinct differences in Brocade 8428. For more information about the differences,
refer to
features"

Fabric switch partitioning subprofile

This subprofile models all Brocade switches. Every Brocade switch is partitioned into a logical
Brocade_Switch and a physical Brocade_PhysicalComputerSystem instance associated through
HostedDependency. In addition, every port is partitioned into a logical Brocade_SwitchFCPort and
physical Brocade_PCSNetworkPort instance associated through CIM_HostedDependency.

Data model

Figure 35
FIGURE 35

Registration

Only instances of Brocade_PhysicalComputerSystem that are Virtual Fabrics-enabled are
associated to the Brocade_RegisteredSubProfile instance for fabric switch partitioning.
shows the registration for fabric switch partitioning subprofile.
Brocade Network Advisor SMI Agent Developer's Guide
53-1002701-01
"Differences from Brocade 8000 and FCoE10-24"
on page 75, and "Data model"

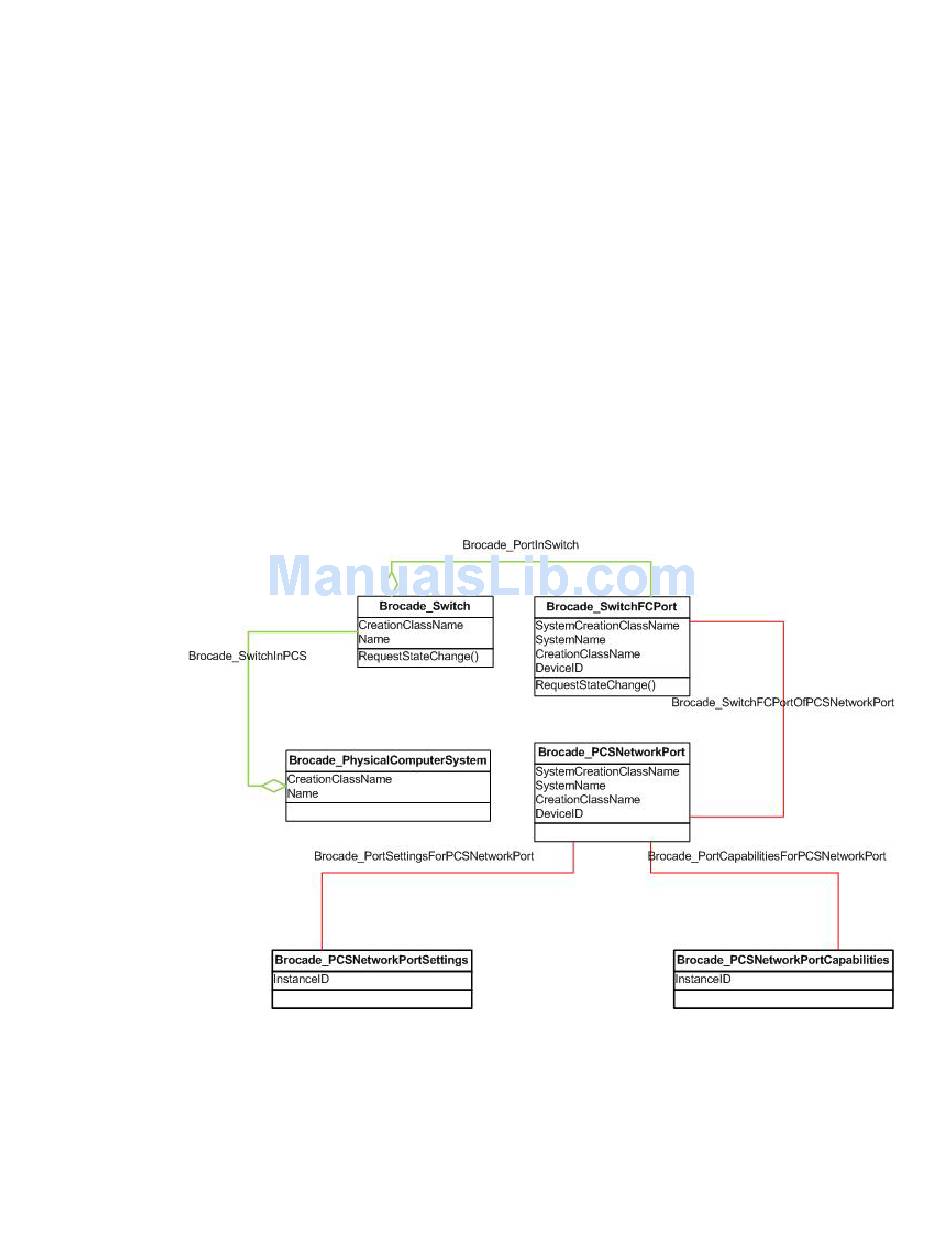

shows the fabric switch partitioning subprofile data model.
Fabric switch partitioning subprofile data model

Fabric switch partitioning subprofile

on page 74,
on page 75.
3
"Support for Layer 3
Figure 36
77
