CEE switch support
Registration
Because the DMTF DSP 1039 version 1.0.0 for Role-Based Authorization Profile to model these
ACLs is being followed, conformance will be advertised to that profile.

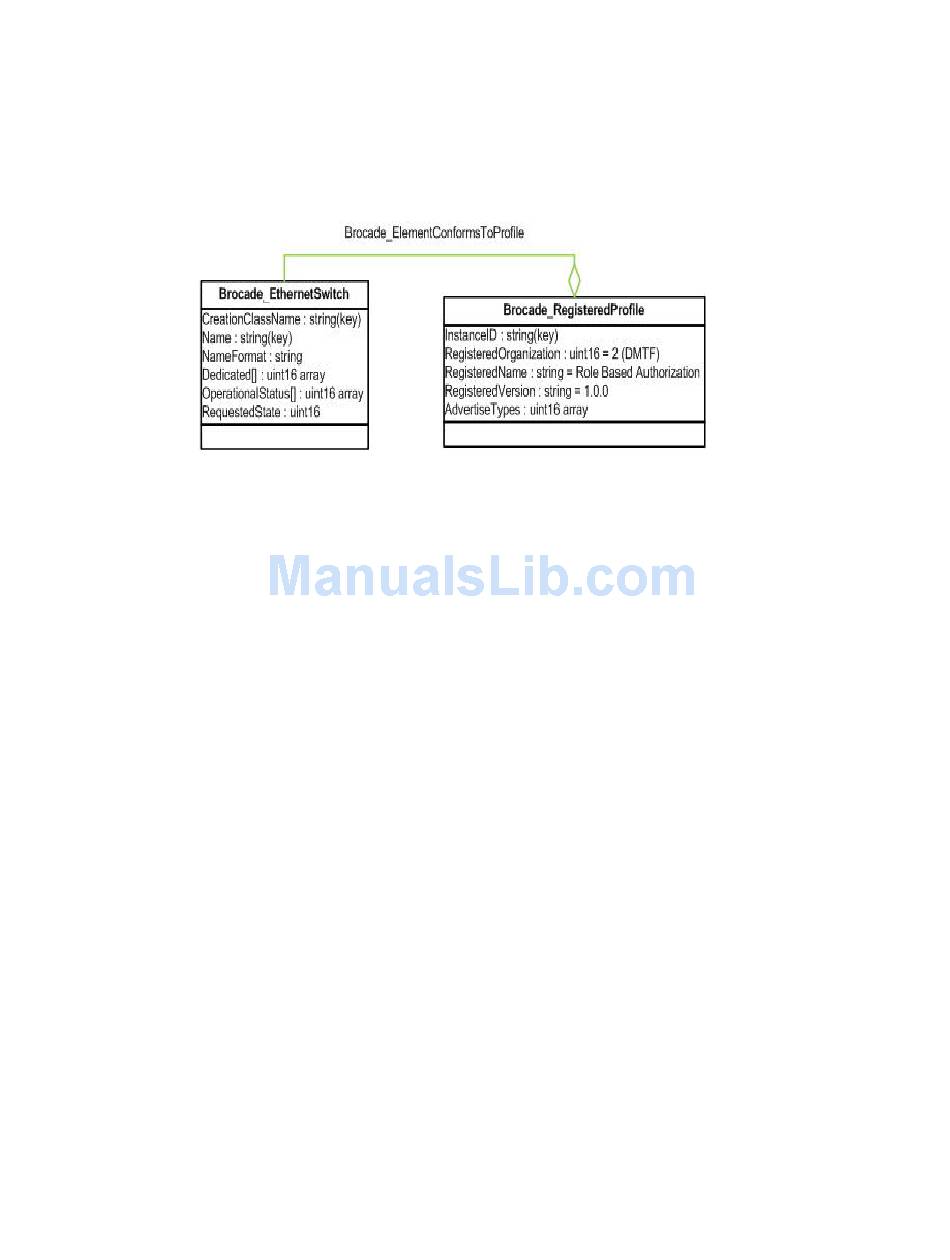

registration diagram.
FIGURE 32

CEE maps

Data model
There is no SNIA model for CEE maps. The following notes present details on the class diagram in
Figure
•
•
•
•
•
•
72
CEE ACL profile registration
33.
The CEE map is defined at the scope of the switch. This map is represented by an instance of
Brocade_CEEMap associated to the scoping system, which is the Brocade_EthernetSwitch
through Brocade_CEEMapInEthernetSwitch.
Each CEE map can contain zero or more priority groups. All the priority groups within a map are
represented by a single instance of Brocade_PriorityGroups. The composition is through
Brocade_ PriorityGroupsInCEEMap. There will be one instance of Brocade_PriorityGroups for
every Brocade_CEEmap on the Brocade_EthernetSwitch.
The Brocade_PriorityGroups.ActivityQualifiers array will contain an array of strings, each string
representing one priority group within the map with the exception of the last entry. The last
entry will contain the priorities for the mapping of the priority groups to the incoming
Converged OS (COS). Each string representing a priority group will contain the details of the
bandwidth and Priority Flow Control (PFC) in a specific format. The last string representing the
priority table will contain the priority group ID for incoming CoS in a specific format.
The Brocade_PriorityGroups.QualifierFormats array will contain an array of strings, each string
representing the format for the priority group or the priority table in the
Brocade_PriorityGroups.ActivityQualifiers array at the same index.
All the possible values for the Brocade_PriorityGroups.QualifierFormats array are published in
the Brocade_CEEMapServiceCapabilities.QualifierFormatsSupported as an array of strings.
The value in the Brocade_PriorityGroups.QualifierFormats property is a subset of these
formats.
A CEE map can be empty. In such a case, the Brocade_CEEMap will be associated to a
Brocade_PriorityGroups instance in which the Brocade_PriorityGroups.ActivityQualifiers and
the Brocade_PriorityGroups.QualifierFormats properties will be empty.
Figure 32
Brocade Network Advisor SMI Agent Developer's Guide
shows the profile
