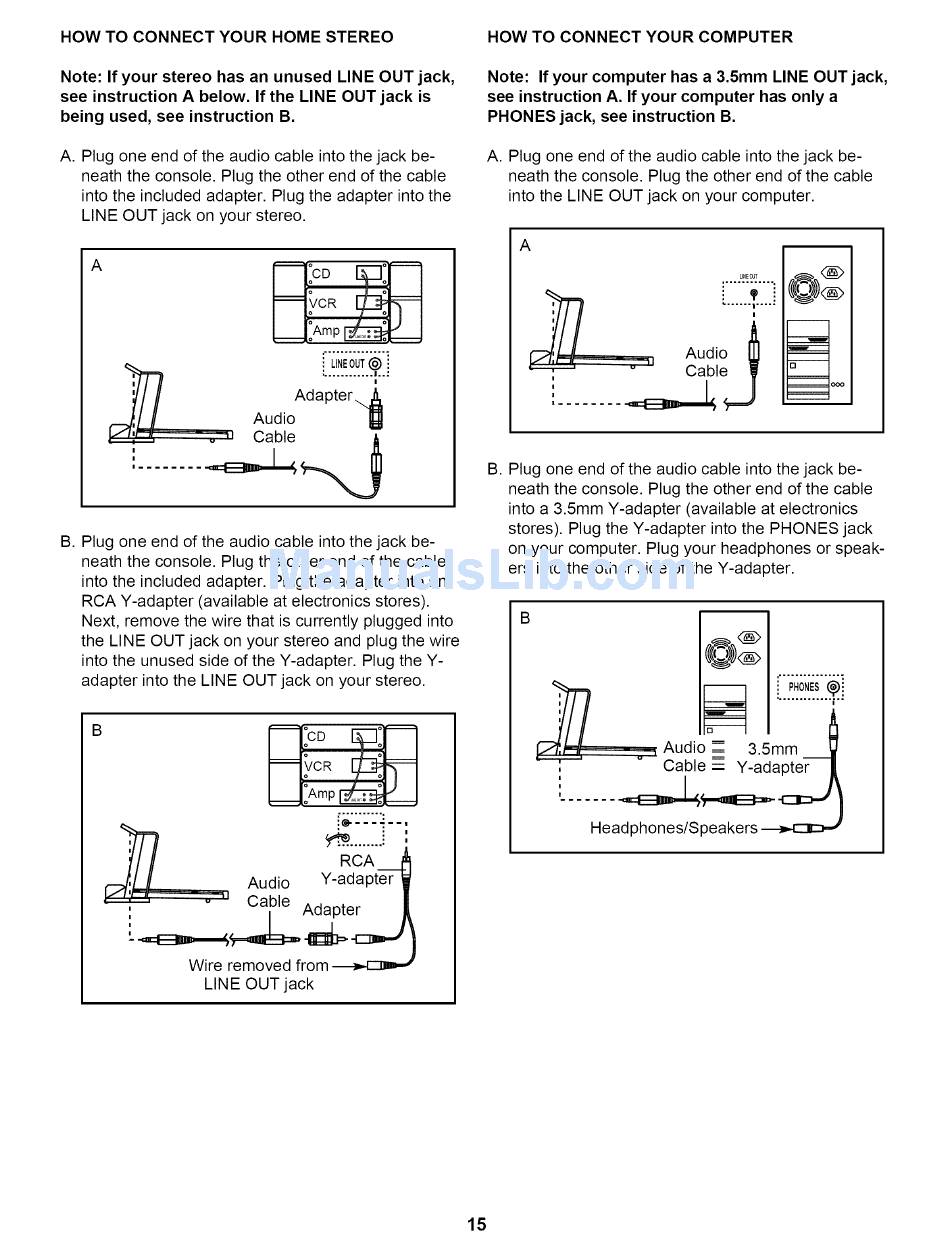

HOW TO CONNECT YOUR HOME STEREO HOW TO CONNECT YOUR COMPUTER
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable
into the included adapter. Plug the adapter into the
LINE OUT jack on your stereo.
A
:co
:Amp
LINE 0UT_ i
I : ............ ll'''_
Adapter
Audio
Cable
!
i ........
B. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable
into the included adapter. Plug the adapter into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the LINE OUT jack on your stereo and plug the wire
into the unused side of the Y-adapter. Plug the Y-
adapter into the LINE OUT jack on your stereo.
vcR
Audio Y-adapter
v ,_ Cable Adapter
Wire removed from
LINE OUT jack
Note: If your computer has a 3.5mm LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable
into the LINE OUT jack on your computer.
A
L_NE 0UT
:
i
!
Audio
'ej
i
i
_xJ
B. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable
into a 3.5mm Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your computer. Plug your headphones or speak-
ers into the other side of the Y-adapter.
B
i
i
t
, Audio = 3.5mm
u
Cable -- Y-adapter
Headphones/Speakers
