To use iFIT.com CD's, the treadmill must be con-
nected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages
14 and 15 for connecting instructions. To use iFIT.com
videocassettes,
the treadmill must be connected to
your VCR. See page 16 for connecting instructions. To
use iFIT.com programs
directly from our internet
site, the treadmill must be connected to your home
computer. See page 15 for connecting instructions.

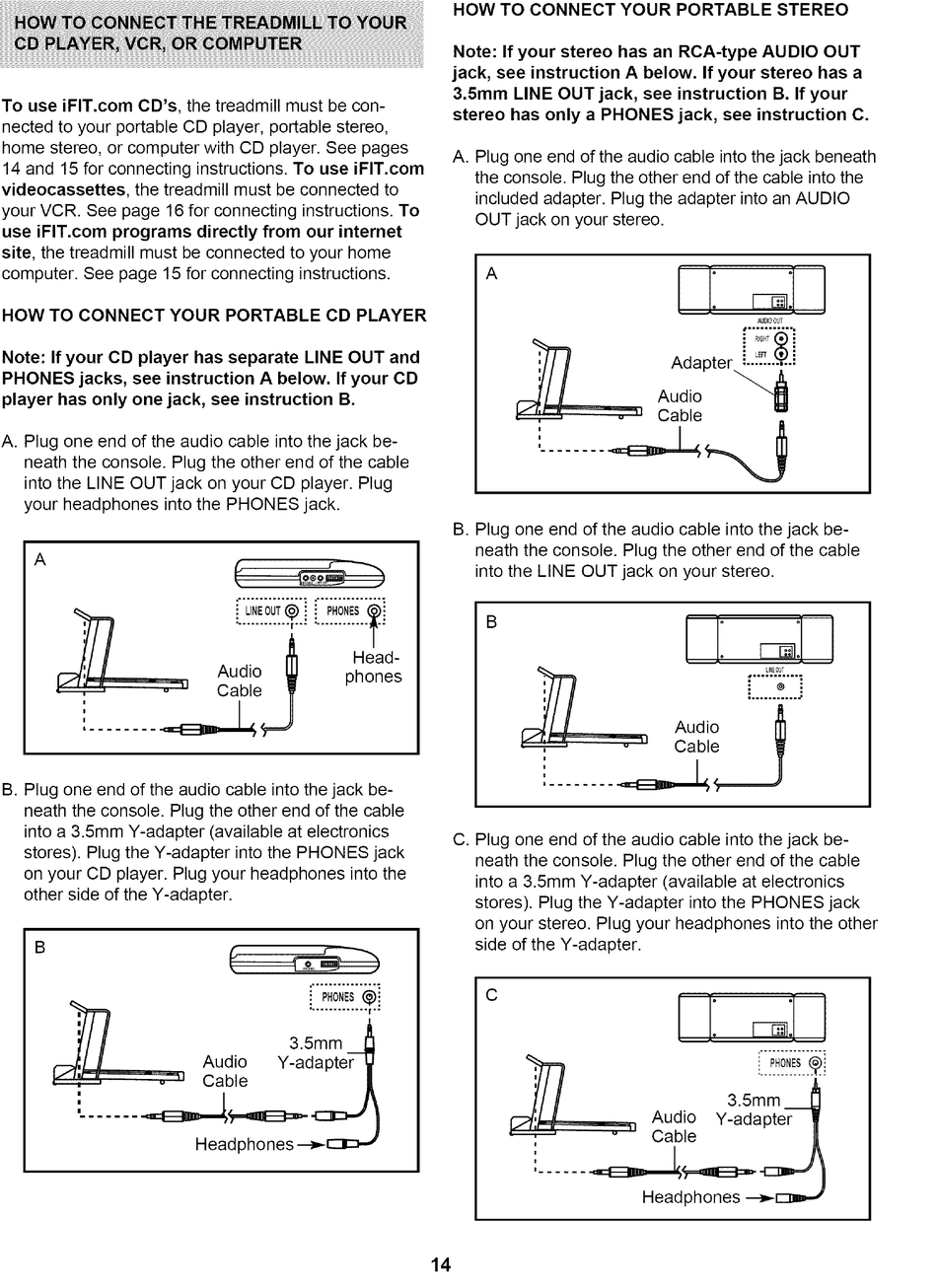

HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction
A below. If your CD
player has only one jack, see instruction
B.
A. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable
into the LINE OUT jack on your CD player. Plug
your headphones into the PHONES jack.
A
i
i
i
i .......
L.!'."L°£.2.i
Head-
Audio
W
nhones
_ oj
B. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable
into a 3.5mm Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your CD player. Plug your headphones into the
other side of the Y-adapter.
B
m
m
m
PHONES @::
i
Audio
y-3a5amFTe J
o u
Cable
._
........
__H
ea_---_
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction
B. If your
stereo has only a PHONES jack, see instruction
C.
A. Plug one end of the audio cable into the jack beneath
the console. Plug the other end of the cable into the
included adapter. Plug the adapter into an AUDIO
OUT jack on your stereo.
A
i
i
i
I I:
AUDIO OUT
"%; ......i
Adapter
.............
Audio
Cable
B. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable
into the LINE OUT jack on your stereo.
B
LIREOUT
,
... ...... _ ..._
Ii
' ...........
•
C. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable
into a 3.5mm Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your stereo. Plug your headphones into the other
side of the Y-adapter.
C
oil
II U
3.5mm
C_,;_
Audio
Y-adapter
°
Cable
Headphones ---_-_
14
