- Page 1 DISTRIBUTION AMPLIFIERS MANUAL PART NUMBER: 400-0004-004 DA1804NT 1-IN, 4-OUT VIDEO DISTRIBUTION AMPLIFIER USER’S GUIDE...
-
Page 2: Table Of Contents
OPERATION ... 6 TROUBLESHOOTING GUIDE... 6 POWER LED IS NOT ON ...6 LED IS NOT GREEN ...6 NO REMOTE IMAGE ...7 REMOTE IMAGE QUALITY IS POOR ...7 ALTINEX POLICIES ... 7 LIMITED WARRANTY/RETURN POLICIES ...7 CONTACT INFORMATION ...7 400-0004-004 DISTRIBUTION AMPLIFIERS Page... -
Page 3: Precautions / Safety Warnings
Any changes or modifications to the unit not expressly approved by ALTINEX, Inc. could void the user’s authority to operate the equipment. cause undesired... -
Page 4: About Your Da1804Nt
Analog Signal Impedance Frequency Compatibility Video Bandwidth Coupling Power External Adapter (included) Power Consumption Table 3. DA1804NT Electrical www.altinex.com for up-to-date information. DA1804NT BNC female (1) BNC female (4) NTSC, PAL, SECAM, High Resolution Monochrome Computer Video 1.0 in (25 mm) 4.6 in (117 mm) -
Page 5: Product Description

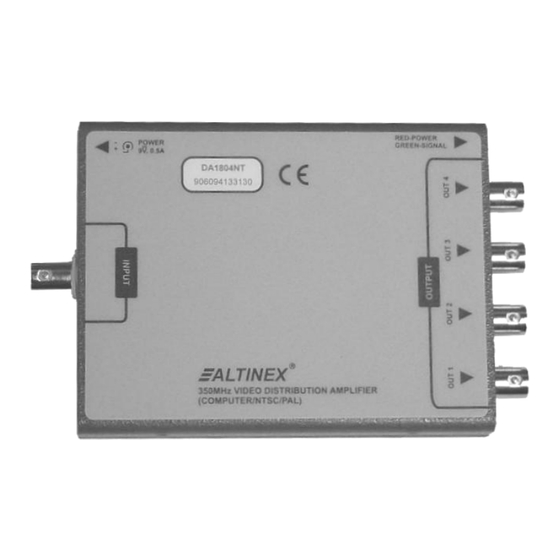

PRODUCT DESCRIPTION +9VDC INPUT VIDEO INPUT FEMALE BNC +9VDC INPUT VIDEO INPUT 400-0004-004 DISTRIBUTION AMPLIFIERS POWER/ SIGNAL LED 4 VIDEO OUTPUTS FEMALE BNC POWER/ SIGNAL LED 4 VIDEO OUTPUTS... -
Page 6: Application Diagrams
APPLICATION DIAGRAMS DIAGRAM 1: TYPICAL SETUP DIAGRAM 2: INTERNAL VIEW INPUT POWER 9VDC,500mA 400-0004-004 DISTRIBUTION AMPLIFIERS DA1804NT SIGNAL P.S. DETECT OUTPUT BNCs OUT 1 OUT 2 OUT 3 OUT 4 POWER... -
Page 7: Installing Your Da1804Nt
If the LED is still not green, see Cause 2. There is no sync signal. Verify computer output operating correctly by connecting it directly to the local monitor. If the display is good, call ALTINEX at (714) 990-2300. -
Page 8: No Remote Image
Make sure connected properly. Also, make sure that the continuity and wiring are good. If there is still no image, call ALTINEX at (714) 990-2300. 8.4 REMOTE IMAGE QUALITY IS POOR Cause 1: The source has a problem. Solution: Check the image on the local monitor and verify the quality is good.
