Page 1: Distribution Amplifiers
DISTRIBUTION AMPLIFIERS MANUAL PART NUMBER: 400-0025-003 PRODUCT REVISION: 3 DA1226AT 1-IN, 6-OUT RGBHV DISTRIBUTION AMPLIFIER USER’S GUIDE... -
Page 2: Table Of Contents
We appreciate your selection of our products and are confident that you will join the ranks of our many satisfied customers throughout the world. This manual covers: DA1226AT - 1-in, 6-out RGBHV Distribution Amplifier DISTRIBUTION AMPLIFIERS DA1226AT PRECAUTIONS / SAFETY WARNINGS ...2 GENERAL ... -
Page 3: Precautions / Safety Warnings
DA1226AT Distribution Amplifier. Keep this manual handy future reference. instructions are to ensure the long life of your DA1226AT and to prevent fire and shock hazard. Please read them carefully and heed all warnings. 1.1 GENERAL Unauthorized personnel shall not open the unit... -
Page 4: About Your Distribution Amplifier 2

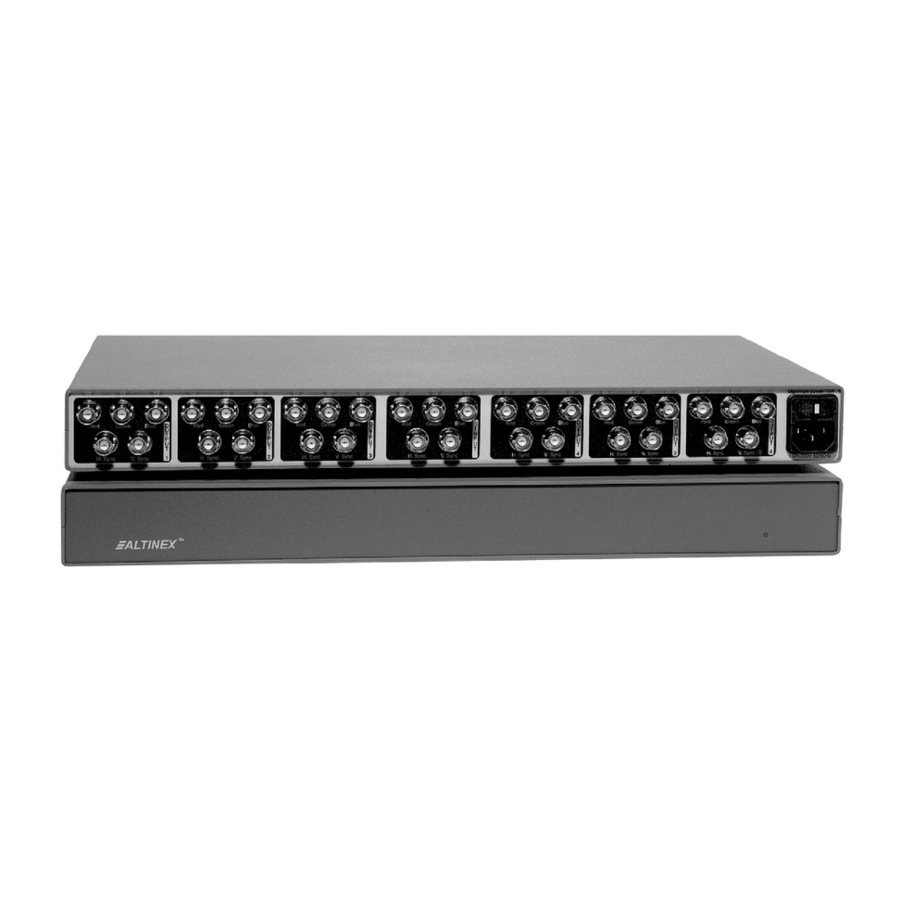

ABOUT YOUR DISTRIBUTION AMPLIFIER 2 The DA1226AT is a 1-in 6-out RGBHV distribution amplifier designed to allow the connection of a single computer video or interface source to as many as six monitors or projectors capable of handling the source resolution. -
Page 5: Description Diagram
DISTRIBUTION AMPLIFIERS DESCRIPTION DIAGRAM... -
Page 6: Application Diagram
NOTE: You may have to use an interface with your source to provide the appropriate signal format DA1226AT or to use a local monitor if needed. Connect the output channels of the amplifier display (monitors and/or projectors.) using a good quality of coaxial cables. -
Page 7: Operation
OPERATION The DA1226AT will operate successfully as long as cables are attached correctly and other technical specifications are followed. There are no other adjustments necessary to operate the unit. ACCESSORIES Model No. Description RACK MOUNT HARDWARE DA1292FC 19”-1U Rack Mount Ears for rack... -
Page 8: Frequently Asked Questions
If you are using a HD-15 to 5-BNC cable to connect DA1226AT and do not see the picture or display use an interface to make the video signal compatible to display. refreshed. Offering a... -
Page 9: Altinex Policy
11.2 RETURN POLICY It is very important to Altinex that you receive products that you have ordered and that this product meets your expectations. In the unlikely event that an Altinex product needs to be...
