- Page 1 DISTRIBUTION AMPLIFIER MANUAL PART NUMBER: 400-0045-006 DA1907LX DITTO-AMP, 1-IN 2-OUT VGA DISTRIBUTION AMPLIFIER USER’S GUIDE...
-
Page 2: Table Of Contents
INSTALLING YOUR DA1907LX ... 7 OPERATION... 7 TROUBLESHOOTING GUIDE ... 7 LED IS NOT RED ...7 LED IS NOT GREEN ...7 NO REMOTE IMAGE ...8 POOR IMAGE QUALITY ...8 ALTINEX POLICIES ... 8 LIMITED WARRANTY/RETURN POLICIES ...8 CONTACT INFORMATION ...8 400-0045-006 DISTRIBUTION AMPLIFIER Page... -
Page 3: Precautions / Safety Warnings
Any changes or modifications to the unit not expressly approved by ALTINEX, Inc. could void the user’s authority to operate the equipment. cause undesired... -
Page 4: About Your Da1907Lx

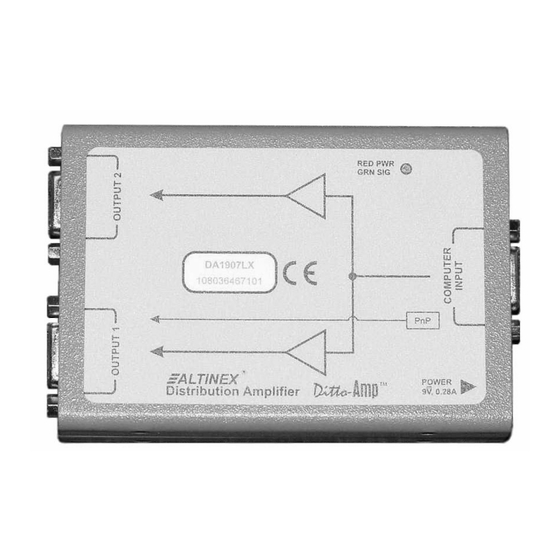

VGA-type cables. If desired, the input and/or output of the DA1907LX can be easily adapted to 5 BNC connectors through ALTINEX adapter cables. The DA1907LX is compatible with RGsB, RGBS,... - Page 5 MECHANICAL Material Finish Top Panel Height Width Depth Weight Shipping Weight (approx.) T Operating T Maximum Humidity MTBF (calculations) Table 2. DA1907LX Mechanical 400-0045-006 DISTRIBUTION AMPLIFIER DA1907LX ELECTRICAL 0.1 in Al Input Video Signal Gray Analog Signal Level Lexan Impedance 3.0 in (76 mm) Coupling 4.5 in (114 mm)
-
Page 6: Product Description
PRODUCT DESCRIPTION COMPUTER VIDEO OUTPUT 2 15-PIN HD COMPUTER VIDEO OUTPUT 1 15-PIN HD COMPUTER VIDEO OUTPUT 2 15-PIN HD COMPUTER VIDEO OUTPUT 1 15-PIN HD 400-0045-006 DISTRIBUTION AMPLIFIER COMPUTER VIDEO INPUT 15-PIN HD DC POWER 2.5 mm POWER/SIGNAL PRESENT LED COMPUTER VIDEO INPUT 15-PIN HD... -
Page 7: Application Diagrams
DISTRIBUTION AMPLIFIER APPLICATION DIAGRAMS DIAGRAM 1: TYPICAL SETUP DIAGRAM 2: INTERNAL VIEW 400-0045-006... -
Page 8: Installing Your Da1907Lx
If the LED is still not GREEN see Cause 2. Cause 2: There is no Sync signal. Solution: Verify operating correctly by connecting it directly to a local monitor. If the display is good, call ALTINEX at (714) 990-2300. supplied adapter indicating power computer output... -
Page 9: No Remote Image
Solution: Make sure that all the cables are connected properly and that the continuity and wiring are good. If there is still no image, call ALTINEX at (714) 990-2300. 8.4 POOR IMAGE QUALITY Cause 1: The source has a problem.
