DISTRIBUTION AMPLIFIERS MANUAL PART NUMBER: 400-0007-003 PRODUCT REVISION: 1 DA1912SX 1-IN, 2-OUT RGBS DISTRIBUTION AMPLIFIER USER’S GUIDE... -
Page 2: Table Of Contents
INTRODUCTION Thank you for purchasing DA1912SX Distribution Amplifier. We are sure you will find it a reliable and useful product. Superior performance for the right price backed by solid technical and customer support is what we have to offer. The product you are holding in your hands is designed using state-of-the-art technology and is superior to anything available on the market. -
Page 3: Precautions / Safety Warnings
DA1912SX and to prevent fire and shock hazard. Please read them carefully and heed all warnings. 1.1 GENERAL Unauthorized personnel shall not open the unit since there are high-voltage components inside. -
Page 4: About Your Distribution Amplifier 2

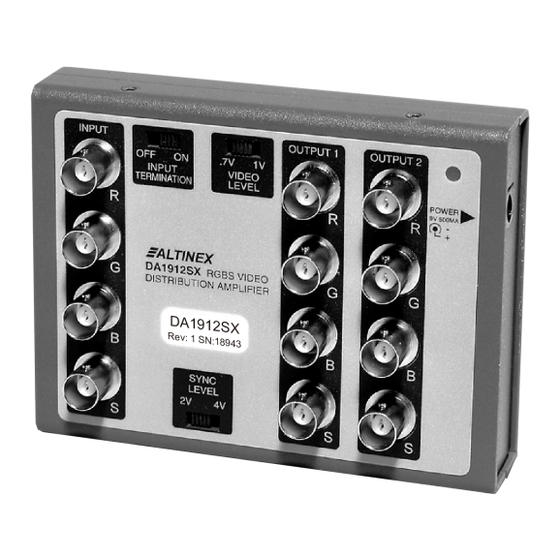

Each output is individually buffered and is not affected by other output loading. The DA1912SX accepts one input and offers up to two outputs. Compensation for cable loss is automatically made for distances up to 100 feet... -
Page 5: Description Of Da1912Sx
Red, Green, and Blue channels. By setting this switch in the OFF position and using BNC "T" connectors, the input may be looped to another DA1912SX, to a local monitor, or to another piece of equipment, if desired. -
Page 6: Application Diagram
DA1912SX. projectors must be scan-rate compatible with the source signal - the DA1912SX does not affect scan rate. Step 4. The Input Termination switch should normally be ON unless the input is being looped to another unit. -
Page 7: Operation
Amplifier can be adjusted using Input Termination, Video Level, and Sync Level switches as described in Section 4. There are no other adjustments necessary to operate the unit. The DA1912SX will operate successfully as long as cables are attached properly and other technical specifications are followed. -
Page 8: Frequently Asked Questions
I use distances up to100 feet with the when set normally, though DA1912SX the DA1912SX can drive when the signals through longer runs Video Level depending on the source switch is set signal resolution and cable in the 1V quality. -
Page 9: Troubleshooting Guide
DISTRIBUTION AMPLIFIERS 11.2 RETURN POLICY It is very important to Altinex that you receive the products that you have ordered and that this product meets your expectations. In the unlikely event, that an Altinex product needs to be...
