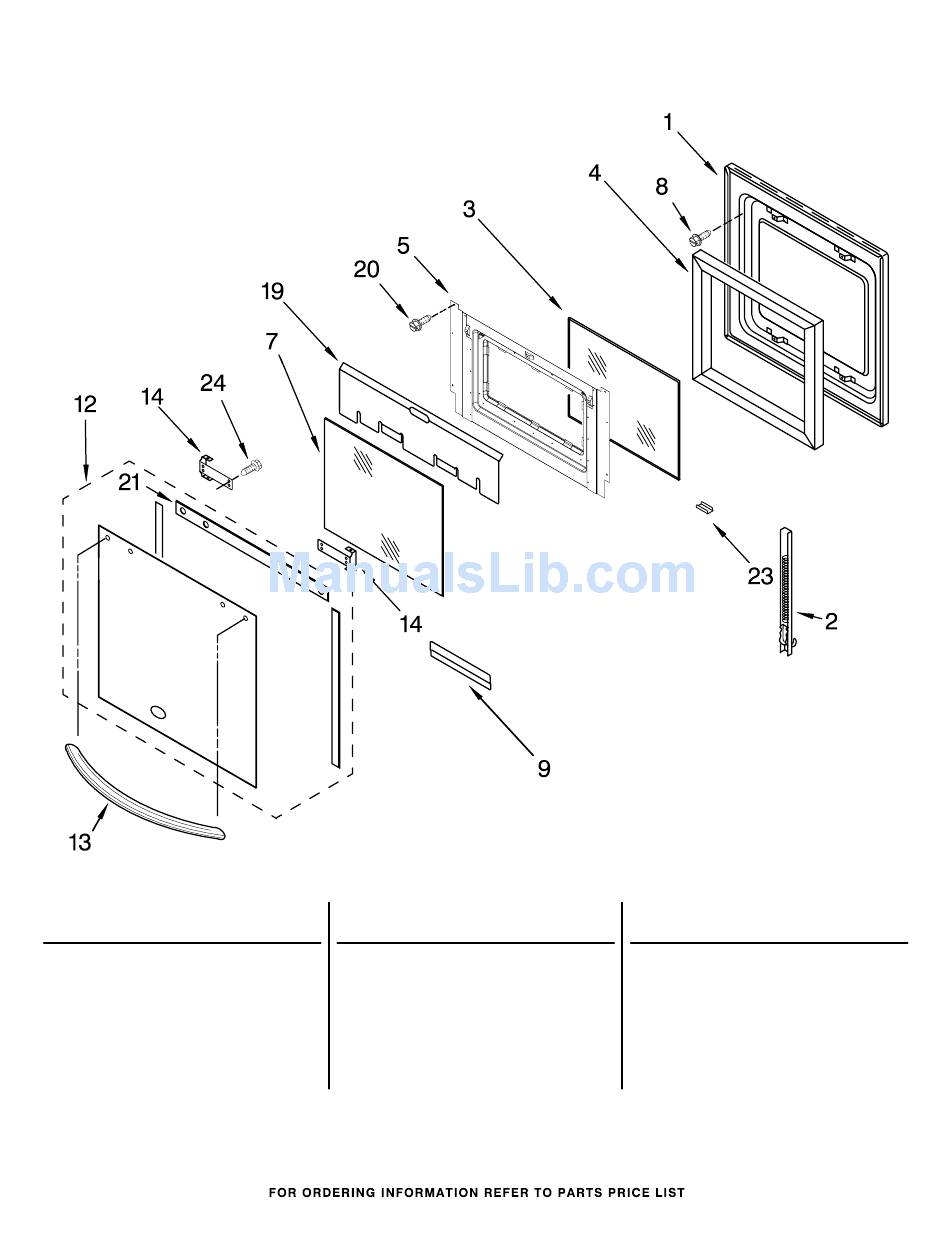

Oven Door Parts - KitchenAid KDRP462LSS08 Parts List

Illus. Part
No. No. DESCRIPTION
1 8300152 Door Liner
2 Hinge, Door
9760579 R.Side
9760580 L.Side
3 4449259 Glass, Inner
4 8300797 Insulation, Door
5 8300190 Retainer, Glass
7 4449263 Glass, Inner
8186669

OVEN DOOR PARTS

For Model:KDRP462LSS08
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
8 4449743 Screw, 8−32 x 3/8
9 4451668 Retainer, Glass
12 8300172 Assy, Door Glass
13 9760548 Door Handle
14 Bracket, Handle
4455803 Right Hand
4455804 Left Hand
3400832 Screw
3
Illus. Part
No. No. DESCRIPTION
19 8301089 Shield, Heat
20 4449809 Screw, 8−18 x 3/8
21 8300153 Seal, Door Top
23 4451432 Retainer, Clip
3400832 Screw
24 3196184 Screw, 8−32 x .548
