HOW TO REPLACE THE PLASMACLUSTER ION GENERATING UNIT

3
IG-A20E
IG-A40E
Reset button for Plasmacluster Ion Generating Unit
After replacing the Plasmacluster Ion Generating Unit, insert the plug and
press the UNIT RESET Button for 3 seconds.

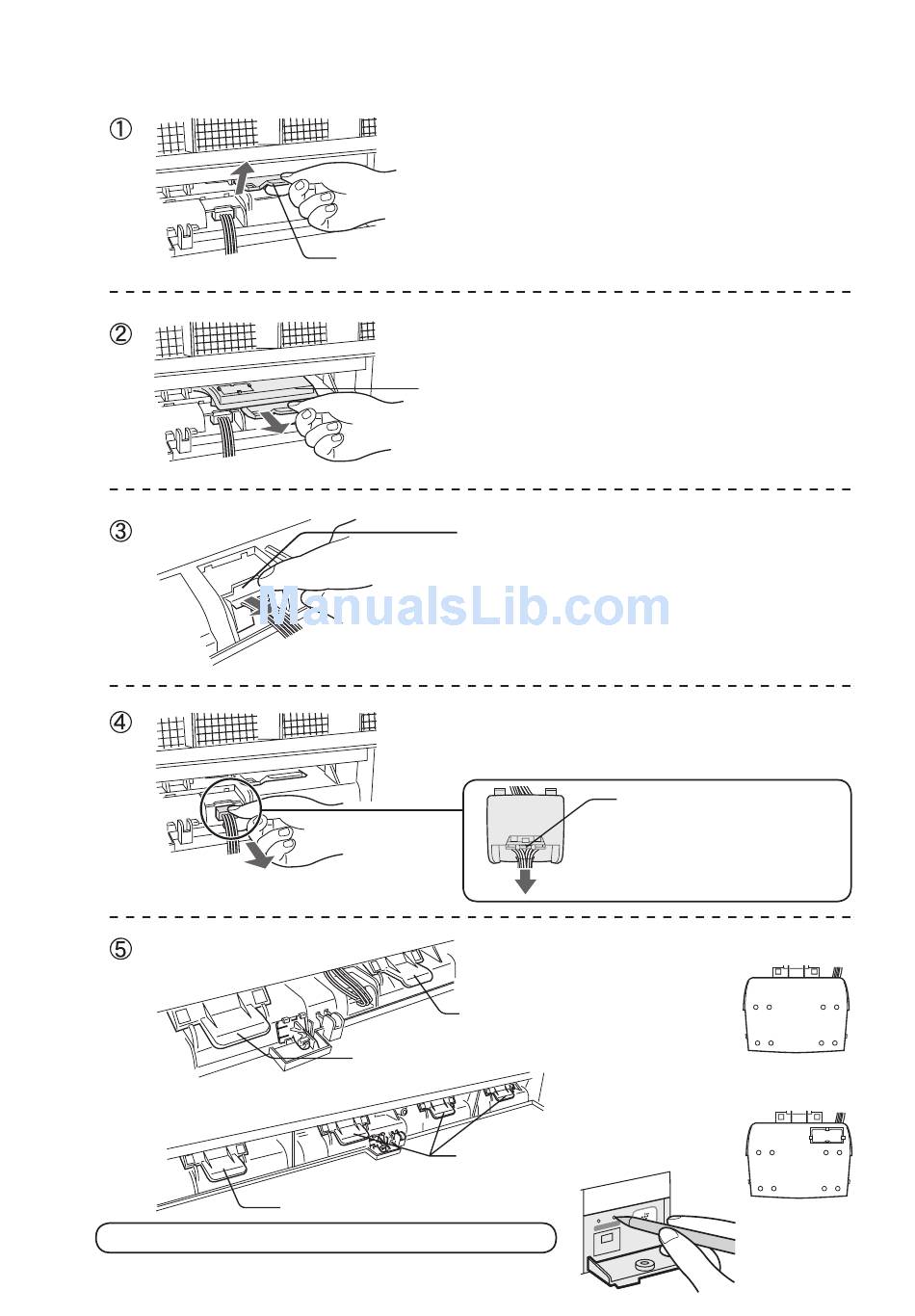

Pull up the lever
Unit
with sensor (1pc)
with sensor (1pc)
E-10
Pull up the lever in the direction of
the arrow to unlock it.
Pull the lever in the direction
of the arrow and take out the
Plasmacluster Ion Generating Unit.
Remove the connector cover.
(IG-A40E only : 4 pcs)
D i s c o n n e c t t h e c o n n e c t o r o f
Plasmacluster Ion Generating Unit.
P u s h a n d u n l o c k t h e
connector, take out the
connector in the direction
of the arrow.
Plasmacluster Ion Generating Unit without sensor.
IG-A20E : 1pc
IG-A40E : 3pcs
without sensor (1pc)
Plasmacluster Ion Generating Unit with sensor.
IG-A20E : 1pc
IG-A40E : 1pc
without sensor (3pcs)
