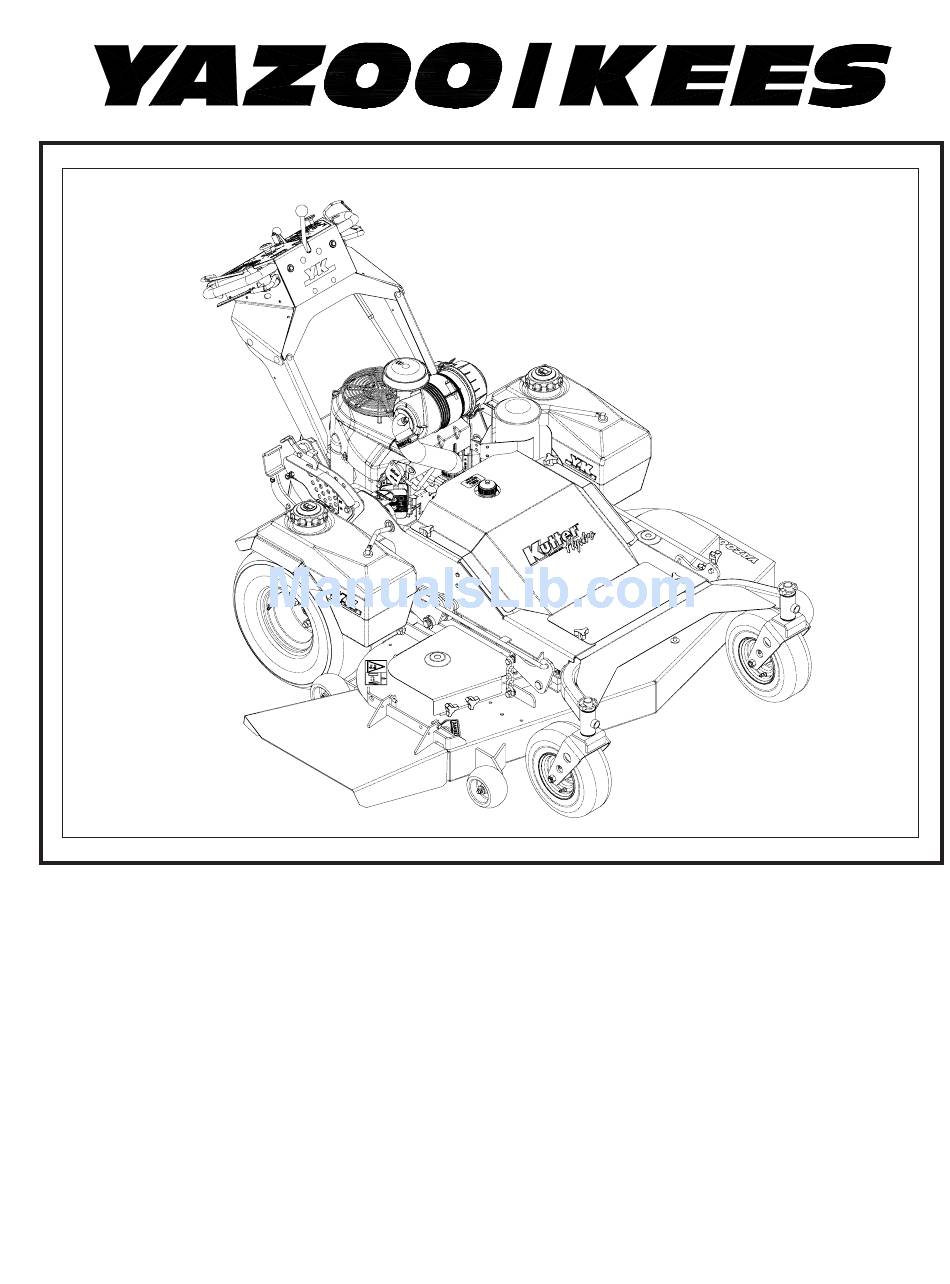

- Page 1 Parts manual Models: KKFW48171 KKFW52211 MANUAL NO. 110584 REV. 01 (09/15/04)
- Page 2 MODEL NUMBER _______________________________ SERIAL NUMBER _______________________________ DATE PURCHASED _____________________________ DEALER ADDRESS _____________________________ NOTES: ©2004 Yazoo/Kees Power Equipment. All rights reserved. Beatrice, NE. Printed in U.S.A.
-
Page 3: Table Of Contents
CONTENTS HANDLE ASSEMBLY ......4-5 MAIN FRAME ........6-7 COVERS ..........8-9 POWER UNIT ........10-11 CASTER ASSEMBLY ......12 HYDRAULILC KIT ....... 13 17 HP ENGINE ........14-15 21 HP ENGINE ........16-17 ELECTRICAL COMPONENTS ..18-19 DECK LIFT PEDAL ......20 WHEEL MOTOR ASSEMBLY .... -
Page 4: Handle Assembly
HANDLE ASSEMBLY 11 53... - Page 5 HANDLE ASSEMBLY ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 33 ..109570 ..2 ..SWITCH, N.C. 1 ..110579 ..1 ..HANDLE W/DECALS 34 ..109765 ..1 ..HCS, 5/16-18 X 1 1/2,GR5, 2 ..109594 ..1 ..DRIVE LEVER, LEFT ........
-
Page 6: Main Frame
MAIN FRAME... -
Page 7: Main Frame
MAIN FRAME ITEM PART NO. QTY. DESCRIPTION 1 ..107677 ..1 ..MAIN FRAME W/DECALS 2 ..107018 ..1 ..HEIGHT PLATE 3 ..102754 ..1 ..NUT, 3/8C X 3 1/2 4 ..101341 ..2 ..NUT, 3/8C X 3 5 .. -
Page 8: Covers
COVERS REF. REF. -
Page 9: Covers
27 ..990629 ..2..HCS, 3/8-16 X 2 1/4 28 ..107116 ..2..GROMMET 29 ..107120 ..1..TAB 30 ..990692 ..2..WASHER, 5/15 31 ..101881 ..1..DECAL, PROP 65 32 ..103420 ..1..DECAL, YAZOO/KEES... -
Page 10: Power Unit
POWER UNIT REF. 54 17 REF. -
Page 11: Power Unit
POWER UNIT ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 1 ..990546 ..14 ..NUT, 3/8-16, 34 ..101836 ..2 ..SLEEVE BUSHING ........CENTER LOCK 35 ..990588 ..2 ..HCS, 3/8-16 X 2 2 .. -
Page 12: Caster Assembly
CASTER ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 1 ..107036 ....1 ... CASTER FORK 2 ..106993 ....1 ... CASTER TIRE (COMPLETE) ..106995 ....1 ... TIRE, 410/350-5, 4 PLY ..106994 ....1 ... RIM ..912234 ....1 ... VALVE STEM .. -
Page 13: Hydraulilc Kit
HYDRAULIC KIT ITEM PART NO. QTY. DESCRIPTION 1 ..103316 ....2 ... CONNECTOR, STRAIGHT 2 ..101239 ....4 ... CONNECTOR, STRAIGHT 3 ..101242 ....2 ... ELBOW, 90°, ADJ 4 ..101238 ....4 ... ELBOW, 90°, ADJ 5 ..105168 ....1 ... NUT, CAP, 304-C-6 6 .. -
Page 14: 17 Hp Engine
17 HP ENGINE LARGER DIAMETER HUB MUST BE FACING UP PULLEY SIDE DOWN... -
Page 15: Hp Engine
17 HP ENGINE ITEM PART NO. QTY. DESCRIPTION 1 ..107077 ..1..MUFFLER SHROUD 2 ..105804 ..1..CLUTCH, 125 FT/LB 3 ..101995 ..1..KEY, 1/4” SQ. X 1 1/8” 4 ..105610 ..1..PUMP PULLEY 5 .. -
Page 16: Hp Engine
21 HP ENGINE CHAMFERED SIDE MUST FACE TOWARDS THE ENGINE LARGE DIAMETER HUB MUST BE FACING UP PULLEY SIDE DOWN... - Page 17 21 HP ENGINE ITEM PART NO. QTY. DESCRIPTION 1 ..105610 ..1..PULLEY, PUMP 2 ..109245 ..1..CLUTCH, 125 FT/LBS 3 ..101995 ..1..KEY, 1/4” SQ. X 1 1/8” 4 ..107057 ..1..MUFFLER SHROUD 5 ..
-
Page 18: Electrical Components
ELECTRICAL COMPONENTS LEFT THUMB LATCH SWITCH LEFT OP SWITCH RIGHT OP SWITCH RIGHT THUMB LATCH SWITCH ENGINE GROUND TO RIGHT REAR ENGINE BOLT ELECTRIC CLUTCH STARTER... -
Page 19: Electrical Components
ELECTRICAL COMPONENTS ITEM PART NO. QTY. DESCRIPTION 1 ..109766 ....1 ... WIRING HARNESS 2 ..101768 ....1 ... SWITCH, CLUTCH 3 ..102086 ....1 ... FUSE, 20 AMP 4 ..101771 ....1 ... FUSE, 7.5 AMP 5 ..101080 ....2 ... SWITCH, NC 6 .. -
Page 20: Deck Lift Pedal
DECK LIFT PEDAL ITEM PART NO. QTY. DESCRIPTION 1 ..107022 ....1 ... LIFT ARM 2 ..107025 ....1 ... FOOT LIFT ARM 3 ..101331 ....2 ... NUT, 1/2C, NYLOC 4 ..990550 ....2 ... WASHER, 1/2, FLAT 5 ..107026 ....2 ... BOLT, 1/2C X 2, GR 8 6 .. -
Page 21: Wheel Motor Assembly
WHEEL MOTOR ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 1 ..103527 ....1 ... MOTOR 2 ..101332 ....4 ... BOLT, 1/2C X 2 3/4 3 ..101331 ....4 ... NUT, 1/2C, NYLOC 4 ..107047 ....1 ... WHEEL MOTOR HAT 5 .. -
Page 22: 48"Deck
48”DECK TORQUE TO 45 FT/LBS 3 PLACES REF. TORQUE TO 90 FT/LBS 3 PLACES... -
Page 23: Deck
48”DECK ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 1 ..107675 ..1 ..DECK W/DECALS 29 ..105746 ..1 ..DECAL, 2 ..102643 ..2 ..ROLLER, ANTI-SCALP ........EURO SEVERING 3 ..108773 ..3 ..SPINDLE, COMPLETE 30 .. -
Page 24: 52"Deck
52”DECK TORQUE TO 45 FT/LBS 3 PLACES REF. TORQUE TO 90 FT/LBS 3 PLACES... - Page 25 52”DECK ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 1 ..107676 ..1 ..DECK W/DECALS 28 ..105743 ..2 ..DECAL, 2 ..103295 ..2 ..IDLER BUSHING ........EURO NO STEP 3 ..103258 ..1 ..PULLEY, IDLER (TALL) 29 ..
