Summary of Contents for Yazoo/Kees 968999506

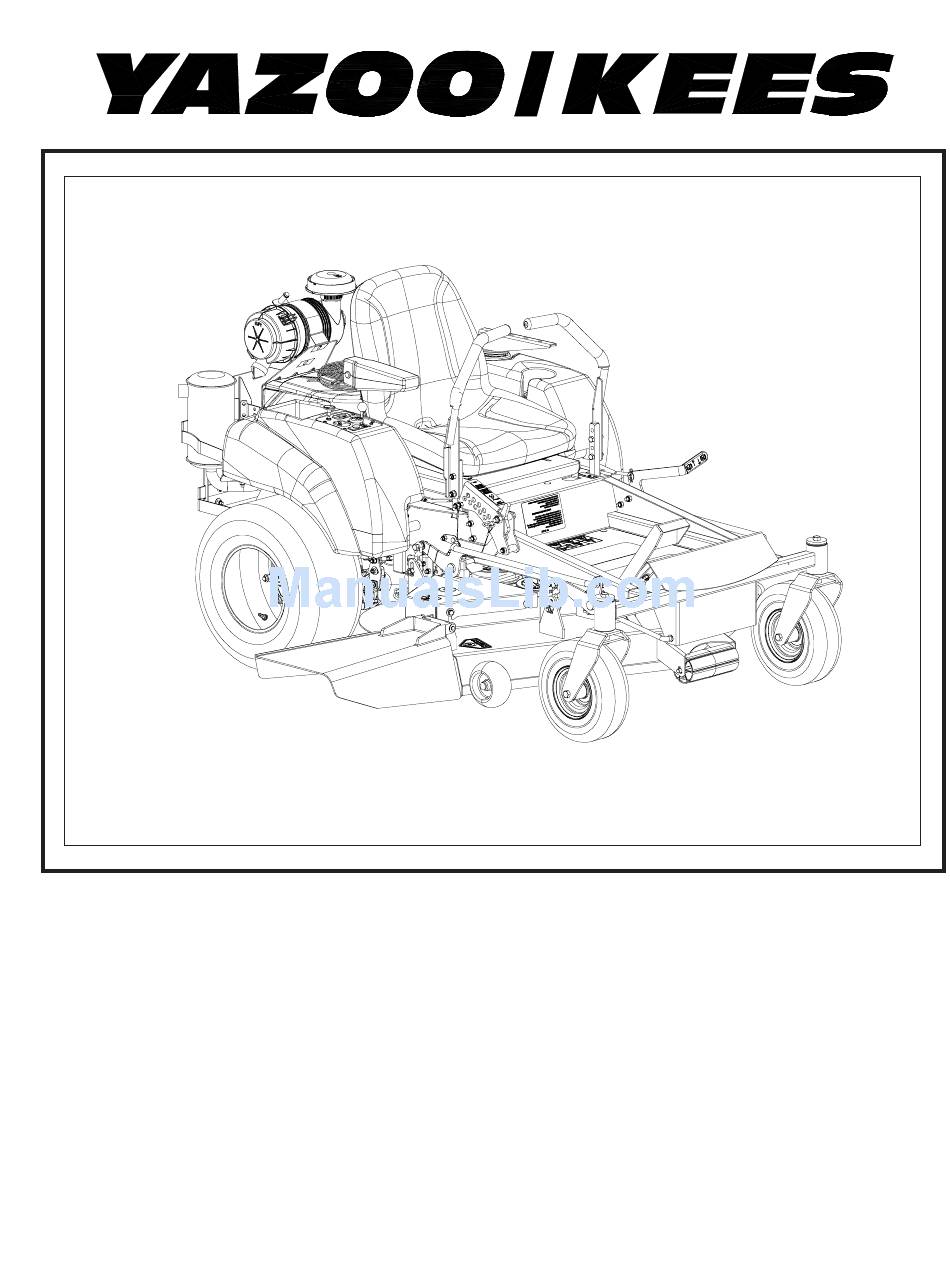

Page 1
Parts manual Models: 968999295/ZEKW42170 968999296/ZEKW52210 968999506/ZEKW48190 MANUAL NO. 539 113335 REV. IR (06/26/06)
Page 2
MODEL NUMBER _______________________________ SERIAL NUMBER _______________________________ DATE PURCHASED _____________________________ DEALER ADDRESS _____________________________ NOTES: ©2006 Yazoo/Kees Power Equipment. All rights reserved. Beatrice, NE. Printed in U.S.A.
Page 3: Table Of Contents
CONTENTS SECTION PAGE MAIN FRAME ... 4-7 DECK LIFT ... 8-9 CONTROL LEVERS ... 10-11 PARK BRAKE ... 12-13 CASTER ASSEMBLY ... 14-15 SEAT ASSEMBLY ... 16-17 CONSOLE ASSEMBLY ... 18-19 KAWASAKI ENGINE ASSEMBLY ... 20-21 42” DECK ASSEMBLY ... 22-23 48”...
Page 4: Main Frame
MAIN FRAME...
Page 5
16 ... 539 112795 ...1 ... FRAME W/DECALS 17 ... 539 112212 ...2 ... TIRE & RIM, MODEL 968999295 ... 539 112215 ...2 ... TIRE & RIM, MODELS: 968999296, 968999506 18 ... 539 112213 ...1 ... TIRE, MODEL 968999295 ... 539 112216 ...1 ... TIRE, MODELS 968999296, 968999506 19 ...
Page 6
MAIN FRAME...
Page 7
MAIN FRAME ITEM PART NO. QTY. 1 ... 539 102436 ...1 ... BATTERY, DRY 2 ... 539 102502 ...6 ... STUD, 5/16C 3 ... 539 102845 ...8 ... SPRING, FUEL TANK 4 ... 539 105452 ...1 ... TANK, FUEL, LEFT 5 ...
Page 8: Deck Lift
DECK LIFT...
Page 9: Deck Lift
DECK LIFT ITEM PART NO. QTY. DESCRIPTION 1 ... 539 101175 ...8 ... HCS, 7/16-14 X 1 1/2, GR5 2 ... 539 101331 ...1 ... NUT, 1/2-13, NYLOC 3 ... 539 101721 ...8 ... HCS, 5/16-18 X 2 3/4, GR5 4 ...
Page 10: Control Levers
CONTROL LEVERS REF.
Page 11
CONTROL LEVERS ITEM PART NO. QTY. 1 ... 539 102592 ...2 ... CUSHION - DRIVE LEVER 2 ... 539 102593 ...2 ... WASHER, 3/8, SPRING, SPEC 3 ... 539 102720 ...2 ... DAMPENER 4 ... 539 109368 ...2 ... BUSHING, PLASTIC 5 ...
Page 12: Park Brake
PARK BRAKE...
Page 13
PARK BRAKE ITEM PART NO. QTY. DESCRIPTION 1 ... 539 101080 ...1 ... SWITCH-INTERLOCK 2 ... 539 101836 ...1 ... BUSHING 3 ... 539 109363 ...1 ... BRAKE LEVER 4 ... 539 109368 ...2 ... BUSHING, PLASTIC 5 ... 539 109798 ...1 ... GRIP, PARK BRAKE 6 ...
Page 14: Caster Assembly
CASTER ASSEMBLY...
Page 15: Caster Assembly
CASTER ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 1 ... 539 101474 ...2 ... ZERK 2 ... 539 112660 ...4 ... BEARING, FLANGED 3 ... 539 112670 ...2 ... HEAVY WASHER 4 ... 539 990646 ...2 ... HCS, 1/2-13 X 1, GR5 5 ...
Page 16: Seat Assembly
SEAT ASSEMBLY...
Page 17
SEAT ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 1 ... 539 107523 ...1 ... SEAT SWITCH 2 ... 539 108744 ...1 ... SEAT W/ARMREST 3 ... 539 112229 ...1 ... SEAT MOUNT 4 ... 539 976934 ...6 ... HCS, 5/16-18 X 3/4, GR5 5 ...
Page 18: Console Assembly
CONSOLE ASSEMBLY...
Page 19: Console Assembly
CONSOLE ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 1 ... 539 101768 ...1 ... SWITCH 2 ... 539 105408 ...4 ... WASHER, #10 3 ... 539 107541 ...1 ... IGNITION SWITCH 4 ... 539 109838 ...1 ... DECAL, THROTTLE 5 ... 539 109858 ...1 ... CONSOLE PLATE 6 ...
Page 20: Kawasaki Engine Assembly
KAWASAKI ENGINE ASSEMBLY TORQUE TO 50 FT./LBS.
Page 21
KAWASAKI ENGINE ASSEMBLY ITEM PART NO. QTY. 1 ... 539 101714 ...1 ... SOLENOID 2 ... 539 102685 ...1 ... CLIP 3 ... 539 102759 ...3 ... INSULATOR, BATTERY 4 ... 539 109587 ...1 ... OIL DRAIN EXTENSION 5 ... 539 109618 ...1 ... O-RING 6 ...
Page 22: 42" Deck Assembly
TORQUE TO 45-55 FT/LBS 3 PLACES 42” DECK ASSEMBLY TORQUE TO 55-75 FT/LBS 3 PLACES TORQUE TO 15-20 FT/LBS 12 PLACES...
Page 23: Deck Assembly
42” DECK ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 1 ... 539 101341 ...2 ... HCS, 3/8-16 X 3, GR5 2 ... 539 103256 ...1 ... SPRING-EXTENSION 3 ... 539 103303 ...2 ... PAD 4 ... 539 103491 ...1 ... DECAL, 42 5 ...
Page 24: 48" Deck Assembly
TORQUE TO 15-20 FT/LBS 12 PLACES TORQUE TO 45-55 FT/LBS 3 PLACES 48” DECK ASSEMBLY TORQUE TO 55-75 FT/LBS 3 PLACES...
Page 25
48” DECK ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 1 ... 539 101341 ...2 ... HCS, 3/8-16 X 3, GR5 2 ... 539 103256 ...1 ... SPRING-EXTENSION 3 ... 539 103303 ...2 ... PAD 4 ... 539 104763 ...8 ... NUT, 5/16-18, RETAINER-U TYPE 5 ...
Page 26: 52" Deck Assembly
TORQUE TO 15-20 FT/LBS 12 PLACES TORQUE TO 45-55 FT/LBS 3 PLACES 52” DECK ASSEMBLY TORQUE TO 55-75 FT/LBS 3 PLACES...
Page 27: Deck Assembly
52” DECK ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 1 ... 539 101099 ...1 ... DECAL 2 ... 539 101341 ...2 ... HCS, 3/8-16 X 3, GR5 3 ... 539 103256 ...1 ... SPRING-EXTENSION 4 ... 539 103303 ...2 ... PAD 5 ...
Page 28: Hydraulic Assembly
HYDRAULIC ASSEMBLY TORQUE TO 19 FT./LBS. TORQUE TO 19 FT./LBS.
Page 29
HYDRAULIC ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 1 ... 539 101173 ... 8 ... NUT, 1/2-20, LUG 2 ... 539 101721 ...4 ... HCS, 5/16-18 X 2 3/4, GR5 3 ... 539 102796 ...2 ... SPRING 4 ... 539 103256 ...1 ... SPRING, EXTENSION 5 ...
Page 30: Decal Assembly
DECAL ASSEMBLY...
Page 31: Decal Assembly
DECAL ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 1 ... 539 101881 ...1 ... DECAL, PROP 65 2 ... 539 103333 ...2 ... DECAL, MOTION CONTROL 3 ... 539 103420 ...1 ... DECAL 4 ... 539 103421 ...1 ... DECAL 5 ... 539 105743 ...2 ... DECAL, EURO NO STOP 6 ...
Page 32: Accessory 42" Mulch Kit
ACCESSORY 42” MULCH KIT 539 11 24 14 ITEM PART NO. QTY. DESCRIPTION 1 ... 539 112346 ...1 ... MULCH CAP 2 ... 539 112419 ...1 ... MULCH BAFFLE 3 ... 539 990208 ...2 ... RHSNB, 5/16-18 X 1, GR5 4 ...
Page 33: Accessory 52" Mulch Kit
ACCESSORY 52” MULCH KIT 539 11 24 15 ITEM PART NO. QTY. DESCRIPTION 1 ... 539 112344 ...1 ... MULCH CAP 2 ... 539 112421 ...1 ... MULCH BAFFLE, LEFT 3 ... 539 112435 ...1 ... MULCH BAFFLE, RIGHT 4 ... 539 990208 ...2 ... RHSNB, 5/16-18 X 1, GR5 5 ...
Page 34: Wiring Diagram
WIRING DIAGRAM 6. Seat unoccupied 8. Blade switch in OFF position 11. Brake switch OFF pos. 14-15. Motion control levers OUT 1. Battery 2. Accessory outlet 3. Key switch 4. To engine pigtail 5. Hour meter 6. Seat switch 7. Run relay 8.
