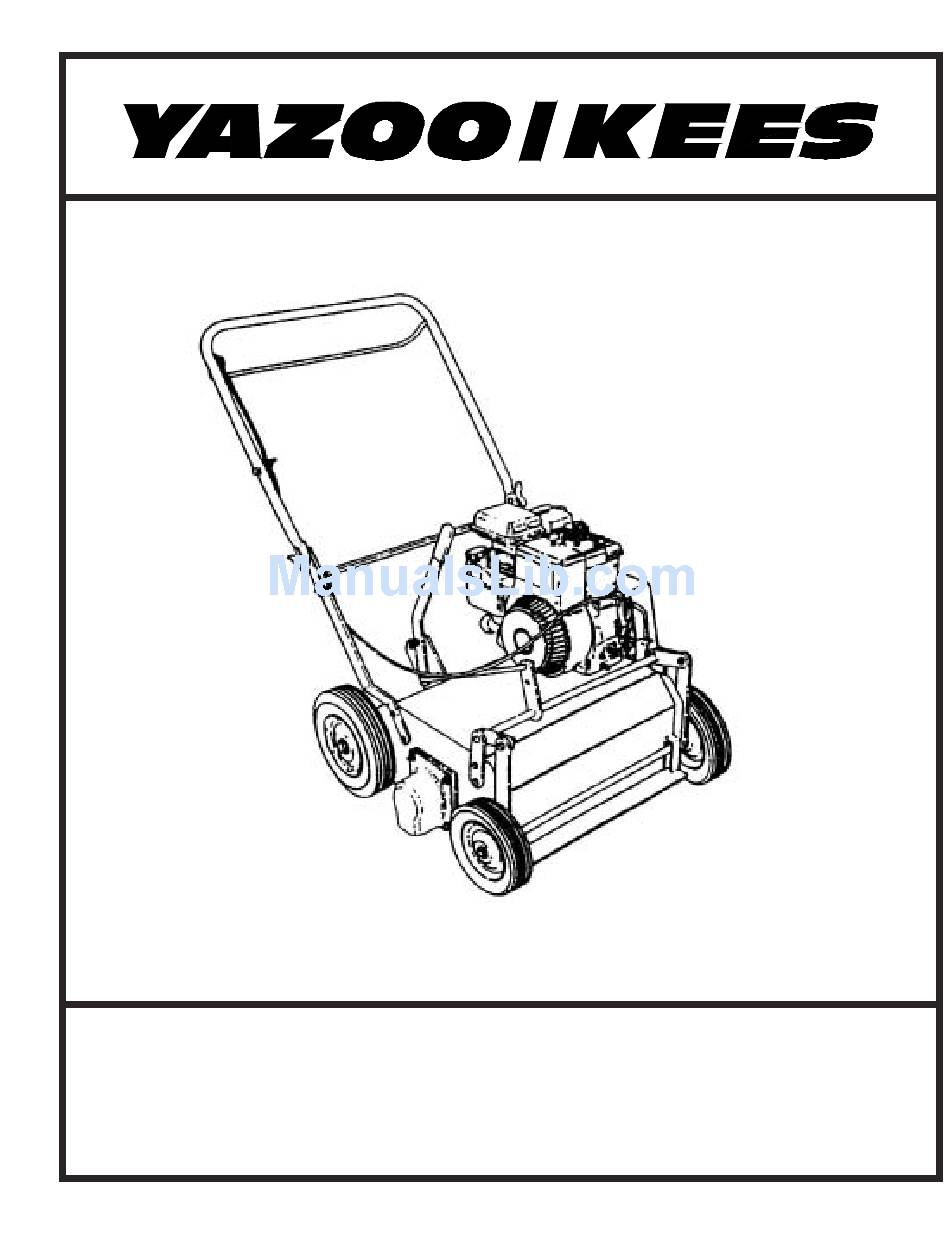

Professional Quality Lawn Care Equipment
since 1945
Thank you for buying a YAZOO/KEES! Before operating your new power rake, read,
understand and follow the important safety instructions and the other instructions con-
tained in this manual. Lawnmowers and all power equipment, can be potentially danger-
ous if used improperly. SAFETY REQUIRES GOOD JUDGEMENT, CAREFUL USE
IN ACCORDANCE WITH INSTRUCTIONS AND COMMON SENSE.
MANUAL No. 100431 REV. 07 (02/19/02)
Safety and Operator's Manual for
MODELS:
RBSIC050
RBSIT550
RBSIT551
SBSIC050
RHON050
Printed in U.S.A.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Yazoo/Kees RBSIC050, RBSIT550, RBSIT551, SBSIC050, RHON050
Summary of Contents for Yazoo/Kees RBSIC050, RBSIT550, RBSIT551, SBSIC050, RHON050
- Page 1 Professional Quality Lawn Care Equipment since 1945 Thank you for buying a YAZOO/KEES! Before operating your new power rake, read, understand and follow the important safety instructions and the other instructions con- tained in this manual. Lawnmowers and all power equipment, can be potentially danger- ous if used improperly.
-
Page 2: Important Safety Instructions
Yazoo/ Kees dealer. Determine if any additional devices are available which might upgrade the safety of your machine. 5. Use only authentic Yazoo/Kees replacement parts to insure the safety of your machine is maintained. CHEMICALS KNOWN TO THE STATE... - Page 3 Figure 1 NOMENCLATURE The nomenclature drawing above (Figure 1) shows the essential parts of the Yazoo/Kees Power Rake/Slicer. It is recommended that all operators of this equipment become thoroughly familiar with the controls, parts and operation of this machine before operating. Specific details involving the engine are found in the seperate engine owner’s manual.
-
Page 4: Before Operating
OPERATING INSTRUCTIONS BEFORE OPERATING: Be thoroughly familiar with all controls and how to use them before operating the Dethatcher/Slicer. Make the following checks and perform the service as required before each start PRE-START CHECK LIST CHECK ENGINE OIL and bring level up to full. (Refer to engine manual for oil specifications). - Page 5 OPERATING INSTRUCTIONS STEP 2: On cold starts, move the CHOKE CONTROL on the engine forward into “CHOKE" position. See Figure 5. Figure 5 STEP 3: Move THROTTLE CONTROL to the “RUN” position. STEP 4: While remaining on right side of unit, place foot on top of right wheel, hold handle bar and pull ROPE STARTER on engine in smooth, steady motion until engine starts.
- Page 6 OPERATING INSTRUCTIONS 1. SET HANDLE BAR in desired position before engaging CLUTCH CONTROL. 2. SET HEIGHT ADJUSTMENT LEVER to desired raking height. 3. SET SPEED by moving THROTTLE CONTROL to desired speed setting. 4. BEGIN dethatching by stepping behind DETHATCHER, lifting “UP”...
- Page 7 Yazoo/Kees Dealer for parts or service assistance. Your Yazoo/Kees Dealer has a complete listing of all components. For engine parts, look for the engine manufacturer’s dealers under the heading ENGINES - gasoline...
-
Page 8: Off-Season Storage
Figure 12 2. Lubricate SATELLITE SHAFTS on DETHATCHER with CLUTCH CONTROL CABLE Lubricate CABLE with oil, graphite or a penetrating- type spray lubricant as required. BELT/CLUTCH ADJUSTMENT Position of Bail when CLUTCH engages, is adjusted by loosening jam nuts on threaded barrel end of CLUTCH CONTROL CABLE, turning jam nuts to desired position, then tightening in new position. - Page 9 Peerless model 700 transmissions (first ninety days warranted by Peerless, remainder by Yazoo/Kees). In the event that any Yazoo/Kees Product warranted hereunder shall be defective or fail to conform with this limited warranty, Yazoo/Kees shall, subject to the provisions hereof, pay for, or provide labor and materials for, the repair or replacement of such defective Yazoo/Kees Product.
- Page 10 LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. This warranty is not subject to change or modification by anyone, including Yazoo/Kees dealers or distributors, and no Yazoo/Kees dealer or distributor is authorized to make any representa- tions on behalf of Yazoo/Kees Power Equipment.
