Yazoo/Kees ZKWQL48190 Parts Manual

Yazoo/Kees ZKWQL48190 Parts Manual

Yazoo/kees lawn mower user manual

Advertisement

Professional Quality Lawn Care Equipment
Yazoo/Kees Power Equipment policy is to improve its products whenever it is
possible and practical to do so. In an effort to keep pace with changes in technology,
Yazoo/Kees reserves the right to make changes or improvements at any time without
incurring any obligation to make such changes on products previously manufactured.
MANUAL 104238 REV. 05 (09/12/00 )
since 1945

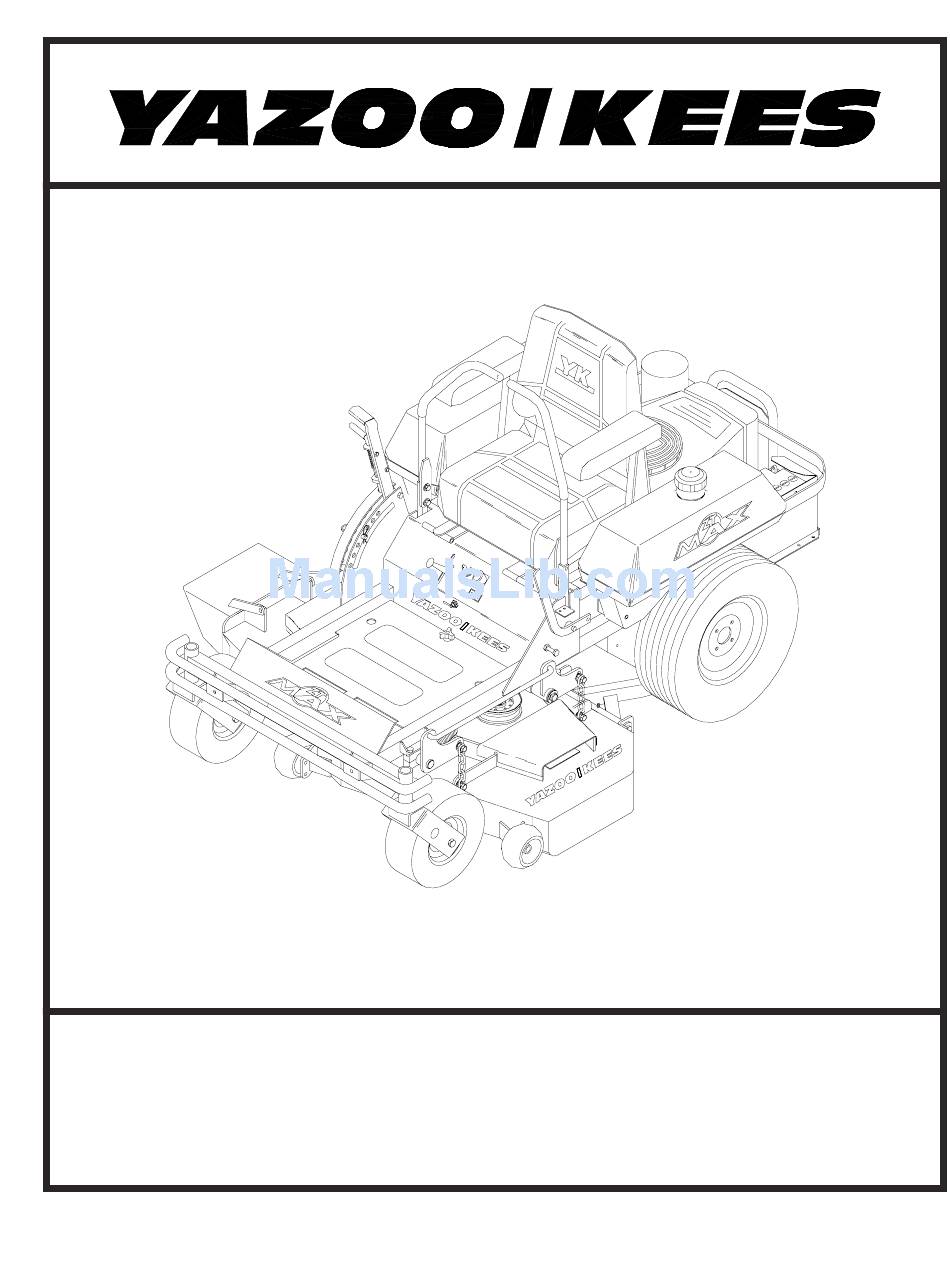

Parts Manual for:
MODELS:
ZKWQL48170
ZKWQL48190

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZKWQL48190 and is the answer not in the manual?

Questions and answers

Summary of Contents for Yazoo/Kees ZKWQL48190

  • Page 1 In an effort to keep pace with changes in technology, Yazoo/Kees reserves the right to make changes or improvements at any time without incurring any obligation to make such changes on products previously manufactured.
  • Page 2 MODEL NUMBER ____________________________________ SERIAL NUMBER ____________________________________ DATE PURCHASED __________________________________ DEALER ADDRESS __________________________________ NOTES:...
  • Page 3: Table Of Contents

    SECTION PAGE HYDRAULIC ASSEMBLY ... 4 & 5 DECK LIFT ASSEMBLY ... 6 & 7 FRAME ASSEMBLY ... 8 & 9 SEAT ASSEMBLY ... 10 & 11 MOTION CONTROL ASSEMBLY ... 12 & 13 PARK BRAKE ASSEMBLY ... 14 & 15 ENGINE DECK ASSEMBLY ...
  • Page 4: Hydraulic Assembly

    HYDRAULIC ASSEMBLY...
  • Page 5 ITEM PART NO. QTY. DESCRIPTION 1..990072 ... 2 ... HCS 1/4C X 5/8 2..990052 ... 2 ... 1/4” LOCKWASHER 3..101238 ... 3 ... F6801-6-6-0 90 DEG. ELBOW 4..103316 ... 1 ... F6400-6-6-0 STRAIGHT FITTING 5.
  • Page 6: Deck Lift Assembly

    DECK LIFT ASSEMBLY...
  • Page 7 ITEM PART NO. QTY. DESCRIPTION 1..101050 ... 1 ... GRIP 2..101082 ... 1 ... 3/16 X 1 ROLL PIN 3..990761 ... 2 ... NUT1/4C CENTER LOCK 4..103534 ... 1 ... PIN MT, UPPER 5.
  • Page 8: Frame Assembly

    FRAME ASSEMBLY...
  • Page 9 25..101872 ... 2 ... SPACER Item 20 Frame W/Decals use p/n 105296 after serial number ZKWQL48170 003000195 and ZKWQL48190 003000200 ITEM PART NO. 26..101907 ... 2 ... HCS 1/2C X 5 1/2 27 ... 103228 ... 2 ... YOKE WELDMENT 28.
  • Page 10: Seat Assembly

    SEAT ASSEMBLY...
  • Page 11 ITEM PART NO. QTY. DESCRIPTION 1..102740 ... 1 ... COMPLETE-SEAT 2..102844 ... 2 ... ARM REST CUSHION 3..102539 ... 1 ... SEAT CUSHION W/SWITCH 4..102492 ... 1 ... DECAL, ZT MAX 5..103288 ... 1 ... SEAT MOUNT 6.
  • Page 12: Motion Control Assembly

    MOTION CONTROL ASSEMBLY...
  • Page 13 ITEM PART NO. QTY. DESCRIPTION 1..104190 ... 2 ... CONTROL LEVER WLDMT 2..102592 ... 2 ... GRIP 3..990563 ... 4 ... HCS 3/8C X 1 4..102593 ... 4 ... 3/8 DISC SPRING WASHER 5.
  • Page 14: Park Brake Assembly

    PARK BRAKE ASSEMBLY...
  • Page 15 ITEM PART NO. QTY. DESCRIPTION 1..101173 ... 8 ... LUG NUT 1/2F 2..103243 ... 2 ... REAR TIRE ASM.(COMPLETE) ... 103497 ... 1 ... TIRE ... 103498 ... 1 ... RIM ... 912234 ... 1 ... VALVE STEM 3.
  • Page 16: Engine Deck Assembly

    ENGINE ASSEMBLY...
  • Page 17 ITEM PART NO. QTY. DESCRIPTION 1..990184 ... 4 ... NUT 5/16C CENTERLOCK 2..106819 ... 1 ... CLUTCH TIE DOWN 4..912757 ... 1 ... KEY 1/4 SQ. X 1 1/4 5..106992 ... 1 ... PULLEY 7.
  • Page 18: Deck Assembly

    DECK ASSEMBLY...
  • Page 19 ITEM PART NO. QTY. DESCRIPTION 1..990582 ... 1 ... HCS 3/8C X 1 SERRATED HEAD 2..990517 ... 9 ... WASHER 3/8 FLAT 3..103257 ... 2 ... IDLER PULLEY 4..103230 ... 1 ... IDLER ARM 5.
  • Page 20: Wiring Assembly

    WIRING ASSEMBLY...
  • Page 21 ITEM PART NO. QTY. DESCRIPTION 1..991034 ... 3 ... #10 X 1/2 SELF TAPPING 2..102914 ... 3 ... RELAY 3..101771 ... 1 ... 7.5 AMP 32 VOLT ATO FUSE 4..102086 ... 1 ... 20 AMP 32 VOLT ATO FUSE 5.
  • Page 22: Frame Decals

    FRAME DECALS...
  • Page 23 Item 1 Frame W/Decals use p/n 105296 after serial number ZKWQL48170 003000195 and ZKWQL48190 003000200 ITEM PART NO. QTY. DESCRIPTION 1..104237 ... 1 ... FRAME W/DECALS ... 105296 ... 1 ... FRAME W/DECALS 2..102506 ... 1 ... DECAL, ZT MAX 3.
