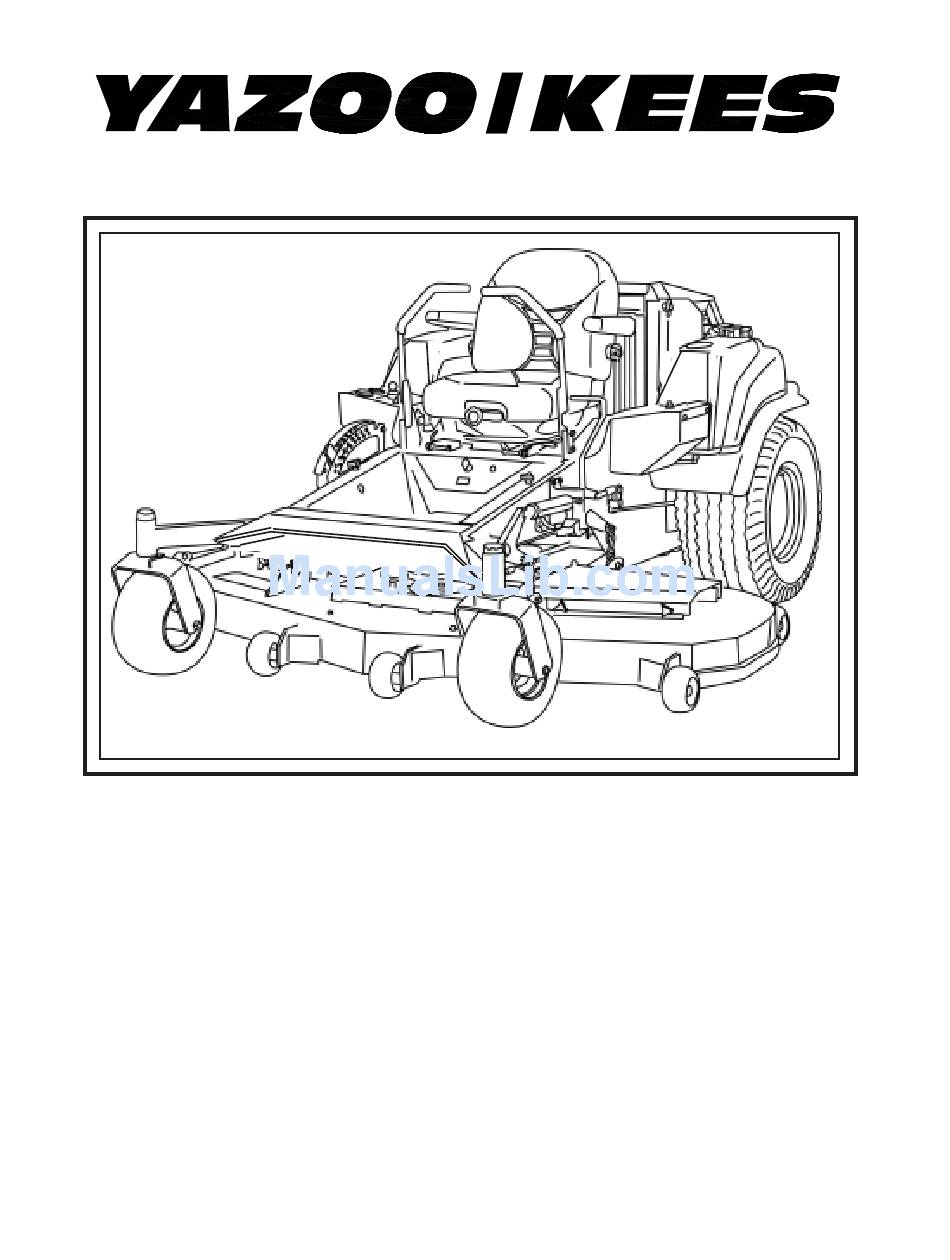

Models:

Parts Manual

ZHDD61270
ZHDD61340
ZHDD72340
For Serial No. 033600000 & Higher
MANUAL NO. 109212 REV. 05 (11/30/04)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZHDD61270 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yazoo/Kees ZHDD61270

Summary of Contents for Yazoo/Kees ZHDD61270

  • Page 1: Parts Manual

    Models: Parts Manual ZHDD61270 ZHDD61340 ZHDD72340 For Serial No. 033600000 & Higher MANUAL NO. 109212 REV. 05 (11/30/04)
  • Page 2 ©2004 Yazoo/Kees Power Equipment. All Rights Reserved. Beatrice, NE. Printed in U.S.A.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PAGE MAIN FRAME ASSEMBLY ... 4 ENGINE ASSEMBLY, 26.5 H.P..6 ENGINE ASSEMBLY, 34 H.P..8 RADIATOR, 26.5 H.P..10 RADIATOR, 34 H.P..11 MOTION CONTROL ... 12 HYDRAULIC ASSEMBLY ... 14 HYDRAULIC HOSES & FITTINGS ... 16 FUEL GROUP ...

  • Page 4: Main Frame Assembly

    MAIN FRAME ASSEMBLY 48 48 23...
  • Page 5 MAIN FRAME ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 1 ... 106206 ... 1 ... Frame w/decals 2 ... 108363 ... 1 ... Panel, back, ... w/decals 3 ... 107852 ... 1 ... Hood 4 ... 107846 ... 1 ... Frame, rear 5 ...

  • Page 6: Engine Assembly, 26.5 H.p

    NOTE: TORQUE TO 45 FT/LBS NOTE: ASSEMBLE WITH SMALL O.D. STEP TOWARD BEARING RIGHT REAR ONLY ENGINE ASSEMBLY 27 H.P. 50 51 NOTE: HUB DOWN NOTE: TORQUE TO 45 FT/LBS...
  • Page 7 ITEM PART NO. QTY. DESCRIPTION 1 ... 111835 ...1 ... Muffler 2 ... 106335 ...1 ... Sheave, engine 3 ... 110668 ...1 ... Clutch 4 ... 110654 ...1 ... Restraint 5 ... 106306 ...1 ... Jack mount 6 ... 107864 ...1 ... Shield, heat 7 ...

  • Page 8: Engine Assembly, 34 H.p

    NOTE: TORQUE TO 45 FT/LBS NOTE: ASSEMBLE WITH SMALL O.D. STEP TOWARD BEARING RIGHT REAR ONLY ENGINE ASSEMBLY 34 H.P. NOTE: HUB DOWN NOTE: TORQUE TO 45 FT/LBS...
  • Page 9 ENGINE ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 1 ... 111834 ...1 ... Muffler 2 ... 106335 ...1 ... Sheave, engine 3 ... 110668 ...1 ... Clutch 4 ... 110654 ...1 ... Restraint 5 ... 106306 ...1 ... Jack mount 6 ... 107864 ...1 ... Shield, heat 7 ...

  • Page 10: Radiator, 26.5 H.p

    ITEM PART NO. 1 ... 106310 ...4 ... Isolator 2 ... 990052 ...4 ... Lockwasher, 1/4 3 ... 990187 ...2 ... Lockwasher, 5/16 4 ... 107855 ...1 ... Bracket, mounting 5 ... 106308 ...1 ... Spacer, fan 6 ... 106316 ...1 ... Radiator 7 ...

  • Page 11: Radiator, 34 H.p

    RADIATOR ITEM PART NO. 1 ... 106310 ...4 ... Isolator 2 ... 990052 ...4 ... Lockwasher, 1/4 3 ... 990187 ...2 ... Lockwasher, 5/16 4 ... 107855 ...1 ... Bracket, mounting 5 ... 107995 ...1 ... Spacer, fan 6 ... 106316 ...1 ... Radiator 7 ...

  • Page 12: Motion Control

    MOTION CONTROL...
  • Page 13 MOTION CONTROL ITEM PART NO. QTY. DESCRIPTION 1 ... 104190 ...2 ... Handle 2 ... 102809 ...2 ... Arm, control shaft 3 ... 106687 ...2 ... Control lever extension 4 ... 102593 ...8 ... Washer, 3/8, spring 5 ... 107837 ...2 ... Pump linkage bar 6 ...

  • Page 14: Hydraulic Assembly

    HYDRAULIC ASSEMBLY TO ENGINE BLOCK PORT NOTE: FOR WHEEL MOUNTING NUTS SEE BRAKE GROUP LINKAGE...
  • Page 15 HYDRAULIC ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 1 ... 106333 ...2 ... Pump 2 ... 106334 ...2 ... Sheave, pump 3 ... 102716 ...4 ... Setscrew, 5/16-18 x 1 4 ... 109178 ...2 ... Key, metric 5 ... 106356 ...1 ... Cooler 6 ...

  • Page 16: Hydraulic Hoses & Fittings

    HYDRAULIC HOSES AND FITTINGS TO COOLER NOTE: ARROW ON FILTER HEAD FOR CORRECT DIRECTION OF FLOW...
  • Page 17 HYDRAULIC HOSES AND FITTINGS ITEM PART NO. QTY. DESCRIPTION 1 ... 105892 ...1 ... Filter head 2 ... 105893 ...1 ... Filter 3 ... 105168 ...1 ... Cap nut, reservoir drain 4 ... 101237 ...3 ... Straight connector 5 ... 106357 ...4 ... Fitting, wheel motors 6 ...

  • Page 18: Fuel Group

    FUEL GROUP TANK RETURN TO FUEL PUMP INLET TO FUEL PUMP RETURN...
  • Page 19 FUEL GROUP ITEM PART NO. QTY. DESCRIPTION 1 ... 106192 ...1 ... Fuel tank, left 2 ... 106193 ...1 ... Fuel tank, right 3 ... 105245 ...2 ... Grommet, rubber 4 ... 102650 ...2 ... Hose barb, 90° 5 ... 976934 ...12 ... Bolt, 5/16-18 x 3/4 6 ...

  • Page 20: Brake Group Linkage

    BRAKE GROUP LINKAGE 15 16 25 26 13 24 FOR BRAKE COMPONENTS SEE HYDRAULIC ASSEMBLY...
  • Page 21 BRAKE GROUP LINKAGE ITEM PART NO. QTY. 1 ... 104327 ...2 ... Standoff, wheel motor 2 ... 101173 ...8 ... Nut, 1/2, lug 3 ... 106523 ...1 ... Brake arm 4 ... 106526 ...1 ... Brake lever 5 ... 102519 ...2 ... Bushing, bronze 6 ...

  • Page 22: Seat Assembly

    SEAT ASSEMBLY...
  • Page 23 SEAT ASSEMBLY ITEM PART NO. QTY. 1 ... 108360 ...1 ... Seat mount 2 ... 105038 ...1 ... Bracket w/decal, seat 3 ... 105039 ...4 ... Stud plate mount 4 ... 103247 ...2 ... Seat lanyard 5 ... 107859 ...1 ... Seat suspension 6 ...

  • Page 24: Foot Pedal

    FOOT PEDAL ITEM PART NO. QTY. DESCRIPTION 1 ... 976979 ...3 ... Nut, 3/8-16, nyloc 2 ... 105184 ...1 ... Plate, tighting 3 ... 105181 ...1 ... Pedal, lift 4 ... 105187 ...1 ... Pad, anti-skid 5 ... 990655 ...3 ... Bolt 3/8-16 x 1 1/2...

  • Page 25: Caster Assembly

    CASTER ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 1 ... 105517 ...1 ... Bolt, 1/2-13 x 9 1/2, GD. 5 2 ... 107664 ...1 ... Yoke, caster 3 ... 105518 ...2 ... Spacer, axle 4 ... 105521 ...1 ... Tire & wheel assembly 5 ...

  • Page 26: Deck Lift 26.5 H.p

    DECK LIFT MANUAL 30 8 15 16 34 35...
  • Page 27 DECK LIFT MANUAL ITEM PART NO. QTY. DESCRIPTION 108354 ...1 ... Shaft, lift 1 ... 2 ... 108355 ...1 ... Shaft, lift, front 3 ... 101982 ...3 ... Eyebolt, right 4 ... 101802 ...1 ... E-ring, 7/8 5 ... 101232 ...2 ... Bushing, flanged-PM 6 ...

  • Page 28: Deck Lift 34 H.p

    DECK LIFT POWER 14 15 15 16...
  • Page 29 DECK LIFT POWER ITEM PART NO. QTY. DESCRIPTION 1 ... 108354 ...1 ... Shaft, lift 2 ... 107134 ...1 ... Shaft, lift, front 3 ... 101982 ...3 ... Eyebolt, right 4 ... 101802 ...1 ... E-ring, 7/8 5 ... 101232 ...2 ... Bushing, flanged-PM 6 ...

  • Page 30: Deck Assembly, 61

    DECK ASSEMBLY 19 20 61 INCH NOTE: TORQUE TO 90 FT/LBS 3 PLACES NOTE: TORQUE TO 45 FT/LBS NOTE: TORQUE TO 45 FT/LBS 3 PLACES...

  • Page 31: Deck Assembly

    ITEM PART NO. QTY. DESCRIPTION 1 ... 106219... 1 ... 61" Deck w/decals 2 ... 107278... 3 ... Pulley 4 ... 990209... 18 ... Bolt, 5/16-18 x 1 5 ... 990184... 25 ... Nut, 5/16-18, ... centerlock 6 ... 106504... 5 ... Washer, heavy 7 ...

  • Page 32: Deck Assembly, 72

    NOTE: TORQUE TO 45 FT/LBS LOCATED UNDERNEATH DECK ON CENTER GUSSET DECK ASSEMBLY 72 INCH NOTE: TORQUE TO 45 FT/LBS 3 PLACES NOTE: TORQUE TO 90 FT/LBS 3 PLACES...
  • Page 33 ITEM PART NO. QTY. DESCRIPTION 1 ... 106220... 1 ... 72" Deck w/decals 2 ... 102643... 8 ... Anti-scalp roller 3 ... 102698... 8 ... Bushing 4 ... 102754... 6 ... Bolt, 3/8-16 x 3 1/2 5 ... 105422... 1 ... Bolt, 3/8-16 x 6, Gd. 8 6 ...

  • Page 34: Decals

    DECALS...
  • Page 35 12 ... 105334 ...1 ... Decal, Fuel valve 13 ... 104899 ...1 ... Decal, Height indication 14 ... 104898 ...1 ... Decal, Height indication 15 ... 103420 ...1 ... Decal, Yazoo/Kees 16 ... 102063 ...1 ... Decal, Commercial 17 ... 107053 ...1 ... Decal, YK 18 ...

  • Page 36: Electrical Group

    ELECTRICAL GROUP...
  • Page 37 ELECTRICAL GROUP ITEM PART NO. QTY. 1 ... 102423 ...1 ... Battery 2 ... 108016 ...1 ... Hourmeter, LCD w/flash alert 3 ... 101770 ...1 ... Switch, ignition 4 ... 103177 ...1 ... Nut, ignition switch 5 ... 103178 ...1 ... Cap, ignition switch nut 6 ...

  • Page 38: Wire Harness

    TO STARTER TO GLOW PLUGS TO FUEL SOLENOID TO OIL PRESSURE SENDER ELECTRIC CLUTCH TO WATER TEMPERATURE SENDER TO RELAYS OIL PRESSURE GAUGE GAUGE TEMPERATURE GAUGE ITEM PART NO. 1 ... 106390 ...1 ... Harness, engine, diesel 2 ... 107941 ...1 ... Cable, postive 3 ...
  • Page 39 WIRE HARNESS GAUGE WIRING VIEWED FROM TERMINAL SIDE TEMPERATURE PRESSURE GAUGE GAUGE GAUGE MOWER FRONT REAR RELAYS MOWER FRONT RIGHT SIDE LEFT FUSES RIGHT MOWER FRONT...

  • Page 40: Wiring Schematic

    WIRING SCHEMATIC...
  • Page 41 WIRING SCHEMATIC...
